Paxton 010-158-US Pro Series 8MP Mini Bullet Camera, 2.8mm, White

SKU: 010-158-US Paxton

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

NULL

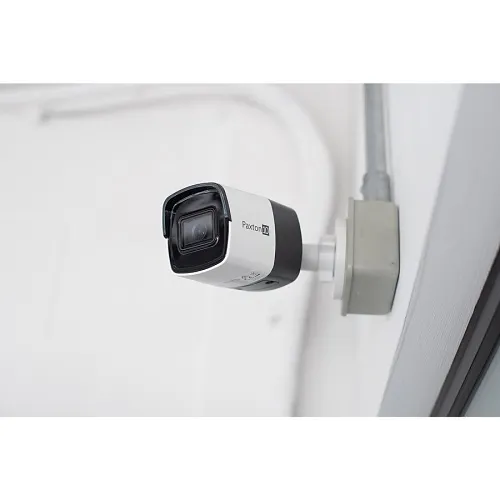

Product images for Paxton 010-158-US Pro Series 8MP Mini Bullet Camera, 2.8mm, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver crystal-clear identification with 8MP (4K) resolution for reliable evidence and improved situational awareness
  • Built-in 256GB edge storage and centralized recording options to reduce network load and ensure continuous capture
  • Robust IP67 weatherproof and IK10 vandal-resistant housing for dependable indoor/outdoor deployment
  • Outstanding low-light sensitivity (0.01 Lux) for usable night monitoring and extended hours of protection
  • Wide 102° field of view with 2.8mm fixed lens to cover entryways and perimeters with fewer cameras
  • Embedded Paxton10 VMS and remote management simplify installation, configuration, and ongoing monitoring

Quick Specifications

Brand Name
Paxton
Manufacturer
Paxton Access Ltd.
Product Line
Paxton10
Product Name
Paxton10 Mini Bullet Camera - PRO Series
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for perimeter and entryway surveillance, the Paxton 010-158-US Pro Series 8MP Mini Bullet Camera by Paxton delivers high-resolution video and dependable operation in demanding environments. This mini bullet camera provides 8MP (4K) clarity and a wide 102° field of view from its 2.8mm lens, making it ideal for identifying people and vehicles across parking areas, loading docks, or building entrances. With industry-leading low-light performance (0.01 Lux) and built-in 256GB on-camera storage, you get continuous local recording and reduced dependence on network bandwidth. The hardened IP67 and IK10-rated housing ensures weatherproof, dustproof and vandal-resistant protection, so your surveillance system stays online in harsh conditions. Embedded Paxton10 video management software and remote management capabilities simplify deployment and day-to-day monitoring for security teams. Backed by a 5-year limited warranty, this Paxton mini bullet camera is purpose-built for commercial security, monitoring and evidence capture. Contact our sales team for site-specific recommendations or add the Paxton 010-158-US to your next security upgrade.

Features

  • Deliver crystal-clear identification with 8MP (4K) resolution for reliable evidence and improved situational awareness
  • Built-in 256GB edge storage and centralized recording options to reduce network load and ensure continuous capture
  • Robust IP67 weatherproof and IK10 vandal-resistant housing for dependable indoor/outdoor deployment
  • Outstanding low-light sensitivity (0.01 Lux) for usable night monitoring and extended hours of protection
  • Wide 102° field of view with 2.8mm fixed lens to cover entryways and perimeters with fewer cameras
  • Embedded Paxton10 VMS and remote management simplify installation, configuration, and ongoing monitoring
General Information
Brand Name Paxton
Manufacturer Paxton Access Ltd.
Product Line Paxton10
Product Name Paxton10 Mini Bullet Camera - PRO Series
Product Type Network Camera
Product Series Pro
Manufacturer Part Number 010-158-US
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264
Maximum Aperture f/1.6
Maximum Frame Rate 20fps
Video Signal Format NTSC, PAL
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 102°
Field of View (Horizontal) 102°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 131.23 ft
Certifications
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -22°F (-30°C)
Interfaces/Ports
Network (RJ-45) No
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 6.7"
Width 2.8"
Height 2.7"
Weight 1.10lb
Durability Dustproof, Impact Resistant, Waterproof, Weather Resistant
Form Factor Mini Bullet
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Built-in Card Reader, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Indoor
Country of Origin GB
Impact Protection Rating IK10
