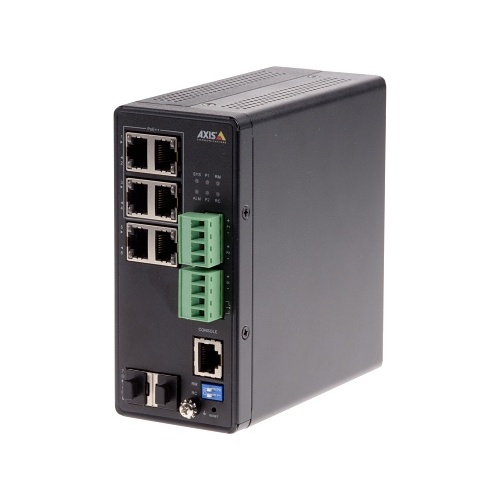

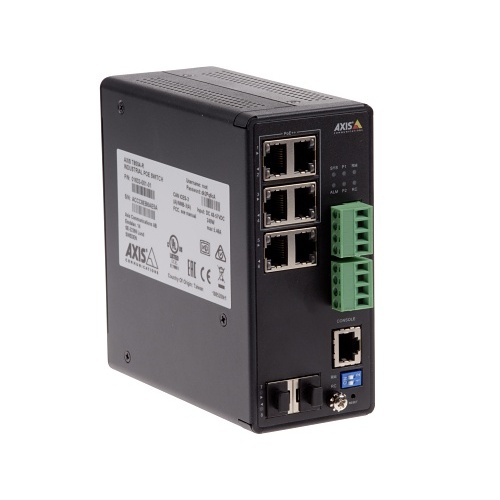

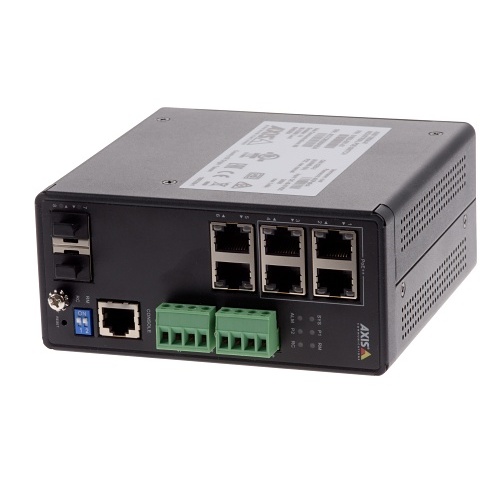

AXIS T8504-R 4-Port Managed Industrial PoE++ Gigabit Switch
Image of 4
Key Features
- Delivers reliable high-power PoE++ to cameras and devices: up to 60 W per port and a 240 W total budget keeps multi-camera surveillance systems running without separate power supplies.
- Built for harsh environments: industrial-grade design withstands -40 °C to 75 °C, shock and vibration for dependable operation in tunnels, highways and outdoor enclosures.
- Flexible connectivity and uplinks: four Gigabit RJ45 ports plus two SFP slots provide fiber uplink options and easy integration into long-distance monitored networks.
- Maximize uptime: dual DC power inputs and Rapid Ring support ensure high availability for critical security and monitoring installations.
- Managed, secure network operations: intuitive Axis management interface, advanced switching features and compliance with industry security standards simplify deployment and maintenance.
Quick Specifications
- Product Model
- T8504-R
- Brand Name
- AXIS Communications
- Product Line
- T
- Product Name
- AXIS T8504-R INDUSTRIAL POE SWITCH
Frequently Bought Together
AXIS T8504-R 4-Port Managed Industrial PoE++ Gigabit Switch
$863.83
3 items selected
Total: $1,089.31
Explore the details
Product information
01633-001
Overview
For demanding security and surveillance installations, the AXIS T8504-R delivers rugged, high-power managed switching that keeps video and monitoring systems online. This Axis Communications industrial PoE++ network switch provides four Gigabit ports with up to 60 W per port and a 240 W PoE budget, plus two SFP slots for fiber uplinks—perfect for connecting multiple IP cameras and recorders without separate power supplies. Rated for -40 °C to 75 °C and built to withstand shock and vibration, the T8504-R is ideal for roadside cabinets, tunnels, transit hubs and outdoor enclosures. Dual DC power redundancy and Rapid Ring support enhance network availability so critical security streams remain uninterrupted. The familiar AXIS T85 series management interface simplifies configuration and monitoring, while robust certifications (NEMA TS-2, EN 50121-4) ensure compliance in transportation and infrastructure projects. Choose the AXIS T8504-R when you need a compact, reliable managed switch that prioritizes uptime and simplifies surveillance deployments—contact sales or add to your project for dependable networked security and monitoring.
Features
- Delivers reliable high-power PoE++ to cameras and devices: up to 60 W per port and a 240 W total budget keeps multi-camera surveillance systems running without separate power supplies.
- Built for harsh environments: industrial-grade design withstands -40 °C to 75 °C, shock and vibration for dependable operation in tunnels, highways and outdoor enclosures.
- Flexible connectivity and uplinks: four Gigabit RJ45 ports plus two SFP slots provide fiber uplink options and easy integration into long-distance monitored networks.
- Maximize uptime: dual DC power inputs and Rapid Ring support ensure high availability for critical security and monitoring installations.
- Managed, secure network operations: intuitive Axis management interface, advanced switching features and compliance with industry security standards simplify deployment and maintenance.
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | T |
| Product Name | AXIS T8504-R INDUSTRIAL POE SWITCH |
| Product Type | Network Switches |
| Product Model | T8504-R |
| Product Series | T85 |
| Country of Origin | TW |
| Manufacturer Part Number | 01633-001 |
| Technical Information | |
| Power Consumption | 60.0000W |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 62236-4, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | -40-75°C |
| I/O Expansions | |
| Number of SFP Slots | 2 |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Output Ports | 4 x 10/100/1000Base-T |
| Total Number of Network Ports | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Security Features | IEC/EN 60950-1, IEC/EN 62368-1, UL 60950-1 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-TX |
| Network & Communication | |
| Ethernet Technology | 10 Mbps (Ethernet) |
| Networking Standards | IEEE 802.3at |
| Physical Characteristics | |
| Color | Black |
| Depth | 5.10" |
| Width | 2.40" |
| Height | 5.30" |
| Material | Aluminum |
| Power Description | |
| PoE Budget | 240W |
| Power Source | PoE (Power over Ethernet) |
| Input Voltage | 48-57V DC |
| Maximum Output Power | 240.00W |
| Maximum Power Consumption | 10.00W |
| Product Information | |
| Mount Type | Desktop Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | IEC 60068-2-27, IEC 60068-2-6, NEMA TS 2 (2.2.7-2.2.9) |
