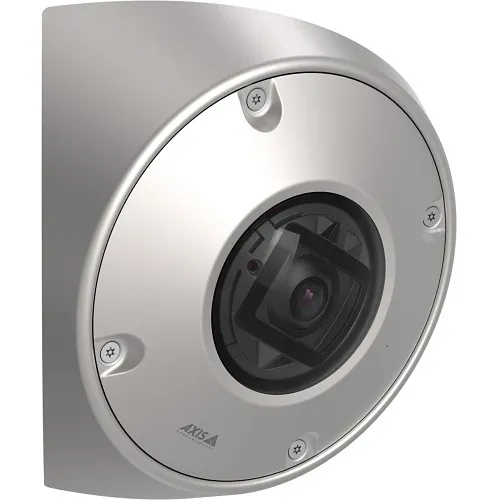

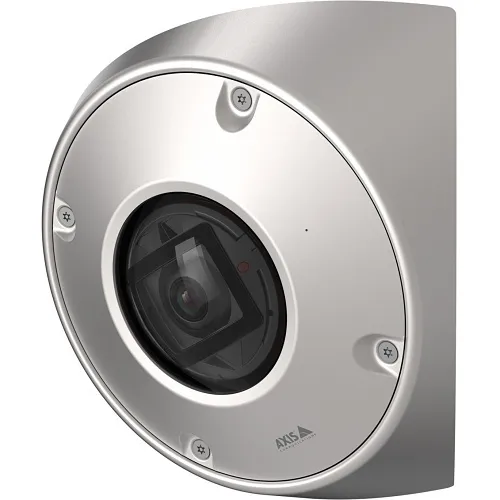

AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel

SKU: 01766-001 Axis Communications
Image of Z4-01766001
Product images for AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Ligature‑resistant, corner‑mount design minimizes blind spots and reduces self-harm risks in high‑security environments.
  • Heavy‑duty stainless‑steel housing with IK11 impact protection and IP66/IP69K rating for reliable outdoor and institutional durability.
  • 4MP resolution with a 2.4mm wide‑angle lens and WDR for clear, actionable imagery across bright and low‑light conditions.
  • Invisible 940 nm IR and low‑light sensitivity (0.05 lux) deliver discreet night monitoring without visible glow or disturbance.
  • PoE support, H.264/H.265 with Zipstream, and local SD storage reduce bandwidth and simplify installation and network surveillance management.

Quick Specifications

Product Model
Q9216-SLV
Brand Name
AXIS Communications
Product Line
Q
Product Name
AXIS Q9216-SLV STEEL
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel

AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel

$1,337.45

Frequently Bought Together (3 items)

4 items selected

Total: $2,799.46

Product Information Tabs

Overview

Designed for demanding security and monitoring use cases, the AXIS Q9216-SLV stainless‑steel corner dome camera from Axis Communications delivers continuous, reliable surveillance where safety and durability matter most. This ligature‑resistant, corner‑mounted dome camera provides full coverage of corridors and rooms to eliminate blind spots — ideal for prisons, psychiatric wards, and other high‑risk facilities. Capture detailed evidence with 4MP effective resolution and a 2.4mm wide‑angle lens while Wide Dynamic Range (WDR) maintains clarity in scenes with challenging lighting. Invisible 940 nm IR and low‑light sensitivity ensure discreet night monitoring without visible illumination. Built to withstand vandalism and harsh environments, the IK11 impact rating and IP66/IP69K protection keep the camera operational outdoors and in rigorous institutional settings. Network-friendly features like PoE, H.264/H.265 with Zipstream, and onboard memory support help lower bandwidth and storage costs while simplifying installation. For secure, continuous surveillance and monitoring in critical facilities, specify the AXIS Q9216-SLV — contact us to discuss deployment options or to order.

Features

  • Ligature‑resistant, corner‑mount design minimizes blind spots and reduces self-harm risks in high‑security environments.
  • Heavy‑duty stainless‑steel housing with IK11 impact protection and IP66/IP69K rating for reliable outdoor and institutional durability.
  • 4MP resolution with a 2.4mm wide‑angle lens and WDR for clear, actionable imagery across bright and low‑light conditions.
  • Invisible 940 nm IR and low‑light sensitivity (0.05 lux) deliver discreet night monitoring without visible glow or disturbance.
  • PoE support, H.264/H.265 with Zipstream, and local SD storage reduce bandwidth and simplify installation and network surveillance management.
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line Q
Product Name AXIS Q9216-SLV STEEL
Product Type Fixed dome cameras
Product Model Q9216-SLV
Product Series Q92
Manufacturer Part Number 01766-001
Supported Network Protocols IPv6 USGv6, NIST SP500-267
Technical Information
Aperture f/2.1
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Lens Mount Type M12
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Built-in Microphone Yes
Minimum Focal Length 2.4mm
Connectivity Technology Wired
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP6K9K
Display & Graphics
Image Sensor Size 1/2.5"
Maximum Video Resolution 2304 x 1728
Environmental Conditions
Operating Humidity 0.85
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Exposure
Minimum Illumination 0.05 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/32500 Second
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Lens
Focal Length 2.4mm
Lens Included Yes
Maximum Focal Length 2.4mm
Memory
Memory Card Supported Yes
Network & Communication
Remote Management Yes
Others
Model Number Replaces 0709-001, 0710-001
Physical Characteristics
Color Silver
Depth 6.9"
Width 8.2"
Height 5.2"
Weight 3.53 lb
Durability Vandal Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Maximum Power Consumption 11W
Power over Ethernet (PoE) Yes
Product Information
Length 6.9"
Mount Type Conduit Mount, Corner Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Certifications EN 50130-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Country of Origin PL
Impact Protection Rating IK11
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP69, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X
