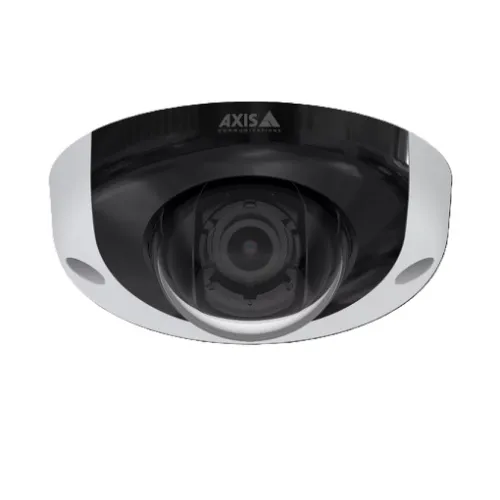

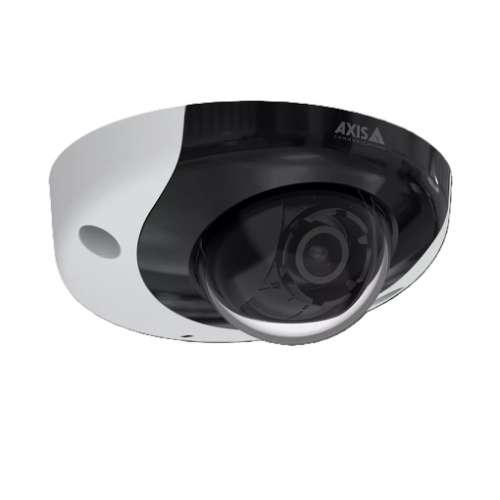

AXIS P3935-LR P39 Series 1080p HDTV Vandal Resistant Onboard IR WDR IP Camera, 2.8mm Lens, Black and White
Key Features
- Purpose-built for onboard and mobile surveillance, delivering reliable 1080p monitoring in vehicles and transit environments
- Robust IK10 vandal-resistant metal dome with IP66/IP67 weatherproofing to protect equipment and reduce maintenance costs
- Axis Lightfinder and Forensic WDR ensure usable color and detail in low light and high-contrast scenes for better evidence capture
- Invisible 940 nm IR and 2.8 mm wide-angle lens provide discreet night vision up to ~49 ft for continuous 24/7 security
- Compliant with EN50155, EN45545 and NFPA 130 for transit use, with PoE and advanced cybersecurity features to simplify installation and secure networked systems
Quick Specifications
- Brand Name
- AXIS Communications
- Manufacturer
- Axis Communications
- Product Line
- P
- Product Name
- AXIS P3935-LR
Product Information Tabs
Overview
Built for continuous security in transit and fleet applications, the AXIS P3935-LR from Axis Communications is a mobile IP camera that keeps vehicles monitored 24/7. This dashboard/onboard camera delivers Full HD 1080p video with a 2.8 mm wide-angle lens, combined with Axis Lightfinder and Forensic WDR to preserve color and detail in low light and high-contrast conditions. The unit’s invisible 940 nm IR lets you capture clear night footage up to approximately 49 ft without visible illumination, while EIS and audio detection improve forensic value of recordings. Housed in an IK10-rated metal dome with IP66/IP67 ingress protection, the camera stands up to vandalism, dust and harsh weather—reducing downtime and lifecycle costs. Engineered to meet EN50155, EN45545 and NFPA 130 standards and supporting PoE, ONVIF and hardened network security, it integrates easily into enterprise video management systems for scalable surveillance and monitoring. Ideal for buses, trains, police and commercial fleets, the AXIS P3935-LR offers rugged, compliant onboard surveillance—contact sales to specify for your transit or fleet security project.
Features
- Purpose-built for onboard and mobile surveillance, delivering reliable 1080p monitoring in vehicles and transit environments
- Robust IK10 vandal-resistant metal dome with IP66/IP67 weatherproofing to protect equipment and reduce maintenance costs
- Axis Lightfinder and Forensic WDR ensure usable color and detail in low light and high-contrast scenes for better evidence capture
- Invisible 940 nm IR and 2.8 mm wide-angle lens provide discreet night vision up to ~49 ft for continuous 24/7 security
- Compliant with EN50155, EN45545 and NFPA 130 for transit use, with PoE and advanced cybersecurity features to simplify installation and secure networked systems
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | P |
| Product Name | AXIS P3935-LR |
| Product Type | Fixed dome cameras |
| Product Model | P3935-LR |
| Product Series | P39 |
| Manufacturer Part Number | 01919-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.6 |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Lens Mount Type | M12 |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Built-in Microphone | Yes |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.9" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Operating Temperature (T-T) | -40-131°F |
| Maximum Operating Temperature | 158°F (70°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/33500 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 01074-001, 01074-021, 01074-031, 01075-001, 01075-021, 01075-031 |
| Physical Characteristics | |
| Color | Black, White |
| Height | 1.9" |
| Weight | 14.11oz |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 12W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Diameter | 4.3" |
| Mount Type | Pendant Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Audio Detection, Built-in IR LED, Built-in Microphone, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm |
| Certifications | EAC, ECE R10 rev.05 (?E-ma?rk), ECE R10 rev.05 (?E-ma?rk), EN 50121-3-2, EN 50121-4, EN 50498, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | JP |
| Impact Protection Rating | IK10 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10 |
