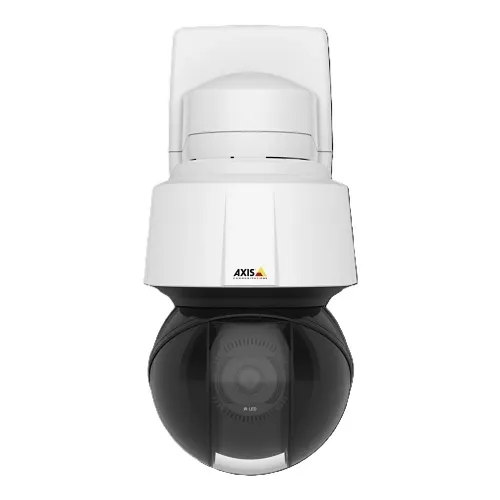

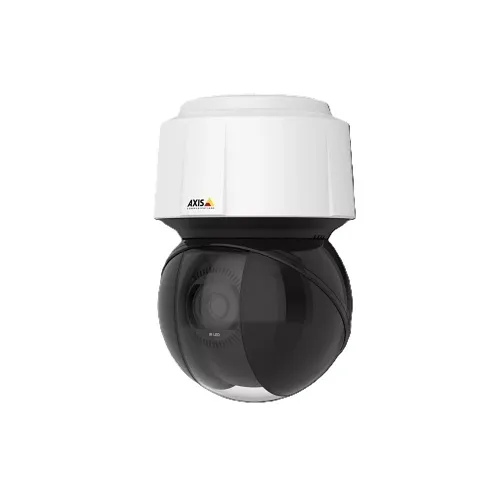

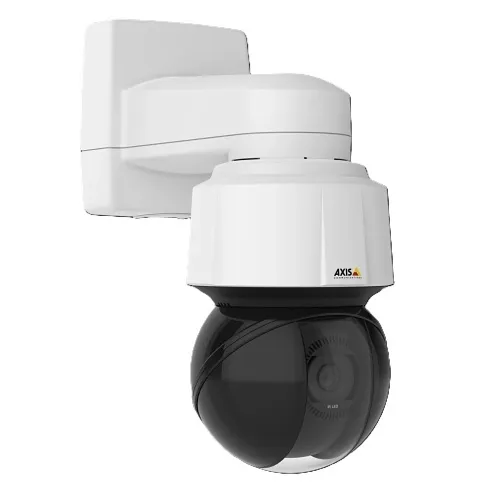

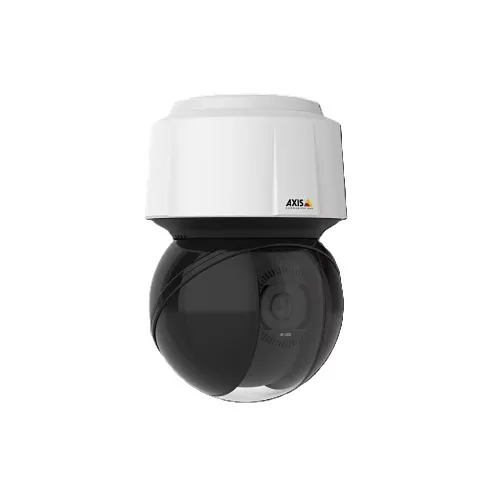

AXIS Q6135-LE Q61 Series 1080p HDTV PTZ IR IP Camera, 32x Optical Zoom, White (Replaces Q6115-E)
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Extend perimeter visibility with OptimizedIR up to 250 m, enabling dependable night-time surveillance and faster incident detection.
- Capture and identify details at long range with HDTV 1080p resolution and 32x optical zoom — reduces false alarms and improves evidence quality.
- Maintain clear images in challenging light using Lightfinder 2.0 and Sharpdome technology for consistent image quality above and below the horizon.
- Reduce operator workload with Autotracking 2, orientation aid and click-to-track controls for automated target follow and rapid response.
- Hardened outdoor design (IP66, IK08, -50°C to 50°C) and secure boot/TPM protect camera operation in harsh environments and meet cybersecurity requirements.
- Efficient network operation with Axis Zipstream and H.264/H.265 support plus PoE for simplified installation and lower bandwidth/storage costs.
Quick Specifications
- Product Model
- Q6135-LE
- Brand Name
- AXIS Communications
- Product Line
- Q
- Product Name
- AXIS Q6135-LE 60HZ US
Frequently Bought Together
AXIS Q6135-LE Q61 Series 1080p HDTV PTZ IR IP Camera, 32x Optical Zoom, White (Replaces Q6115-E)
12 items selected
Total: $6,014.46
Product Information Tabs
Overview
Designed for demanding outdoor security and critical infrastructure monitoring, the AXIS Q6135-LE from Axis Communications is a high-performance PTZ camera that delivers long-range, reliable surveillance both day and night. Combining HDTV 1080p resolution with 32x optical zoom, this IP camera lets operators identify vehicles and persons at distance while OptimizedIR extends clear night vision to approximately 250 m. Lightfinder 2.0 ensures sharp, color-rich images in low-light scenes, and Sharpdome preserves image quality even when viewing 20° above the horizon.
Built for real-world deployments, the Q6135-LE includes Autotracking 2 and orientation aid for automated target following and faster incident response, plus rugged IP66/IK08-rated housing for all-weather operation. Network-friendly features such as Axis Zipstream with H.264/H.265 support and PoE simplify installation and lower storage and bandwidth demands. Security-conscious organizations benefit from signed firmware, secure boot and TPM for enhanced device integrity. Ideal for perimeter security, transportation hubs, ports and city surveillance — add the AXIS Q6135-LE to your monitoring solution to improve detection, reduce response times and strengthen evidence capture.
Features
- Extend perimeter visibility with OptimizedIR up to 250 m, enabling dependable night-time surveillance and faster incident detection.
- Capture and identify details at long range with HDTV 1080p resolution and 32x optical zoom — reduces false alarms and improves evidence quality.
- Maintain clear images in challenging light using Lightfinder 2.0 and Sharpdome technology for consistent image quality above and below the horizon.
- Reduce operator workload with Autotracking 2, orientation aid and click-to-track controls for automated target follow and rapid response.
- Hardened outdoor design (IP66, IK08, -50°C to 50°C) and secure boot/TPM protect camera operation in harsh environments and meet cybersecurity requirements.
- Efficient network operation with Axis Zipstream and H.264/H.265 support plus PoE for simplified installation and lower bandwidth/storage costs.
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | Q |
| Product Name | AXIS Q6135-LE 60HZ US |
| Product Type | PTZ cameras |
| Product Model | Q6135-LE |
| Product Series | Q61 |
| Manufacturer Part Number | 01959-004 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.4-4.0 |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 32x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.4 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.3mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 820.21 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -58°F (-50°C) |
| Exposure | |
| Minimum Illumination | 0.008 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/66500 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.3-137.6mm |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Focal Length | 137.6mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 01234-004 |
| Physical Characteristics | |
| Color | White |
| Height | 9.5" |
| Weight | 6.61lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 240V AC |
| Maximum Power Consumption | 51W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Diameter | 6.5" |
| Mount Type | Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Alarm Detection, Auto Tracking, Built-in IR LED, Cross Line Detection, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage |
| Certifications | EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q6135-LE PTZ Network Camera IP66-rated RJ45 connector kit AXIS High PoE 60 W SFP Midspan Installation guide Windows Decoder 1-User licence |
| Country of Origin | PL |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK08 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
