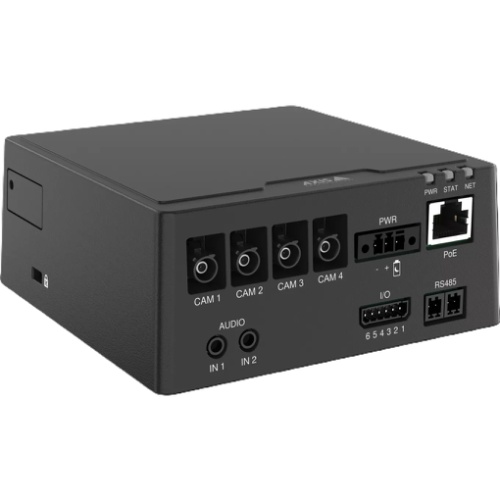

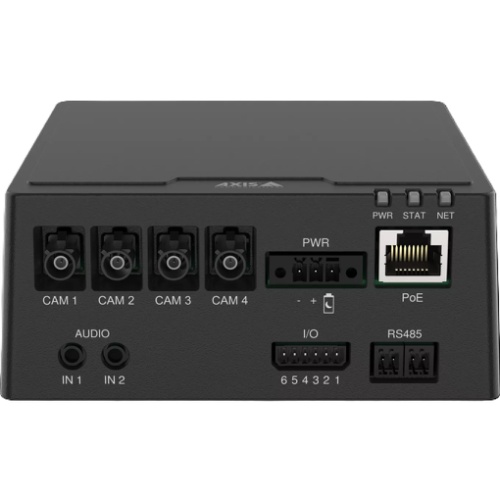

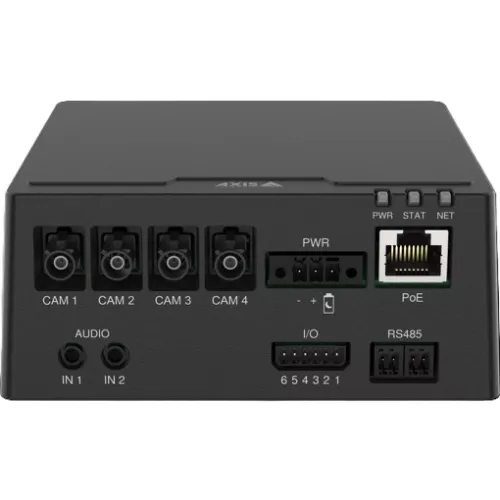

AXIS F9114 Series 2MP 4-channel Main Unit with Audio and I/O, Compatible with 2nd Generation Sensors and Cables
Image of 3
Key Features
- Consolidate up to four sensor units under a single VMS license to reduce software costs and simplify deployment
- Vehicle-ready design with ignition-controlled shutdown and built-in accelerometer for tamper and incident detection
- Enterprise-grade cybersecurity via Axis Edge Vault for simplified device authorization and secure network onboarding
- Continuous 1080p monitoring on four channels (30 fps) with PoE support for cleaner installs and lower cabling costs
- Pre-installed AXIS Sensor Metrics ACAP stores device health data locally for proactive maintenance and faster troubleshooting
- Rugged aluminum enclosure and wide operating range (-40 to 104°F) engineered for buses, emergency vehicles and harsh environments
Quick Specifications
- Brand Name
- AXIS Communications
- Manufacturer
- Axis Communications
- Product Line
- F
- Product Name
- AXIS F9114 MAIN UNIT
Product Information Tabs
Overview
Designed for reliable multi-sensor surveillance in demanding mobile and fixed installations, the AXIS F9114 Series 2MP 4-channel main unit from Axis Communications streamlines fleet and mission-critical monitoring. This main unit supports up to four sensors delivering 1080p at 30 fps on every channel while requiring just one VMS license—cutting software expense and simplifying system management. Power over Ethernet (PoE) reduces cabling and speeds installation, and the rugged aluminum chassis with an operating range down to -40°F ensures continuous operation in buses, emergency vehicles and outdoor equipment.
Operational safety and cybersecurity are built in: ignition-controlled shutdown preserves data and hardware, the integrated accelerometer provides movement and impact alerts, and Axis Edge Vault secures device identity and network authorization. AXIS Sensor Metrics ACAP comes pre-installed to capture and store diagnostic data on the unit’s SD card, enabling proactive maintenance and faster remote troubleshooting. With support for two-way audio and I/O, this main unit adapts to alarm integration and communications workflows.
Specify the AXIS F9114 for durable, secure vehicle and transit surveillance—contact your reseller to configure a fleet-ready solution.
Features
- Consolidate up to four sensor units under a single VMS license to reduce software costs and simplify deployment
- Vehicle-ready design with ignition-controlled shutdown and built-in accelerometer for tamper and incident detection
- Enterprise-grade cybersecurity via Axis Edge Vault for simplified device authorization and secure network onboarding
- Continuous 1080p monitoring on four channels (30 fps) with PoE support for cleaner installs and lower cabling costs
- Pre-installed AXIS Sensor Metrics ACAP stores device health data locally for proactive maintenance and faster troubleshooting
- Rugged aluminum enclosure and wide operating range (-40 to 104°F) engineered for buses, emergency vehicles and harsh environments
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | F |
| Product Name | AXIS F9114 MAIN UNIT |
| Product Type | Main units |
| Product Model | F9114 |
| Product Series | F91 |
| Manufacturer Part Number | 01991-001 |
| Technical Information | |
| Material | Aluminum |
| Application/Usage | Bus, Surveillance |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Temperature (T-T) | -40-104°F |
| Others | |
| Model Number Replaces | 0659-001, 0778-001, 0779-004, 0936-001, 0936-004 |
| Physical Characteristics | |
| Color | Black |
| Weight | 1.49lb |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Miscellaneous | |
| Certifications | CISPR 32 Class A, CISPR 35, EAC, ECE R10 rev.06, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, VCCI Class A |
| Country of Origin | PL |
| Certifications & Standards | ONVIF G, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP3X, IEC/EN 61373 Category 1 Class B, NEMA TS 2 (2.2.7-2.2.9) |
