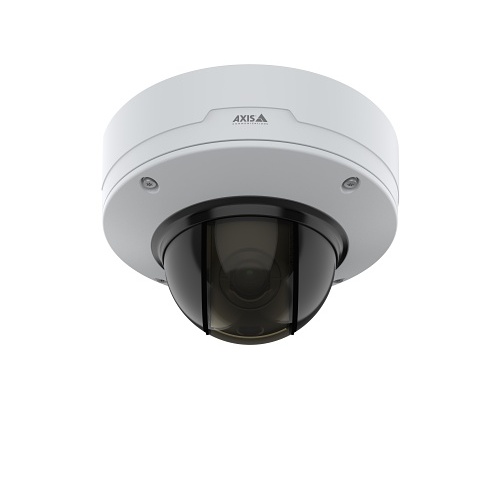

AXIS Q3536-LVE Q35 Series 4MP Outdoor Vandal Resistant Fixed Dome IP Camera, 4.3-8.6mm Varifocal Lens, White
Image of 2
Key Features
- Capture actionable evidence with 4MP resolution and a 4.3–8.6mm varifocal lens for crisp identification at entrances and perimeters
- Built to withstand vandalism and extreme weather (IK10+, IP66/IP6K9K) for reliable outdoor surveillance
- Superior low-light performance with Lightfinder 2.0 and Forensic WDR to keep monitoring effective day or night
- Embedded deep learning analytics reduce false alarms and improve classification for faster, more accurate incident response
- Simplified deployment with PoE power and multiple mount options to reduce installation time and total cost of ownership
Quick Specifications
- Product Model
- Q3536-LVE
- Brand Name
- AXIS Communications
- Product Line
- Q
- Product Name
- AXIS Q3536-LVE 9MM DOME CAMERA
Frequently Bought Together
AXIS Q3536-LVE Q35 Series 4MP Outdoor Vandal Resistant Fixed Dome IP Camera, 4.3-8.6mm Varifocal Lens, White
$1,306.56
4 items selected
Total: $2,768.57
Explore the details
Product information
02054-001
Overview
Protect busy exteriors and critical infrastructure with the AXIS Q3536-LVE, a professional 4MP outdoor vandal-resistant dome camera from Axis Communications designed for dependable, high-quality surveillance. This fixed dome camera delivers detailed 4MP imagery and a 4.3–8.6mm varifocal lens so security teams can reliably identify people and objects across entrances, parking areas, and transit hubs. Built for harsh conditions, the Q3536-LVE meets IK10+ impact and IP66/IP6K9K ingress ratings, ensuring continuous operation in vandal-prone or high-pressure wash environments. Advanced Lightfinder 2.0 and Forensic WDR maintain clear images in low light and challenging contrast, while integrated deep learning analytics improve object classification and reduce false alerts for more efficient monitoring. Power over Ethernet (PoE) and flexible bracket, conduit, and junction-box mounting make installation straightforward for system integrators and facility managers. Ideal for city surveillance, retail perimeters, campuses, and transportation sites—choose the AXIS Q3536-LVE to strengthen your security posture and simplify operations. Contact us to specify this camera for your next outdoor surveillance deployment.
Features
- Capture actionable evidence with 4MP resolution and a 4.3–8.6mm varifocal lens for crisp identification at entrances and perimeters
- Built to withstand vandalism and extreme weather (IK10+, IP66/IP6K9K) for reliable outdoor surveillance
- Superior low-light performance with Lightfinder 2.0 and Forensic WDR to keep monitoring effective day or night
- Embedded deep learning analytics reduce false alarms and improve classification for faster, more accurate incident response
- Simplified deployment with PoE power and multiple mount options to reduce installation time and total cost of ownership
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | Q |
| Product Name | AXIS Q3536-LVE 9MM DOME CAMERA |
| Product Type | Fixed dome cameras |
| Product Model | Q3536-LVE |
| Product Series | Q35 |
| Country of Origin | PL |
| Manufacturer Part Number | 02054-001 |
| Supported Network Protocols | IPv6 |
| Technical Information | |
| Aperture | f/1.5-2.4 |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2.6x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Maximum Frame Rate | 60fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 9.00mm |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Ingress Protection Rating | IP66, IP6K9K |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Display & Graphics | |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 2688 x 1512 |
| Environmental Conditions | |
| Operating Temperature (T-T) | -58-131°F |
| Exposure | |
| Minimum Illumination | 0.0000lux |
| Lens | |
| Focal Length | 4.3-8.6mm |
| Lens Included | Yes |
| Maximum Focal Length | 9.00mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Height | 4.90" |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Mount Type | Bracket Mount, Conduit Box Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 01041-001, 01046-001, Q3515-LV |
| Miscellaneous | |
| Features | Built-in Infrared Illuminator, Day/Night, Video Content Analytics, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10+ |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X |
