AXIS Q1961-TE Thermal Camera 7mm, 30fps, Dependable Remote Temperature Monitoring
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

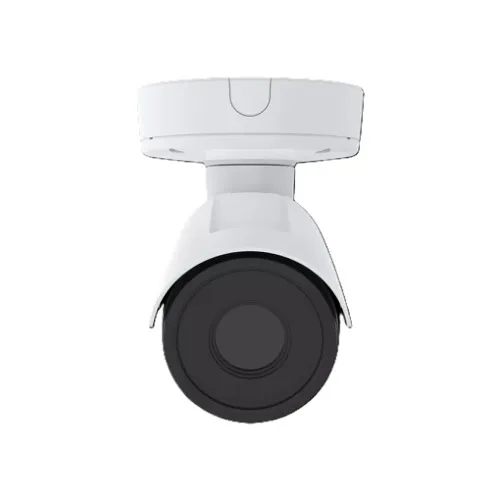

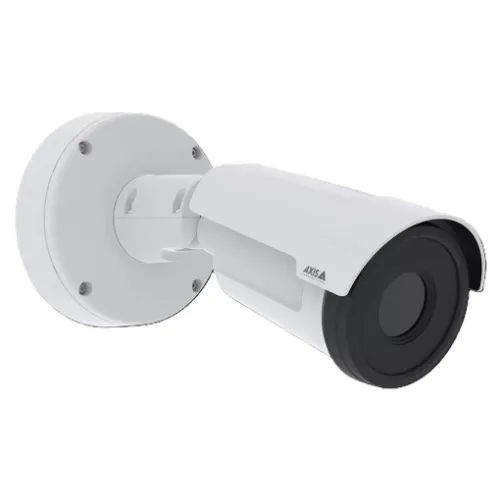

Image of 3
Key Features
- Continuous remote temperature monitoring to detect overheating and prevent costly equipment downtime
- Early fire detection analytics with smart false-alarm filtering for faster, reliable alerts
- Up to 10 configurable polygonal detection areas for targeted thermal surveillance of critical zones
- Rugged outdoor design (IP66/IP67, IK10, NEMA 4X) for reliable performance in harsh industrial environments
- Real-time thermal imaging at 30 fps with a 7 mm lens for consistent, actionable temperature data
- Secure, networked operation with PoE, built-in cybersecurity, edge analytics and audio alarm support for rapid response
Quick Specifications
- Product Model
- Q1961-TE
- Brand Name
- AXIS Communications
- Product Line
- Q
- Product Name
- AXIS Q1961-TE 7mm 30 fps
Frequently Bought Together
AXIS Q1961-TE Thermal Camera 7mm, 30fps, Dependable Remote Temperature Monitoring
$4,426.25
3 items selected
Total: $5,082.63
Product Information Tabs
Overview
Protect operations and reduce downtime with the AXIS Q1961-TE thermal camera from Axis Communications — a purpose-built thermal imaging camera for continuous temperature monitoring and security surveillance. Designed for industrial and critical infrastructure applications, this camera measures temperatures from -40 °C to 350 °C and delivers real-time thermal video at 30 fps through its 7 mm fixed lens, giving your team fast, reliable insight into equipment health and hot-spot development. Built-in early fire detection analytics and up to 10 configurable polygonal detection areas let you tune the system to monitor specific assets while minimizing false alarms. Rugged IP66/IP67, IK10 and NEMA 4X-rated housing ensures dependable outdoor operation, and PoE, SD card local storage and edge-to-edge integration (including network speaker alarms) enable secure, networked incident response. With Axis-grade cybersecurity and support for H.264/H.265 streaming, the Q1961-TE fits seamlessly into modern surveillance and industrial monitoring systems. Deploy it for predictive maintenance, perimeter security, or early fire detection to improve safety and lower operating costs.
Features
- Continuous remote temperature monitoring to detect overheating and prevent costly equipment downtime
- Early fire detection analytics with smart false-alarm filtering for faster, reliable alerts
- Up to 10 configurable polygonal detection areas for targeted thermal surveillance of critical zones
- Rugged outdoor design (IP66/IP67, IK10, NEMA 4X) for reliable performance in harsh industrial environments
- Real-time thermal imaging at 30 fps with a 7 mm lens for consistent, actionable temperature data
- Secure, networked operation with PoE, built-in cybersecurity, edge analytics and audio alarm support for rapid response
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | Q |
| Product Name | AXIS Q1961-TE 7mm 30 fps |
| Product Type | Thermal cameras |
| Product Model | Q1961-TE |
| Product Series | Q19 |
| Manufacturer Part Number | 02174-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.18 |
| Lens Type | Fixed |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Video Resolution | 384 x 288 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 7mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | Uncooled Microbolometer |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Image Sensor Size | 384 x 288 |
| Maximum Video Resolution | 768 x 576 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Operating Temperature (T-T) | -40-104°F |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 7mm |
| Lens Included | Yes |
| Maximum Focal Length | 7mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 0647-001 |
| Physical Characteristics | |
| Color | White |
| Weight | 3.09lb |
| Durability | Corrosion Resistant, Dustproof, Impact Resistant, Waterproof |
| Power Description | |
| Input Voltage | 10V DC, 28V DC |
| Maximum Power Consumption | 13W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Length | 10.7" |
| Diameter | 5.2" |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Features | Active Tampering Alarm, Audio Detection, Auto Gain Control, Electronic Image Stabilization, Fire Detection, Heater, Mirror, Motion Detection, Privacy Masking, SD Card Local Storage |
| Certifications | CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, VCCI Class A |
| Indoor/Outdoor | Outdoor |
| Country of Origin | PL |
| Impact Protection Rating | IK10 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
