AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W

SKU: 02208-001 Axis Communications

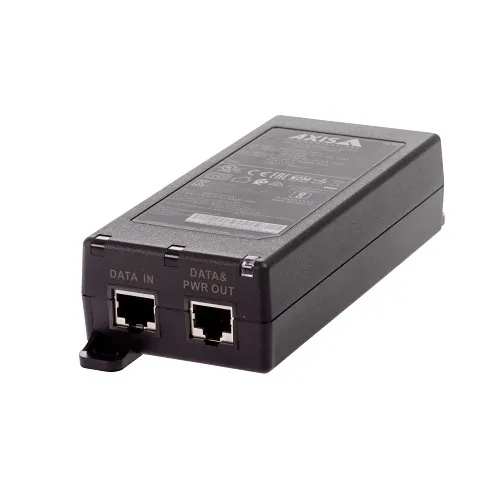

Image of Z4-02208001
Product images for AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Provides reliable PoE power for security and surveillance devices where mains power isn’t available, enabling continuous monitoring.
  • Accepts 24 VAC or 10–28 V DC inputs for flexible deployments including retrofit, battery-backed, or solar-powered systems.
  • Delivers up to 30 W (IEEE 802.3at) to support PTZ, dome and box cameras and other power-hungry network devices.
  • Compact, mountable design (DIN rail, wall or shelf) simplifies installation in cabinets, equipment racks or remote sites.
  • Plug-and-play compatibility with Axis Communications PoE devices reduces installation time and integration complexity.

Quick Specifications

Product Model
02208-002
Brand Name
AXIS Communications
Product Name
AXIS 30 W MIDSPAN AC/DC
Product Type
Power over Ethernet
View Full Technical Specifications

Explore the details

Product information

02208-001

Overview

When mains power isn't an option, the AXIS 02208-001 Midspan AC/DC puts dependable PoE power where you need it most. This Axis Communications PoE device accepts either 24 VAC or 10–28 V DC input—ideal for retrofits in harsh environments, battery-backed systems, or solar installations—and delivers up to 30 W (IEEE 802.3at) to cameras and networked equipment. The result is uninterrupted surveillance and monitoring without costly re-cabling. Compact and versatile, the midspan supports DIN-rail, wall or shelf mounting so you can deploy it inside enclosures or on-site equipment racks. Certified for industry safety and EMI standards and NDAA compliant, it integrates seamlessly with Axis cameras and security hardware for streamlined installation and dependable operation. Choose this midspan to power PTZ, dome or box cameras and other PoE network devices where flexibility and reliability are essential. Order now to simplify your security and surveillance deployments or contact us to discuss retrofit and remote powering options.

Features

  • Provides reliable PoE power for security and surveillance devices where mains power isn’t available, enabling continuous monitoring.
  • Accepts 24 VAC or 10–28 V DC inputs for flexible deployments including retrofit, battery-backed, or solar-powered systems.
  • Delivers up to 30 W (IEEE 802.3at) to support PTZ, dome and box cameras and other power-hungry network devices.
  • Compact, mountable design (DIN rail, wall or shelf) simplifies installation in cabinets, equipment racks or remote sites.
  • Plug-and-play compatibility with Axis Communications PoE devices reduces installation time and integration complexity.
23 of 23 specifications
Technical specifications for AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Name AXIS 30 W MIDSPAN AC/DC
Product Type Power over Ethernet
Product Model 02208-002
Country of Origin VN
Manufacturer Part Number 02208-001
Certifications
Certifications EAC, EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A
NDAA Compliant Yes
Environmental Conditions
Operating Temperature (T-T) -20-50°C
Interfaces/Ports
Input Ports Gigabit Ethernet
Output Ports PoE
Management & Protocols
Security Features IEC/EN 62368-1, IS 13252, KC-Mark, UL 62368-1
Physical Characteristics
Color Black
Depth 1.50"
Width 2.60"
Height 6.50"
Power Description
PoE Budget 30.0W
Maximum Output Power 30.00W
Maximum Output Voltage 56.0V
Power over Ethernet (PoE) Yes
Product Information
Mount Type DIN Rail Mount, Shelf Mount, Wall Mount
Miscellaneous
Compatibility Network Device
