AXIS D1110 4K Video Decoder with HDMI Output (Replaces P7701 and T8705)

SKU: 02282-001 Axis Communications

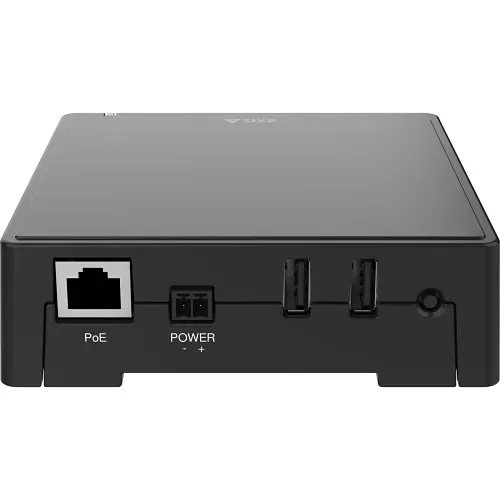

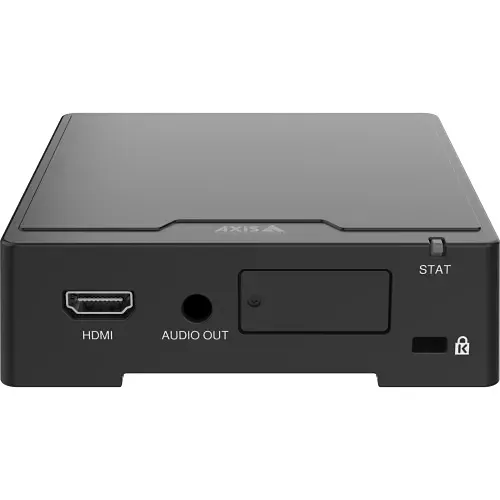

Image of Z4-02282001
Product images for AXIS D1110 4K Video Decoder with HDMI Output (Replaces P7701 and T8705). 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Display 4K live video and up to 9 streams in multiview on HDMI displays without a PC, simplifying deployments and lowering TCO
  • Native support for H.264/H.265 decoding and 30 fps playback ensures smooth, high-quality surveillance monitoring
  • PoE or DC power options and compact form factor speed installation in control rooms, retail displays, and remote monitoring points
  • Audio line-out and built-in sequencing let you combine live video, announcements, or advertising on a single screen
  • Intuitive Axis interface with reliable network connectivity reduces setup time and integrates with existing security systems

Quick Specifications

Product Model
D1110
Brand Name
AXIS Communications
Product Line
D
Product Name
AXIS D1110 VIDEO DECODER 4K
View Full Technical Specifications

Explore the details

Product information

02282-001

Overview

The AXIS D1110 4K Video Decoder from Axis Communications delivers a simple, reliable way to show high-resolution surveillance video on HDMI displays without a PC. Designed for security and monitoring applications, this compact video decoder decodes H.264/H.265 streams at up to 3840 x 2160 (4K) and supports multiview of up to nine simultaneous camera feeds — ideal for control rooms, retail digital signage, and distributed monitoring points.

With PoE or DC power options and an audio line-out, the D1110 lets installers deploy displays quickly and play both live video and audio or static content such as advertisements and information panels. The intuitive Axis interface and seamless sequencing reduce operator training and streamline day-to-day surveillance workflows. Built to integrate with existing IP camera systems and network video recorders, it supports industry standards for dependable performance.

Choose the AXIS D1110 to simplify video distribution, enhance situational awareness, and reduce infrastructure costs. Contact sales or add to your security system to start displaying mission-critical surveillance and monitoring content immediately.

Features

  • Display 4K live video and up to 9 streams in multiview on HDMI displays without a PC, simplifying deployments and lowering TCO
  • Native support for H.264/H.265 decoding and 30 fps playback ensures smooth, high-quality surveillance monitoring
  • PoE or DC power options and compact form factor speed installation in control rooms, retail displays, and remote monitoring points
  • Audio line-out and built-in sequencing let you combine live video, announcements, or advertising on a single screen
  • Intuitive Axis interface with reliable network connectivity reduces setup time and integrates with existing security systems
27 of 27 specifications
Technical specifications for AXIS D1110 4K Video Decoder with HDMI Output (Replaces P7701 and T8705)
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line D
Product Name AXIS D1110 VIDEO DECODER 4K
Product Type Video decoders
Product Model D1110
Product Series D11
Application/Usage Video Compression, Video Decoding, Video Processing, Video streaming
Country of Origin PL
Manufacturer Part Number 02282001
Technical Information
Video Formats H.264 / AVC, H.265 / HEVC, MPEG-4 Visual
Maximum Frame Rate 30.0fps
Certifications
TAA Compliant Yes
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Temperature (T-T) 0-40°C
Interfaces/Ports
HDMI Yes
Audio Line Out Yes
Network (RJ-45) Yes
Physical Characteristics
Depth 4.60"
Width 4.60"
Height 1.40"
Power Description
Power Source DC Power
Product Replacements & Other Alternatives
Model Number Replaces 0319-004
Video
Maximum Resolution 3840 x 2160
Miscellaneous
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
Operating System Compatibility Windows
