AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004)

SKU: 02317-004 Axis Communications

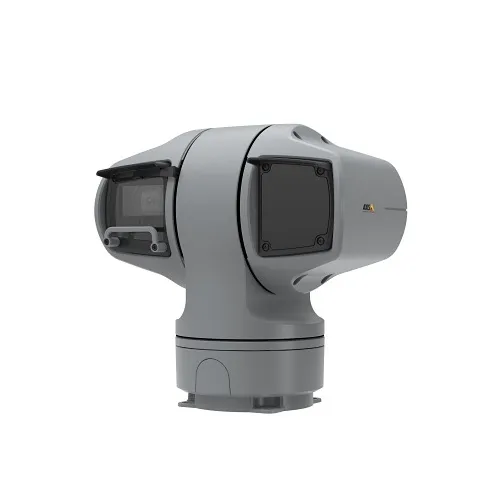

Image of Z4-02317004
Product images for AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004). 2 image(s) available. Click on image to view full size.

Key Features

  • Built for continuous outdoor security: MIL-STD-810G, IP66/IP68 and IK10 protection ensure reliable surveillance in extreme weather and impact-prone locations
  • Long-range identification: HDTV 1080p image quality with 31x optical zoom captures actionable details for monitoring, investigations and perimeter control
  • Day/night clarity: Lightfinder, Forensic WDR and OptimizedIR provide sharp images in low light and high-contrast scenes to reduce missed events
  • Intelligent edge capabilities: AXIS Object Analytics preinstalled plus remote management cut false alarms and streamline incident response
  • Bandwidth-efficient recording: Zipstream with H.264/H.265 and local edge storage support lower network load and long-term retention
  • Flexible deployment: PoE power, varifocal 6.91–214.69mm lens and bracket mount simplify installation across critical infrastructure and transportation sites

Quick Specifications

Product Model
Q6225-LE
Brand Name
AXIS Communications
Product Line
Q
Product Name
AXIS Q6225-LE 60 Hz US
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Deliver continuous, high-confidence outdoor surveillance with the AXIS Q6225-LE PTZ IP camera from Axis Communications. Engineered for mission-critical security and remote monitoring, this rugged PTZ camera pairs 1080p HDTV resolution with a powerful 31x optical zoom to identify persons, vehicles and license plates at long distances. Built-in technologies — Lightfinder, Forensic WDR and OptimizedIR — maintain clear imagery across low-light and high-contrast conditions, reducing blind spots and improving evidence capture. The unit meets MIL-STD-810G and carries IP66/IP68 and IK10 ratings for dependable operation in harsh environments, while PoE and edge storage options provide flexible, cost-effective deployment. AXIS Object Analytics and remote management simplify alerts and cut false positives, and Zipstream with H.264/H.265 minimizes bandwidth and storage without sacrificing image quality. Ideal for perimeter security, ports, transportation hubs and critical infrastructure monitoring, the AXIS Q6225-LE delivers the durability and intelligence needed for professional security operations. Contact us to specify this PTZ camera for your next surveillance project or add it to your system design.

Features

  • Built for continuous outdoor security: MIL-STD-810G, IP66/IP68 and IK10 protection ensure reliable surveillance in extreme weather and impact-prone locations
  • Long-range identification: HDTV 1080p image quality with 31x optical zoom captures actionable details for monitoring, investigations and perimeter control
  • Day/night clarity: Lightfinder, Forensic WDR and OptimizedIR provide sharp images in low light and high-contrast scenes to reduce missed events
  • Intelligent edge capabilities: AXIS Object Analytics preinstalled plus remote management cut false alarms and streamline incident response
  • Bandwidth-efficient recording: Zipstream with H.264/H.265 and local edge storage support lower network load and long-term retention
  • Flexible deployment: PoE power, varifocal 6.91–214.69mm lens and bracket mount simplify installation across critical infrastructure and transportation sites
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line Q
Product Name AXIS Q6225-LE 60 Hz US
Product Type PTZ cameras
Product Model Q6225-LE
Product Series Q62
Manufacturer Part Number 02317-004
Supported Network Protocols IPv6 USGv6
Technical Information
Aperture f/1.36-4.6
Lens Type Varifocal
Night Vision Yes
Optical Zoom 30x
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Night Vision Type Infrared
Maximum Frame Rate 60fps
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 1312.34 ft
Certifications
Ingress Protection Rating IP66, IP68
Display & Graphics
Image Sensor Size 1/2"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Temperature (T-T) -58-131°F
Exposure
Minimum Illumination 0.001 Lux
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 6.91-214.69mm
Memory
Memory Card Supported Yes
Network & Communication
Remote Management Yes
Others
Model Number Replaces 01442-004, 01442-018, 02517-001
Physical Characteristics
Color Gray
Height 12.3"
Durability Vandal Resistant
Form Factor PTZ
Power Description
Maximum Power Consumption 71W
Power over Ethernet (PoE) Yes
Product Information
Mount Type Bracket Mount
Storage
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Auto Gain Control, Day/Night, PTZ, Wiper
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Country of Origin PL
Impact Protection Rating IK10
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
