AXIS 02317-301 IP PTZ IR Security Camera

SKU: 02317-301 Axis Communications

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of Z4-02317301

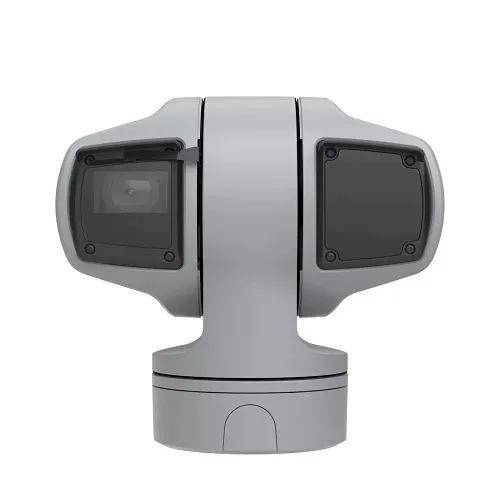

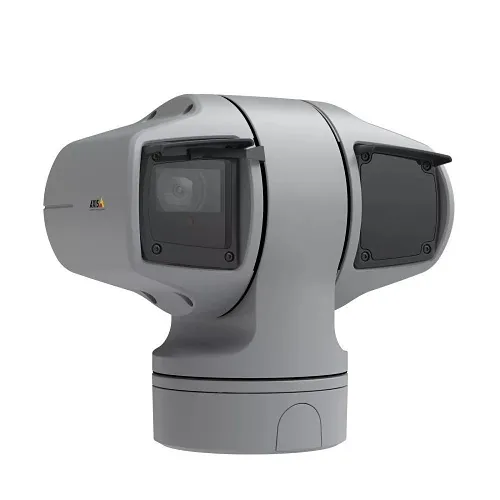

Product images for AXIS 02317-301 IP PTZ IR Security Camera. 3 image(s) available. Click on image to view full size.

Key Features

  • Extended-range monitoring with 31x optical zoom and 1080p HDTV clarity for confident identification at distance
  • Reliable outdoor operation to MIL-STD-810G, NEMA 4X and IP66/IP68 standards—designed to perform in extreme weather and harsh environments
  • Superior low-light and nighttime performance using Axis Lightfinder and OptimizedIR for clear surveillance around the clock
  • Vandal-resistant IK10 housing and robust construction reduce downtime and maintenance in high-risk locations
  • Built-in AXIS Object Analytics and powerful on-board processing enable intelligent monitoring and faster incident response
  • Bandwidth- and storage-efficient streaming with Zipstream (H.264/H.265) and PoE support for easy deployment and lower lifecycle costs

Quick Specifications

Product Model
02317-301
Brand Name
AXIS Communications
Product Name
AXIS Q6225-LE 60 Hz NM
Product Type
PTZ cameras
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS 02317-301 IP PTZ IR Security Camera

AXIS 02317-301 IP PTZ IR Security Camera

$4,055.59

Frequently Bought Together (3 items)

4 items selected

Total: $5,815.75

Explore the details

Product information

02317-301

Overview

For demanding perimeter security and mission-critical surveillance, the AXIS 02317-301 IP PTZ IR Security Camera from Axis Communications delivers durable, high-performance monitoring where it matters most. This PTZ security camera pairs HDTV 1080p resolution with a powerful 31x optical zoom and long-range OptimizedIR so operators can detect, identify and track activity day or night. Built to MIL-STD-810G and certified IP66/IP68 with IK10 impact protection, it stands up to extreme temperatures, heavy weather and vandalism—ideal for ports, utilities, transportation hubs and industrial sites. Lightfinder and Forensic WDR ensure usable images in low-light and high-contrast scenes, while on-board AXIS Object Analytics and electronic image stabilization streamline event detection and reduce false alarms. Zipstream with H.264/H.265 minimizes bandwidth and storage without sacrificing image quality, and PoE simplifies installation. Deploy this rugged Axis PTZ camera for reliable 24/7 security, surveillance and remote monitoring — contact us to discuss site-specific configurations or to request a quote.

Features

  • Extended-range monitoring with 31x optical zoom and 1080p HDTV clarity for confident identification at distance
  • Reliable outdoor operation to MIL-STD-810G, NEMA 4X and IP66/IP68 standards—designed to perform in extreme weather and harsh environments
  • Superior low-light and nighttime performance using Axis Lightfinder and OptimizedIR for clear surveillance around the clock
  • Vandal-resistant IK10 housing and robust construction reduce downtime and maintenance in high-risk locations
  • Built-in AXIS Object Analytics and powerful on-board processing enable intelligent monitoring and faster incident response
  • Bandwidth- and storage-efficient streaming with Zipstream (H.264/H.265) and PoE support for easy deployment and lower lifecycle costs
42 of 42 specifications
Technical specifications for AXIS 02317-301 IP PTZ IR Security Camera
General Information
Brand Name AXIS Communications
Product Name AXIS Q6225-LE 60 Hz NM
Product Type PTZ cameras
Manufacturer Part Number 02317-301
Supported Network Protocols IPv6 USGv6
Technical Information
Aperture f/1.36-4.6
Lens Type Varifocal
Night Vision Yes
Optical Zoom 31x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.36
Maximum Frame Rate 60fps
Minimum Focal Length 6.91mm
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66, IP68
Display & Graphics
Image Sensor Size 1/2"
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 10-100%
Operating Temperature (T-T) -58-131°F
Maximum Operating Temperature 131°F
Minimum Operating Temperature -58°F
Exposure
Minimum Illumination 0.001 Lux
Longest Shutter Speed 1/2 Second
Shortest Shutter Speed 1/111000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 6.91-214.69mm
Lens Included Yes
Minimum Aperture f/4.6
Maximum Focal Length 214.64mm
Memory
Memory Card Supported Yes
Others
Model Number Replaces 01442-004, 01442-018
Physical Characteristics
Durability Vandal Resistant
Power Description
Maximum Power Consumption 71W
Power over Ethernet (PoE) Yes
Warranty
Limited Warranty 5 Year
Miscellaneous
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
