AXIS 02367-001 1/1.8" Lens I-CS 3.9 to 10mm F1.5

SKU: 02367-001 Axis Communications

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

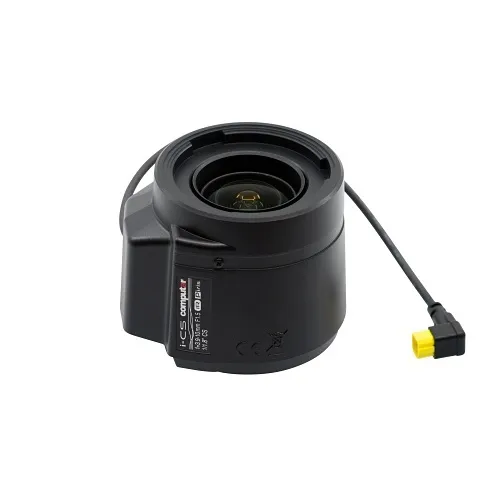

Image of Z4-02367001
Product images for AXIS 02367-001 1/1.8" Lens I-CS 3.9 to 10mm F1.5. 2 image(s) available. Click on image to view full size.

Key Features

  • Remote zoom, focus and iris control via i-CS motors for fast, on‑site or remote adjustment
  • IR‑corrected optics and f/1.5 aperture for consistent day/night clarity and improved low-light monitoring
  • Wide 3.9–10mm focal range (2.6x optical zoom) provides flexible field-of-view for varied surveillance scenes
  • P‑Iris control delivers sharper images and better depth-of-field for high-resolution security capture
  • Compact, industry-standard CS-mount design and support for 1/1.8" sensors simplifies installation and system integration

Quick Specifications

Product Model
02367-001
Brand Name
AXIS Communications
Product Name
LENS I-CS 1/1.8" 3.9-10 mm F1.5
Product Type
Lenses
View Full Technical Specifications

Explore the details

Product information

02367-001

Overview

Optimize your security and surveillance installations with the AXIS 02367-001 varifocal lens from Axis Communications. Built for professional monitoring environments, this i-CS varifocal lens provides remote, motorized zoom, focus and iris control so integrators and operators can fine-tune coverage without physical access. With a 3.9–10mm focal range and a bright f/1.5 maximum aperture, the lens delivers flexible framing plus reliable low-light performance for 24/7 operation.

Designed for security cameras supporting up to 1/1.8" sensors, the lens is IR-corrected to maintain focus when switching between day and night modes, reducing maintenance and preventing image shift. P‑Iris control gives consistent depth-of-field and improved image sharpness—ideal for license plate capture, perimeter monitoring, retail loss-prevention and transit surveillance. The open i-CS protocol ensures easy integration with Axis cameras and third-party systems for centralized monitoring and remote management.

Choose the AXIS 02367-001 varifocal lens to improve image quality, simplify installation, and expand coverage flexibility. Contact your Axis partner to specify this lens for your next security or monitoring project.

Features

  • Remote zoom, focus and iris control via i-CS motors for fast, on‑site or remote adjustment
  • IR‑corrected optics and f/1.5 aperture for consistent day/night clarity and improved low-light monitoring
  • Wide 3.9–10mm focal range (2.6x optical zoom) provides flexible field-of-view for varied surveillance scenes
  • P‑Iris control delivers sharper images and better depth-of-field for high-resolution security capture
  • Compact, industry-standard CS-mount design and support for 1/1.8" sensors simplifies installation and system integration
23 of 23 specifications
Technical specifications for AXIS 02367-001 1/1.8" Lens I-CS 3.9 to 10mm F1.5
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Name LENS I-CS 1/1.8" 3.9-10 mm F1.5
Product Type Lenses
Product Model 02367-001
Application/Usage Surveillance Camera
Manufacturer Part Number 02367001
Technical Information
Iris Type P-iris
Lens Type Varifocal
Optical Zoom 2.6x
Field of View Horizontal
Maximum Aperture f/1.5
Minimum Focal Length 3.90mm
Lens
Autofocus Yes
Focal Length 3.9-10mm
Maximum Focal Length 10.00mm
Product Information
Length 2.70"
Diameter 2.30"
Product Replacements & Other Alternatives
Model Number Replaces 01576-001
Warranty
Limited Warranty 3-Year
Miscellaneous
Environmentally Friendly Yes
Sensor Size Compatibility 1/1.8", 1/2"
Environmental Certification WEEE
