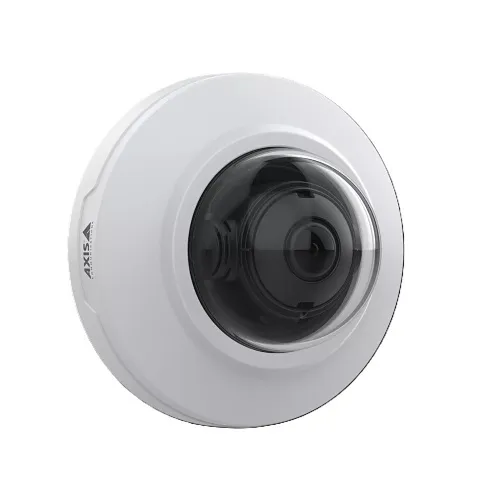

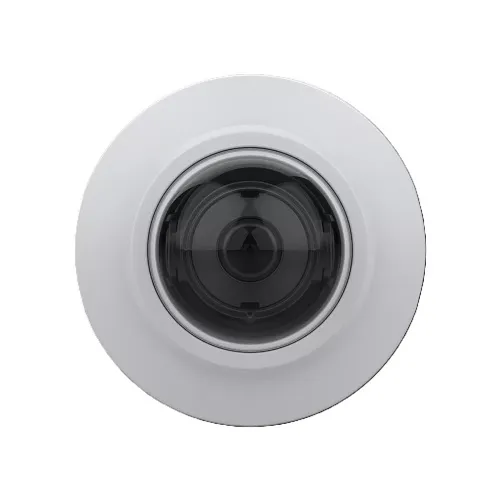

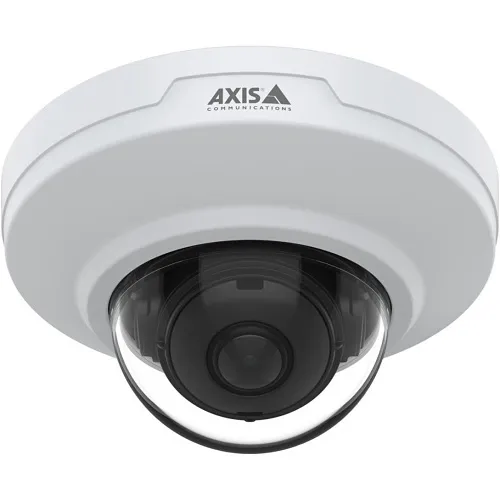

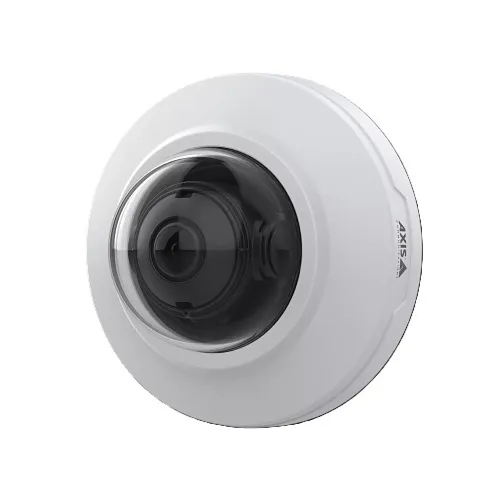

AXIS M3086-V M30 Series 4MP Fixed Mini Dome WDR IP Camera, 2.4mm Lens, White, (Replaces M3066-V)
Key Features
- Consistent 24/7 surveillance with Lightfinder and WDR for sharp color images in low light and balanced highlights/shadows
- High-resolution 4 MP sensor and 2.4 mm wide-angle lens capture detailed, wide-area coverage with minimal blind spots
- On-device deep learning analytics and AXIS Object Analytics reduce false alarms and enable smarter edge monitoring
- Compact, vandal-resistant mini dome design with PoE simplifies discreet installation and reduces cabling cost
- Built-in cybersecurity features and Axis Edge Vault protect device integrity and ensure secure networked surveillance
Quick Specifications
- Product Model
- M3086-V
- Brand Name
- AXIS Communications
- Product Line
- M
- Product Name
- AXIS M3086-V
Frequently Bought Together
AXIS M3086-V M30 Series 4MP Fixed Mini Dome WDR IP Camera, 2.4mm Lens, White, (Replaces M3066-V)
$431.40
4 items selected
Total: $1,893.41
Explore the details
Product information
02374-001
Overview
Optimize indoor security and monitoring with the AXIS M3086-V mini dome IP camera from Axis Communications. Designed for retail, office, and education environments, this compact 4MP dome delivers crisp, high-detail video with a 2.4 mm wide-angle lens and 130° field of view so you capture more area with a single camera. Lightfinder technology plus Wide Dynamic Range (WDR) ensures color-accurate images in low light and balanced exposure where bright and dark zones coexist.
Built-in PoE support and a discreet IK08-rated mini dome housing make installation fast and resilient, while the integrated deep learning processing unit and AXIS Object Analytics provide intelligent edge analytics to reduce false alarms and speed up threat detection. With support for H.264/H.265, ONVIF compatibility, and robust cybersecurity features, the M3086-V fits seamlessly into modern IP surveillance systems for reliable monitoring and compliance-ready deployments.
Upgrade your security infrastructure with this analytics-ready dome camera — ideal for surveillance in stores, lobbies, and classrooms. Contact sales or add to your cart to start improving situational awareness today.
Features
- Consistent 24/7 surveillance with Lightfinder and WDR for sharp color images in low light and balanced highlights/shadows
- High-resolution 4 MP sensor and 2.4 mm wide-angle lens capture detailed, wide-area coverage with minimal blind spots
- On-device deep learning analytics and AXIS Object Analytics reduce false alarms and enable smarter edge monitoring
- Compact, vandal-resistant mini dome design with PoE simplifies discreet installation and reduces cabling cost
- Built-in cybersecurity features and Axis Edge Vault protect device integrity and ensure secure networked surveillance
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | M |
| Product Name | AXIS M3086-V |
| Product Type | Fixed dome cameras |
| Product Model | M3086-V |
| Product Series | M30 |
| Country of Origin | MX |
| Manufacturer Part Number | 02374-001 |
| Supported Network Protocols | IPv6 |
| Technical Information | |
| Aperture | f/2.1 |
| Lens Type | Fixed |
| Aspect Ratio | 16:9 |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264 / AVC, H.265 / HEVC, MPEG-4 Visual |
| Lens Mount Type | M12 |
| Maximum Aperture | f/2.1 |
| Maximum Frame Rate | 30.0fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 2.40mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Ingress Protection Rating | IP42 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Display & Graphics | |
| Image Sensor Size | 1/2.7" |
| Maximum Video Resolution | 2688 x 1512 |
| Environmental Conditions | |
| Operating Humidity | 0.85 |
| Operating Temperature (T-T) | 0-45°C |
| Maximum Operating Temperature | 113.00°F |
| Minimum Operating Temperature | 32.0°F |
| Exposure | |
| Minimum Illumination | 0.0300lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/38500 Second |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.4mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.40mm |
| Memory | |
| SD Card Slot | Yes |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Height | 2.20" |
| Weight | 5.29oz |
| Durability | Vandal Resistant |
| Form Factor | Mini Dome |
| Power Description | |
| Maximum Power Consumption | 4.20W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Diameter | 4.00" |
| Mount Type | Ceiling Mount, Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 01152-001 |
| Storage | |
| Storage Type | SD Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | Built-in Microphone, Cross Line Detection, Day/Night, HTTPS Encryption, Human Detection, Multi-view Stream, Password Protection, Removable IR Cut-off Filter, Vehicle Detection, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK08 |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
