Warehouse: United States

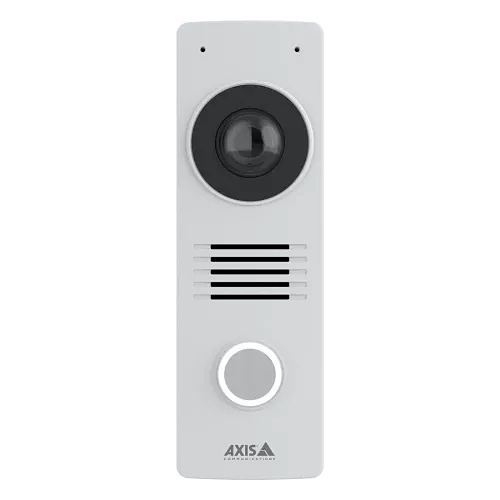

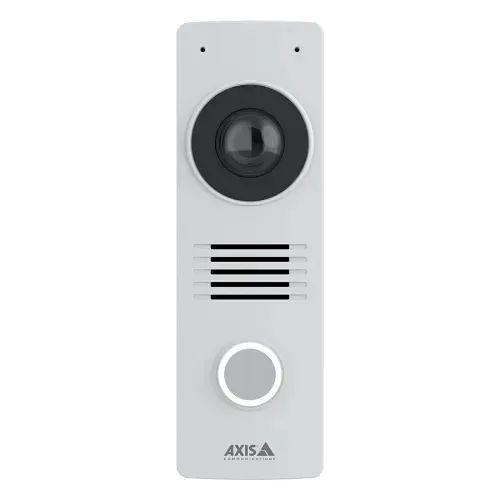

AXIS I8116-E 5MP Outdoor IP Door intercom, 162° Fixed Angle View, White

SKU: 02408-001 Axis Communications
Image of Z4-02408001
Product images for AXIS I8116-E 5MP Outdoor IP Door intercom, 162° Fixed Angle View, White. 2 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Verify visitors and control access remotely with crisp 5MP video and two‑way audio for faster, more secure entry decisions.
  • Extremely wide 162° fixed field of view captures full entryways and approaches, reducing blind spots and false alarms.
  • Rugged IP65/IK07 housing and -22–140°F operating range for reliable outdoor surveillance in harsh environments.
  • Easy integration into existing systems via SIP and ONVIF, plus OSDP support for seamless access control with Axis solutions.
  • Built-in AXIS Object Analytics and cybersecurity features lower false positives and protect your network from unauthorized access.

Quick Specifications

Brand Name
AXIS Communications
Manufacturer
Axis Communications
Product Line
I
Product Name
AXIS I8116-E White
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS I8116-E 5MP Outdoor IP Door intercom, 162° Fixed Angle View, White

AXIS I8116-E 5MP Outdoor IP Door intercom, 162° Fixed Angle View, White

$976.57

Frequently Bought Together (1 items)

2 items selected

Total: $1,119.68

Product Information Tabs

Overview

Designed for secure entry and continuous monitoring, the Axis Communications AXIS I8116-E 5MP Outdoor IP Door Intercom combines high-quality surveillance and visitor verification in a compact mullion-style unit. Delivering 5MP resolution and a 162° horizontal field of view, this smart door intercom provides clear situational awareness of doorways, stoops and approach paths while two-way full‑duplex audio with noise cancellation enables smooth, professional communication. Built to withstand outdoor conditions, the device features IP65/IK07 protection and operates in extreme temperatures for dependable perimeter security. Open standards like SIP and ONVIF simplify integration with VoIP systems and VMS platforms, while OSDP input support lets you connect credential readers for streamlined access control. With AXIS Object Analytics preinstalled and layered cybersecurity protections, you get smarter detection with reduced false alarms and hardened network defense. Ideal for multifamily, retail, education and corporate sites, the AXIS I8116-E modernizes visitor screening and remote entry control—add it to your access control and surveillance infrastructure today.

Features

  • Verify visitors and control access remotely with crisp 5MP video and two‑way audio for faster, more secure entry decisions.
  • Extremely wide 162° fixed field of view captures full entryways and approaches, reducing blind spots and false alarms.
  • Rugged IP65/IK07 housing and -22–140°F operating range for reliable outdoor surveillance in harsh environments.
  • Easy integration into existing systems via SIP and ONVIF, plus OSDP support for seamless access control with Axis solutions.
  • Built-in AXIS Object Analytics and cybersecurity features lower false positives and protect your network from unauthorized access.
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line I
Product Name AXIS I8116-E White
Product Type Fixed cameras; Intercoms
Product Model I8116-E
Product Series I81
Manufacturer Part Number 02408001
Technical Information
Field of View Horizontal, Vertical
Application/Usage Access Control, Outdoor
Power Consumption 10.80W
Communication Mode Full-duplex
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Horizontal Viewing Angle 162°
Certifications
TAA Compliant Yes
Ingress Protection Rating IP65
Display & Graphics
Vertical Viewing Angle 118°
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0.15 lux
Lens
Focal Length 1.95mm
Others
Model Number Replaces 0871-001
Physical Characteristics
Color White
Depth 1.6"
Width 1.9"
Height 5.8"
Weight 14.11oz
Miscellaneous
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Country of Origin PL
Environmental Certification IEC/EN 60529 IP65, IEC/EN 62262 IK07, NEMA 250 Type 4X
