AXIS P5676-LE P56 Series 4MP High Performance IR PTZ Camera, 30x Optical Zoom Lens, White

SKU: 02414-001 Axis Communications

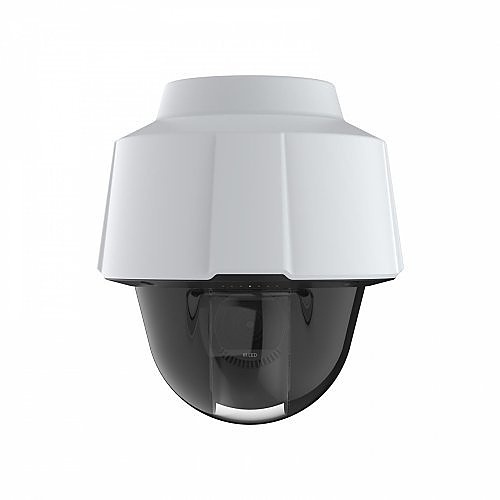

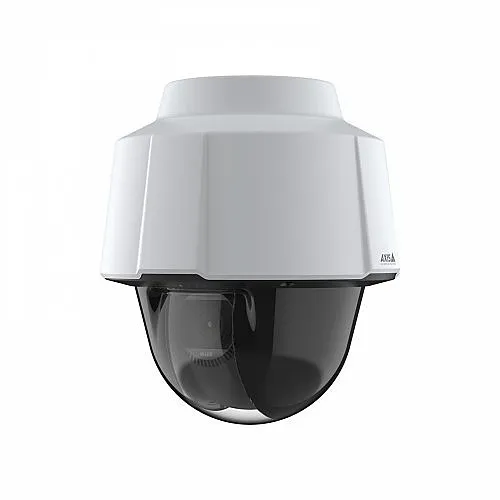

Image of Z4-02414001
Product images for AXIS P5676-LE P56 Series 4MP High Performance IR PTZ Camera, 30x Optical Zoom Lens, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Wide-area situational awareness with 4 MP resolution and 30x optical zoom for clear identification at long range
  • True day/night surveillance with built-in IR illumination and Lightfinder 2.0 for reliable 24/7 monitoring
  • Robust outdoor performance (IP66, NEMA 4X, IK10) that minimizes downtime in harsh environments
  • Integrated analytics (Axis Object Analytics, Advanced Gatekeeper) to reduce false alarms and automate incident response
  • Bandwidth-efficient recording with Zipstream and H.264/H.265 plus PoE support for simplified network deployment
  • Embedded cybersecurity (signed firmware, secure boot) to protect your surveillance infrastructure and data

Quick Specifications

Product Model
P5676-LE
Brand Name
AXIS Communications
Product Line
High Performance
Product Name
P5676-LE PTZ Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

02414-001

Overview

Designed for demanding perimeter, transportation, and city-center surveillance, the AXIS P5676-LE from Axis Communications is a high-performance PTZ camera built to deliver actionable video when it matters most. This network PTZ camera combines 4 MP image quality with a 30x optical zoom and built-in IR illumination so operators can both monitor wide areas and zoom in for forensic detail day or night. Advanced features such as Forensic WDR, Lightfinder 2.0 and Electronic Image Stabilization ensure clear images in challenging light or vibration-prone installations. Intelligent analytics — including Axis Object Analytics and Advanced Gatekeeper — help automate monitoring and reduce false alarms, while shock detection alerts you to tampering. Ruggedized for outdoor security, the unit carries IP66/NEMA 4X and IK10 ratings and supports PoE for streamlined installation. Built-in cybersecurity (signed firmware, secure boot) protects your networked video system. Ideal for critical infrastructure, campus security, and city surveillance — configure, deploy, and scale your monitoring solution with confidence. Contact us to request a quote or to discuss deployment options.

Features

  • Wide-area situational awareness with 4 MP resolution and 30x optical zoom for clear identification at long range
  • True day/night surveillance with built-in IR illumination and Lightfinder 2.0 for reliable 24/7 monitoring
  • Robust outdoor performance (IP66, NEMA 4X, IK10) that minimizes downtime in harsh environments
  • Integrated analytics (Axis Object Analytics, Advanced Gatekeeper) to reduce false alarms and automate incident response
  • Bandwidth-efficient recording with Zipstream and H.264/H.265 plus PoE support for simplified network deployment
  • Embedded cybersecurity (signed firmware, secure boot) to protect your surveillance infrastructure and data
55 of 55 specifications
Technical specifications for AXIS P5676-LE P56 Series 4MP High Performance IR PTZ Camera, 30x Optical Zoom Lens, White
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line High Performance
Product Name P5676-LE PTZ Camera
Product Type Network Camera
Product Model P5676-LE
Product Series P56
Manufacturer Part Number 02414-001
Technical Information
Aperture f/1.6-4.6
Lens Type Varifocal
Aspect Ratio 16:9
Night Vision Yes
Optical Zoom 30.0x
Field of View Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Maximum Aperture f/1.6
Night Vision Type Infrared (IR)
Maximum Frame Rate 60.0fps
Wide Dynamic Range Yes
Minimum Focal Length 4.60mm
Connectivity Technology Wired
Field of View (Vertical) 34.40°
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Certifications
Ingress Protection Rating IP66
Display & Graphics
Image Sensor Size 1/2.9"
Maximum Video Resolution 2688 x 1512
Environmental Conditions
Operating Humidity 1
Operating Temperature (T-T) -30-50°C
Maximum Operating Temperature 122.00°F
Minimum Operating Temperature -22.0°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/62500 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.6-133mm
Lens Included Yes
Minimum Aperture f/4.6
Maximum Focal Length 133.00mm
Memory
SD Card Slot Yes
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 9.50"
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Power Description
Maximum Power Consumption 30.00W
Power over Ethernet (PoE) Yes
Product Information
Diameter 8.10"
Mount Type Wall Mount
Storage
Storage Type SD Card
Video
Graphics Mode QHD
Maximum Resolution 1280 x 720
Miscellaneous
Features Audio Detection, Built-in IR LED, Built-in Microphone, Day/Night, Face Detection, HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Vehicle Detection, Video Management System, Wide Dynamic Range
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification EU RoHS, REACH, RoHS
