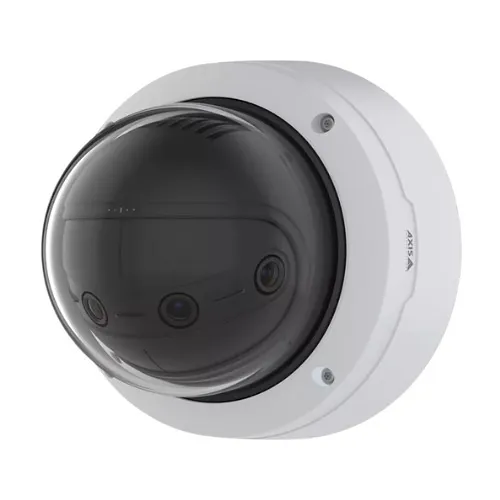

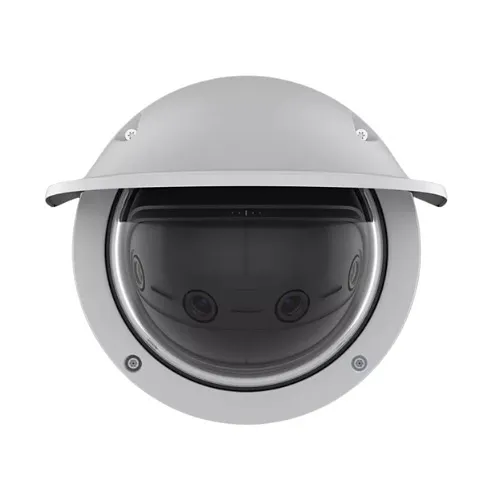

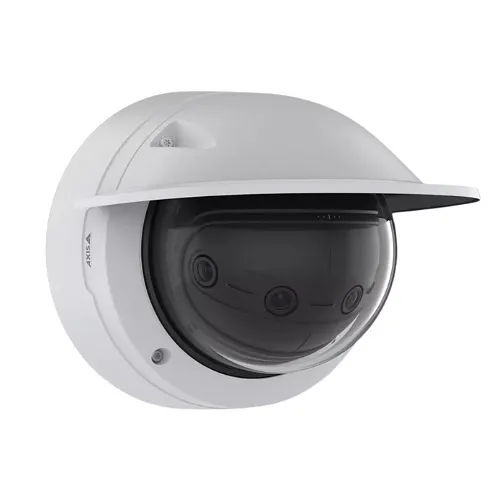

AXIS P3827-PVE 7MP Multisensor Panoramic IP Camera, 3.3mm, 180-Degree Coverage, White (Replaces 01048-004)
Key Features
- Full 180° horizontal, 90° vertical coverage with seamless stitching for uninterrupted situational awareness and fewer camera installations
- 7 MP multisensor detail at up to 30 fps for clear identification and reliable evidence capture in surveillance and security applications
- Built-in ARTPEC-8 and edge deep-learning analytics reduce server load and enable smarter monitoring, analytics, and faster incident response
- Rugged IP66/IP67 and IK10-rated housing for dependable outdoor performance in harsh environments, minimizing maintenance and downtime
- Single IP address and PoE support simplify installation, network management, and reduce cabling costs for large deployments
- Horizon straightening and multi-view streams deliver natural, easy-to-review panoramas ideal for retail, transit, and perimeter monitoring
Quick Specifications
- Product Model
- P3827-PVE
- Brand Name
- AXIS Communications
- Product Line
- P
- Product Name
- AXIS P3827-PVE
Product Information Tabs
Overview
Deliver continuous, high-resolution coverage for critical security and monitoring zones with the AXIS P3827-PVE panoramic IP camera from Axis Communications. This 7 MP multisensor camera provides seamless 180° horizontal and 90° vertical coverage with horizon straightening, producing a single realistic panoramic image that eliminates blind spots and reduces the number of devices needed for full-scene surveillance. Powered by ARTPEC-8, the camera supports deep-learning analytics on the edge—enabling motion detection, tamper alerts, and advanced object classification while lowering bandwidth and server requirements. Rated IP66/IP67 and IK10 for vandal and weather resistance, the P3827-PVE is built for outdoor installations such as perimeters, transit hubs, and parking facilities. With PoE and one IP address for all four sensors, deployment and ongoing management are simpler and more cost-effective. Delivering up to 30 fps and robust low-light performance, this panoramic camera captures actionable evidence around the clock. Specify the AXIS P3827-PVE for scalable, resilient surveillance—contact us to discuss site planning or to place an order.
Features
- Full 180° horizontal, 90° vertical coverage with seamless stitching for uninterrupted situational awareness and fewer camera installations
- 7 MP multisensor detail at up to 30 fps for clear identification and reliable evidence capture in surveillance and security applications
- Built-in ARTPEC-8 and edge deep-learning analytics reduce server load and enable smarter monitoring, analytics, and faster incident response
- Rugged IP66/IP67 and IK10-rated housing for dependable outdoor performance in harsh environments, minimizing maintenance and downtime
- Single IP address and PoE support simplify installation, network management, and reduce cabling costs for large deployments
- Horizon straightening and multi-view streams deliver natural, easy-to-review panoramas ideal for retail, transit, and perimeter monitoring
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | P |
| Product Name | AXIS P3827-PVE |
| Product Type | Fixed dome cameras |
| Product Model | P3827-PVE |
| Product Series | P38 |
| Manufacturer Part Number | 02450-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/2.0 |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.3mm |
| Connectivity Technology | Wired |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Number of Sensors | 4 |
| Maximum Video Resolution | 3712 x 1856 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Operating Temperature (T-T) | -40-131°F |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Minimum Illumination | 0.05 lux |
| Longest Shutter Speed | 1.5 Second |
| Shortest Shutter Speed | 1/31500 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.3mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.3mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 01048-001, 01048-004, 61048-001 |
| Physical Characteristics | |
| Color | White |
| Height | 6.7" |
| Weight | 5.07lb |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 18W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Diameter | 7.7" |
| Mount Type | Bracket Mount, Ceiling Mount, Conduit Mount, Junction Box Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 2D Noise Reduction, 3D Noise Reduction, Audio Detection, Auto Gain Control, Motion Detection, Multi-view Stream, Noise Detection, PTZ, Tampering Alarm, Wide Dynamic Range |
| Certifications | CISPR 35, EAC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Outdoor |
| Package Contents | AXIS P3827-PVE Panoramic Camera AXIS TQ3901 Gasket M20 Cable Gasket C M20 Gasket C M20 Cable 3-5 mm AXIS Q36-VE Clear/Smoked Domes AXIS ACI Conduit Adapter 3/4" U-Shape 30 mm AXIS TQ3902 Mount Bracket AXIS TQ3802-E Cover Weathershield |
| Country of Origin | MX |
| Impact Protection Rating | IK10 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
