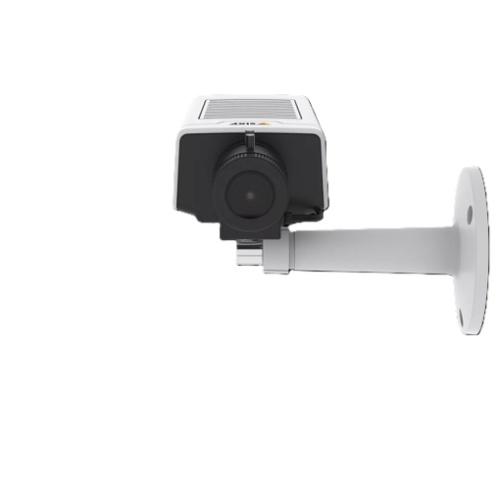

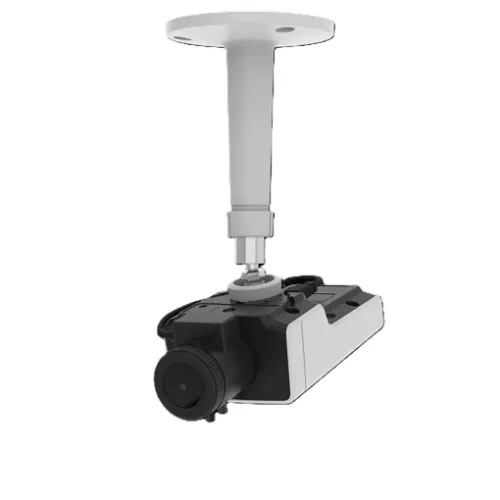

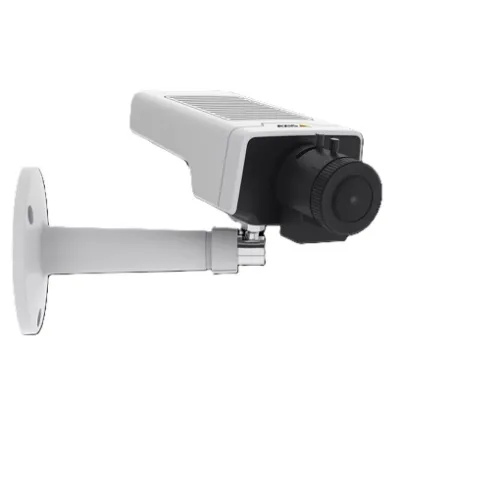

AXIS M1135 Mk II M11 Series 2MP Compact Box WDR IP Camera, 3-10.5mm Varifocal Lens, White
Key Features
- Reliable uptime with PoE and redundant DC power to keep surveillance running during outages
- Superior low-light performance using Axis Lightfinder and Forensic WDR for clear, color-accurate images
- Flexible 3–10.5mm varifocal lens and compact form factor for easy installation in tight or customized setups
- Built-in microphone and AXIS Object Analytics for actionable monitoring, detecting and classifying people and vehicles
- Bandwidth- and storage-efficient recording with Axis Zipstream supporting H.264/H.265, plus local SD card backup
Quick Specifications
- Brand Name
- AXIS Communications
- Manufacturer
- Axis Communications
- Product Line
- M
- Product Name
- AXIS M1135 MK II
Product Information Tabs
Overview
Designed for dependable professional security, the AXIS M1135 Mk II box camera from Axis Communications delivers clear, actionable video for retail, office and institutional surveillance. This compact 2MP fixed camera pairs a 3–10.5mm varifocal lens with Axis Lightfinder and Forensic WDR to capture true colors and fine details in challenging lighting and near-dark conditions. Power over Ethernet (PoE) and redundant DC power options simplify installation and ensure continuous operation, while Axis Zipstream with H.264/H.265 reduces bandwidth and storage costs without sacrificing image quality.
Preinstalled AXIS Object Analytics provides intelligent detection and classification of humans and vehicles, and the built-in microphone adds audio context to video evidence—helpful for security monitoring and incident review. The i-CS lens mount enables remote zoom and focus to speed commissioning and lens swaps. TAA compliance and a 5-year limited warranty support procurement and lifecycle planning.
For reliable networked surveillance that balances image quality, analytics and operational efficiency, choose the AXIS M1135 Mk II—ideal for perimeter, retail and facility monitoring. Contact sales to specify lenses and mounting options.
Features
- Reliable uptime with PoE and redundant DC power to keep surveillance running during outages
- Superior low-light performance using Axis Lightfinder and Forensic WDR for clear, color-accurate images
- Flexible 3–10.5mm varifocal lens and compact form factor for easy installation in tight or customized setups
- Built-in microphone and AXIS Object Analytics for actionable monitoring, detecting and classifying people and vehicles
- Bandwidth- and storage-efficient recording with Axis Zipstream supporting H.264/H.265, plus local SD card backup
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | M |
| Product Name | AXIS M1135 MK II |
| Product Type | Fixed cameras |
| Product Model | M1135 MK II |
| Product Series | M11 |
| Manufacturer Part Number | 02483-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.4 |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.5x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Lens Mount Type | i-CS |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Built-in Microphone | Yes |
| Minimum Focal Length | 3mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Display & Graphics | |
| Image Sensor Size | 1/2.9" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0.85 |
| Maximum Operating Temperature | 122°F (50°C) |
| Exposure | |
| Minimum Illumination | 0.02 lux |
| Longest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3-10.5mm |
| Lens Included | Yes |
| Maximum Focal Length | 10.5mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 01768-001, 01768-021, 01768-041, 01979-001, 01979-041, M1134 |
| Physical Characteristics | |
| Color | White |
| Width | 2.8" |
| Height | 1.9" |
| Weight | 0.55lb |
| Power Description | |
| Maximum Power Consumption | 7W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Length | 5.8" |
| Mount Type | Box Mount, Ceiling Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Audio Detection, Built-in Microphone, Day/Night, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range |
| Certifications | EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Indoor |
| Country of Origin | PL |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78 |
