AXIS M4318-PLVE 12MP Outdoor IR Panoramic Mini Dome IP Camera, 1.3mm Fixed Lens, White (Replaces M3058-PLVE)

SKU: 02511-001 Axis Communications
Image of Z4-02511001

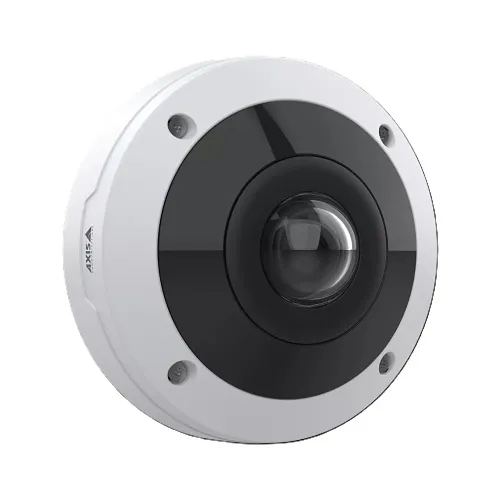

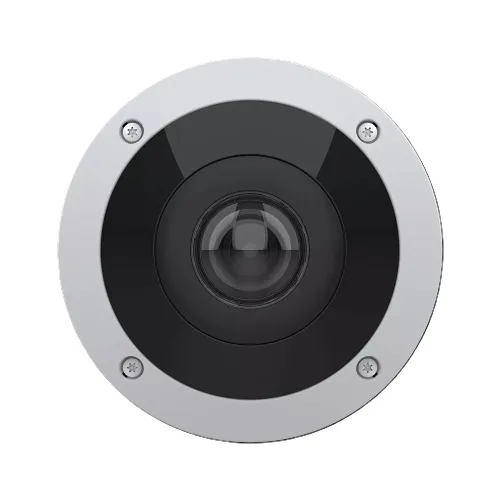

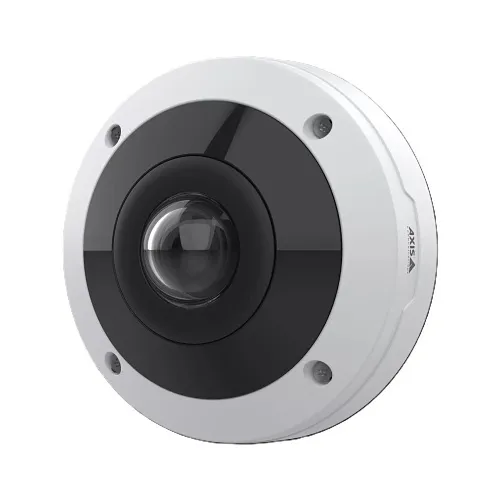

Product images for AXIS M4318-PLVE 12MP Outdoor IR Panoramic Mini Dome IP Camera, 1.3mm Fixed Lens, White (Replaces M3058-PLVE). 4 image(s) available. Click on image to view full size.

Key Features

  • Maximize coverage with a single unit: 12 MP panoramic imaging provides a complete 180° or 360° overview to reduce camera count and installation costs.
  • Reliable night and reflective-surface performance: built-in IR with individually controllable LEDs delivers clear, reflection‑free footage in low light or darkness.
  • Edge-based deep learning analytics: onboard DLPU and AXIS Object Analytics classify humans and vehicles to cut false alarms and speed incident response.
  • Hardened for outdoor deployments: IP66 and IK10-rated, corrosion-resistant housing and vandal resistance ensure continuous operation in harsh environments.
  • Simplified, secure installation: Power over Ethernet (PoE) and Axis Edge Vault streamline deployment while built-in cybersecurity features protect device identity and network access.

Quick Specifications

Product Model
M4318-PLVE
Brand Name
AXIS Communications
Product Line
M
Product Name
AXIS M4318-PLVE
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding security and surveillance environments, the AXIS M4318-PLVE panoramic mini dome from Axis Communications delivers high-resolution situational awareness while minimizing infrastructure. The 12 MP sensor produces crisp panoramic images with a stereographic lens and Sharpdome 360 for improved edge-to-edge sharpness, giving security teams a true 180° or 360° overview without blind spots. Built-in IR illumination with individually controllable LEDs ensures usable video in low light and eliminates problematic reflections common in windowed or glossy areas. Onboard deep learning processing enables advanced analytics—AXIS Object Analytics can detect and classify humans and vehicles at the edge—reducing false alarms and accelerating investigations. Rugged IP66 and IK10 construction plus PoE support simplify outdoor installation and lower total cost of ownership, while Axis Edge Vault and other cybersecurity features safeguard device identity and network authorization. Ideal for perimeter security, retail and campus monitoring, the M4318-PLVE is a versatile panoramic camera that boosts coverage, detection accuracy, and operational efficiency—contact us to specify or order this outdoor surveillance solution today.

Features

  • Maximize coverage with a single unit: 12 MP panoramic imaging provides a complete 180° or 360° overview to reduce camera count and installation costs.
  • Reliable night and reflective-surface performance: built-in IR with individually controllable LEDs delivers clear, reflection‑free footage in low light or darkness.
  • Edge-based deep learning analytics: onboard DLPU and AXIS Object Analytics classify humans and vehicles to cut false alarms and speed incident response.
  • Hardened for outdoor deployments: IP66 and IK10-rated, corrosion-resistant housing and vandal resistance ensure continuous operation in harsh environments.
  • Simplified, secure installation: Power over Ethernet (PoE) and Axis Edge Vault streamline deployment while built-in cybersecurity features protect device identity and network access.
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line M
Product Name AXIS M4318-PLVE
Product Type Fixed dome cameras
Product Model M4318-PLVE
Product Series M43
Country of Origin MX
Manufacturer Part Number 02511-001
Supported Network Protocols IPv6
Technical Information
Aperture f/2.2
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC
Maximum Frame Rate 30.0fps
Wide Dynamic Range Yes
Camera
Image Sensor Type CMOS
Certifications
Certifications EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Ingress Protection Rating IP66
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Display & Graphics
Image Sensor Size 1/2.3"
Maximum Video Resolution 2992 x 2992
Environmental Conditions
Operating Temperature (T-T) -40-50°C
Exposure
Minimum Illumination 0.0400lux
Lens
Focal Length 1.2mm
Memory
SD Card Slot Yes
Memory Card Supported Yes
Physical Characteristics
Color White
Durability Vandal Resistant
Power Description
Maximum Power Consumption 12.95W
Power over Ethernet (PoE) Yes
Product Replacements & Other Alternatives
Model Number Replaces 61178-001
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, ISO 21207 (Method B), ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
