AXIS TD8902 Multi-Mode SFP+ Module for up to 1300' Transmission Range LC.SR.X

SKU: 02631-001 Axis Communications

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

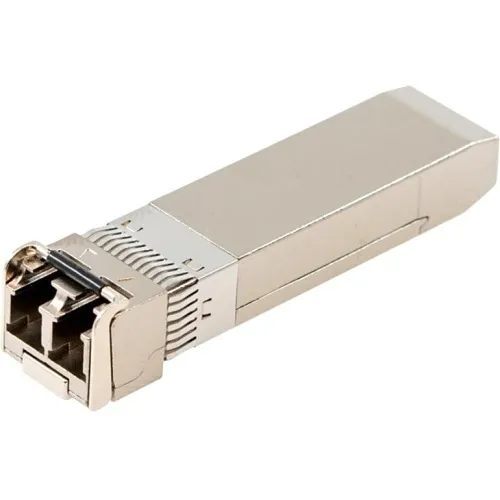

Image of Z4-02631001
Product images for AXIS TD8902 Multi-Mode SFP+ Module for up to 1300' Transmission Range LC.SR.X. 2 image(s) available. Click on image to view full size.

Key Features

  • Reliable multimode fiber connectivity up to 1300' (400 m) for uninterrupted surveillance and security network links
  • Industrial-grade design with -40 to 185°F operating range for resilient outdoor and harsh-environment installations
  • Hot-pluggable SFP+ MSA compatibility enables easy, non-disruptive upgrades and serviceability
  • Link-loss support for fast failover and improved network redundancy in monitoring and security systems
  • Short-wavelength 850 nm VCSEL optimized for 50/125 μm multimode fiber, tested with Axis products for seamless integration

Quick Specifications

Product Model
TD8902
Brand Name
AXIS Communications
Product Line
T
Product Name
AXIS TD8902 SFP+ MODULE LC.SR.X
View Full Technical Specifications

Explore the details

Product information

02631-001

Overview

Deliver dependable fiber connectivity where it matters most — for security, surveillance and critical monitoring networks. The AXIS TD8902 SFP+ module from Axis Communications is a compact, hot-pluggable transceiver designed to extend high-speed multimode links up to 1300' (400 m) using 50/125 μm fiber and LC connectors. Engineered with an 850 nm VCSEL and SFP+ MSA compliance, the TD8902 installs without interrupting host equipment and simplifies upgrades for switches and routers in camera farms, access control systems and central monitoring hubs.

Built to industrial standards, this module supports an extended operating temperature range (-40 to 185°F) and includes link-loss signaling to enable fast failover and higher network availability — a key benefit for continuous surveillance and security operations. Tested and verified with Axis hardware, the AXIS TD8902 ensures predictable interoperability and performance across your network infrastructure. Ideal for integrators and IT teams deploying fiber backbone links for video, data and control traffic. Add the AXIS TD8902 to your specification to strengthen redundancy and reliability in your next security or monitoring deployment.

Features

  • Reliable multimode fiber connectivity up to 1300' (400 m) for uninterrupted surveillance and security network links
  • Industrial-grade design with -40 to 185°F operating range for resilient outdoor and harsh-environment installations
  • Hot-pluggable SFP+ MSA compatibility enables easy, non-disruptive upgrades and serviceability
  • Link-loss support for fast failover and improved network redundancy in monitoring and security systems
  • Short-wavelength 850 nm VCSEL optimized for 50/125 μm multimode fiber, tested with Axis products for seamless integration
13 of 13 specifications
Technical specifications for AXIS TD8902 Multi-Mode SFP+ Module for up to 1300' Transmission Range LC.SR.X
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line T
Product Name AXIS TD8902 SFP+ MODULE LC.SR.X
Product Type Media Converters
Product Model TD8902
Maximum Distance 13123.36'
Manufacturer Part Number 02631-001
Technical Information
Application/Usage Data Networking, Optical Network
Media Type Supported Optical Fiber
Environmental Conditions
Operating Temperature (T-T) -40-185°F
Management & Protocols
Security Features IEC/EN 60825-1 Class 1, IEC/EN 62368-1 ed.3, UL 62368-1 ed.3
Miscellaneous
Certifications EN 55032 Class B, EN 55035, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, VCCI Class B
