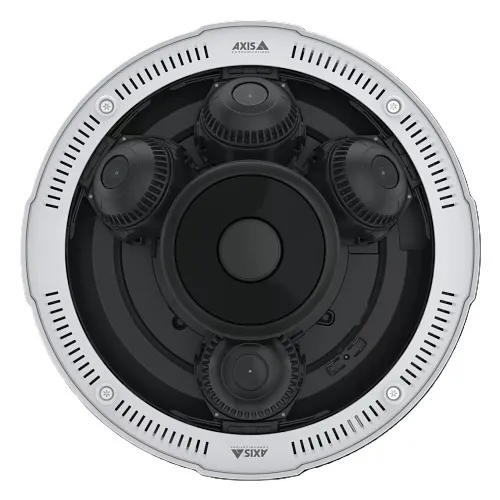

AXIS P3735-PLE P37 Series 4x 2MP AI-Powered Multidirectional Panoramic Camera, 3.2-8.1mm Varifocal Lens
Image of 2
Key Features
- Complete 360° situational awareness from one device, reducing blind spots and the number of cameras needed
- Clear low-light and reflection-free footage with 360° IR illumination for reliable night-time monitoring
- Four independent 2 MP channels deliver detailed, multi-directional views for faster incident detection and verification
- Secure, tamper-resistant design with Axis Edge Vault and rugged IP66/67, IK09 ratings for outdoor deployments
- Power-over-Ethernet (PoE) support and efficient power consumption lower installation complexity and operating costs
Quick Specifications
- Product Model
- P3735-PLE
- Brand Name
- AXIS Communications
- Product Line
- P
- Product Name
- AXIS P3735-PLE
Frequently Bought Together
AXIS P3735-PLE P37 Series 4x 2MP AI-Powered Multidirectional Panoramic Camera, 3.2-8.1mm Varifocal Lens
$1,646.33
4 items selected
Total: $2,733.51
Product Information Tabs
Overview
Secure expansive indoor and outdoor sites with full 360° situational awareness. The Axis Communications AXIS P3735-PLE multidirectional panoramic camera combines four independent 2 MP channels (at 30 fps) and a 3.2–8.1 mm varifocal lens to deliver simultaneous overview and detailed zoomed-in views, minimizing blind spots and camera count. 360° IR illumination with individually controlled LEDs ensures clear, reflection-free footage in low light and complete darkness, improving identification and monitoring after hours.
Built for real-world security, the P3735-PLE includes Axis Edge Vault hardware-based cybersecurity, PoE for simplified deployments, and durable IP66/67 and IK09 ratings for reliable outdoor performance. Deep-learning analytics support accelerates event detection and reduces false alarms, helping security teams respond faster. Ideal for retail malls, transportation hubs, campuses and critical infrastructure, this panoramic camera streamlines surveillance installations while maintaining high image quality and robust system security.
Contact our sales team to plan a deployment or add the AXIS P3735-PLE to your security solution today.
Features
- Complete 360° situational awareness from one device, reducing blind spots and the number of cameras needed
- Clear low-light and reflection-free footage with 360° IR illumination for reliable night-time monitoring
- Four independent 2 MP channels deliver detailed, multi-directional views for faster incident detection and verification
- Secure, tamper-resistant design with Axis Edge Vault and rugged IP66/67, IK09 ratings for outdoor deployments
- Power-over-Ethernet (PoE) support and efficient power consumption lower installation complexity and operating costs
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | P |
| Product Name | AXIS P3735-PLE |
| Product Type | Fixed dome cameras |
| Product Model | P3735-PLE |
| Product Series | P37 |
| Manufacturer Part Number | 02633-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.9-3.24 |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2.5x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/3.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Number of Sensors | 4 |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Maximum Operating Temperature | 50 deg C |
| Minimum Operating Temperature | -30 deg C |
| Exposure | |
| Minimum Illumination | 0 lux |
| Longest Shutter Speed | 1.5 Second |
| Shortest Shutter Speed | 1/28000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.18-8.12mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.2 |
| Maximum Focal Length | 8.1mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 02218-001 |
| Physical Characteristics | |
| Color | White |
| Weight | 4.41lb |
| Durability | Dustproof, Impact Resistant, Tamper Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Maximum Power Consumption | 23W |
| Power over Ethernet (PoE) | Yes |
| Storage | |
| Storage Type | Memory Card/Cloud |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics |
| Certifications | CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Outdoor |
| Country of Origin | MX |
| Impact Protection Rating | IK09 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364 |
