AXIS P3737-PLE 4 x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE)

SKU: 02634-001 Axis Communications

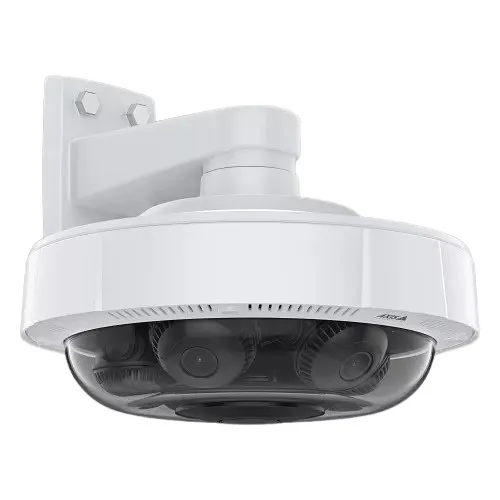

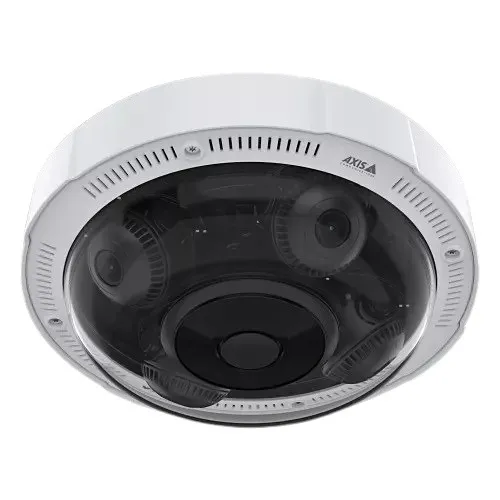

Image of Z4-02634001
Product images for AXIS P3737-PLE 4 x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE). 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Complete 360° situational awareness with four independent 5 MP channels for wide-area monitoring and forensic detail
  • Reliable low-light and no-light coverage via 360° IR illumination for reflection-free night surveillance
  • Reduces installation complexity and operating cost with PoE support and highly efficient power consumption
  • Built-in Axis Edge Vault hardware security plus tamper-resistant IK09 housing protects system integrity and uptime
  • Supports deep learning analytics for accurate detection and fewer false alarms, enabling smarter security workflows

Quick Specifications

Product Model
P3737-PLE
Brand Name
AXIS Communications
Product Line
P
Product Name
AXIS P3737-PLE
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

02634-001

Overview

Deliver continuous, high-resolution panoramic surveillance across large indoor or outdoor sites with the AXIS P3737-PLE from Axis Communications. This multidirectional panoramic camera provides four independent 5 MP channels and a 3.2–8.1 mm varifocal lens to capture both broad overviews and the fine detail needed for investigations. With 360° IR illumination that avoids reflections, the P3737-PLE maintains clear images in low-light and no-light conditions.

Designed for demanding security and monitoring environments, the camera is IP66/67 rated and IK09 impact resistant for reliable outdoor performance. Power-over-Ethernet (PoE) support and efficient consumption lower installation and operating costs, while Axis Edge Vault hardware-based cybersecurity protects the device from tampering and unauthorized access. Deep learning analytics support enables smarter detection, reduced false positives, and seamless integration with VMS platforms for proactive incident response.

Ideal for transportation hubs, retail centers, campuses and critical infrastructure, the AXIS P3737-PLE is a versatile panoramic camera for commercial security deployments. Contact your Axis reseller to request a quote or schedule a demo.

Features

  • Complete 360° situational awareness with four independent 5 MP channels for wide-area monitoring and forensic detail
  • Reliable low-light and no-light coverage via 360° IR illumination for reflection-free night surveillance
  • Reduces installation complexity and operating cost with PoE support and highly efficient power consumption
  • Built-in Axis Edge Vault hardware security plus tamper-resistant IK09 housing protects system integrity and uptime
  • Supports deep learning analytics for accurate detection and fewer false alarms, enabling smarter security workflows
61 of 61 specifications
Technical specifications for AXIS P3737-PLE 4 x 5MP Multidirectional Panoramic Camera with Deep Learning, 3.2-8.1mm Varifocal Lens (Replaces P3719-PLE)
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line P
Product Name AXIS P3737-PLE
Product Type Fixed dome cameras
Product Model P3737-PLE
Product Series P37
Country of Origin MX
Manufacturer Part Number 02634-001
Supported Network Protocols IPv6
Technical Information
PoE Yes
Aperture f/1.9-3.24
Lens Type Varifocal
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Maximum Aperture f/3.2
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Minimum Focal Length 3.20mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Certifications
TAA Compliant Yes
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Ingress Protection Rating IP66, IP67
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Display & Graphics
Image Sensor Size 1/2.7"
Number of Sensors 4
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 100%
Operating Temperature (T-T) -30-50°C
Maximum Operating Temperature 122°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.0000lux
Longest Shutter Speed 1.5 Second
Shortest Shutter Speed 1/28000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.18-8.12mm
Lens Included Yes
Minimum Aperture f/3.2
Maximum Focal Length 8.10mm
Memory
SD Card Slot Yes
Memory Card Supported Yes
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 4.41lb
Durability Dustproof, Impact Resistant, Tamper Resistant, Waterproof
Form Factor Dome
Power Description
Maximum Power Consumption 23.30W
Power over Ethernet (PoE) Yes
Product Replacements & Other Alternatives
Model Number Replaces 01500-001
Storage
Storage Type Hybrid Cloud Storage
Recording Formats H.264, H.265 / HEVC
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK09
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364
