AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)

SKU: 02637-004 Axis Communications

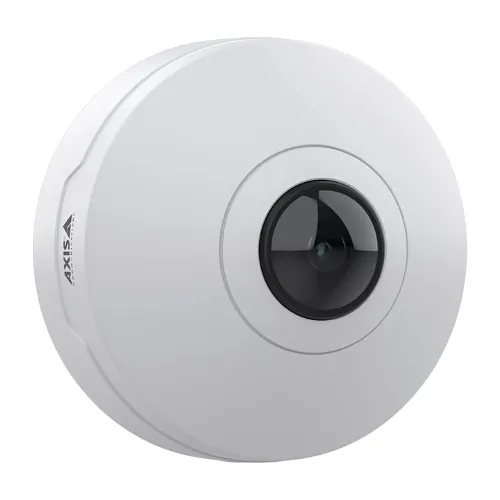

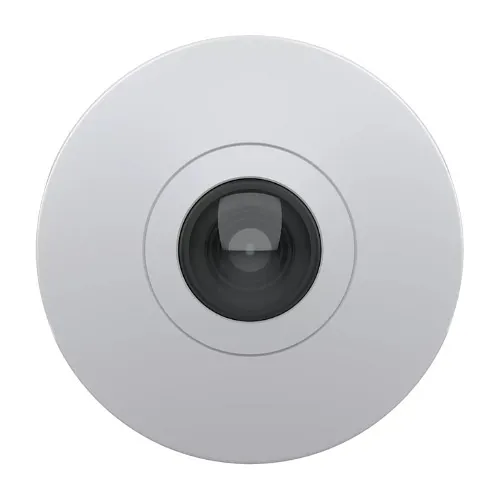

Image of Z4-02637004
Product images for AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P). 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • 360° or 180° coverage with no blind spots — capture entire rooms or wide open areas with a single camera to simplify surveillance and reduce hardware costs
  • On‑edge deep learning analytics (ARTPEC‑8) for accurate object classification — fewer false alarms and smarter security monitoring
  • Four simultaneous view streams with digital PTZ — focus on multiple zones or zoom in on incidents without moving the camera
  • Fast, simple installation with digital roll and PoE power — get operational quickly and reduce cabling and installation time
  • Compact, discreet and repaintable fisheye design — blends into indoor environments for unobtrusive monitoring in retail, offices, and public areas

Quick Specifications

Product Model
M4328-P
Brand Name
AXIS Communications
Product Line
M
Product Name
AXIS M4328-P US
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)

AXIS M4328-P M43 Series 12MP Indoor Panoramic IP Camera with Deep Learning, 1.2mm Fisheye Lens, White (Replaces M3068-P)

$760.87

Frequently Bought Together (3 items)

4 items selected

Total: $1,848.05

Product Information Tabs

Overview

Deliver complete, intelligent indoor surveillance with the AXIS M4328-P M43 Series 12MP panoramic IP camera. Designed for security and operational monitoring, this Axis Communications panoramic camera provides true 360° or 180° coverage at up to 30 fps with a 1.2 mm fisheye lens, eliminating blind spots and cutting the number of cameras needed. Built on the ARTPEC‑8 platform, it runs deep learning analytics and AXIS Object Analytics on the edge to accurately detect and classify people and vehicles, reducing false alarms and lowering bandwidth by sending only relevant events. Stream up to four individual views simultaneously and use digital PTZ to investigate incidents in detail without mechanical movement. PoE support and digital roll functionality speed deployment while the compact, repaintable housing keeps installations discreet. Ideal for retail spaces, lobbies, open‑plan offices and transportation hubs, the M4328‑P combines high-resolution surveillance, advanced analytics and simple installation to improve situational awareness and incident response. Contact sales to specify for your site or add the camera to your security solution today.

Features

  • 360° or 180° coverage with no blind spots — capture entire rooms or wide open areas with a single camera to simplify surveillance and reduce hardware costs
  • On‑edge deep learning analytics (ARTPEC‑8) for accurate object classification — fewer false alarms and smarter security monitoring
  • Four simultaneous view streams with digital PTZ — focus on multiple zones or zoom in on incidents without moving the camera
  • Fast, simple installation with digital roll and PoE power — get operational quickly and reduce cabling and installation time
  • Compact, discreet and repaintable fisheye design — blends into indoor environments for unobtrusive monitoring in retail, offices, and public areas
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line M
Product Name AXIS M4328-P US
Product Type Fixed dome cameras
Product Model M4328-P
Product Series M43
Manufacturer Part Number 02637-004
Supported Network Protocols IPv6 USGv6, NIST SP500-267
Technical Information
Aperture f/2.2
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/2.2
Maximum Frame Rate 30fps
Minimum Focal Length 1.2mm
Connectivity Technology Wired
Effective Camera Resolution 12MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
Display & Graphics
Image Sensor Size 1/2.3"
Maximum Video Resolution 2992 x 2992
Environmental Conditions
Operating Humidity 0.85
Operating Temperature (T-T) 32-104°F
Maximum Operating Temperature 104°F (40°C)
Exposure
Minimum Illumination 0.04 lux
Longest Shutter Speed 1/2 Second
Shortest Shutter Speed 1/8100 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.2mm
Lens Included Yes
Maximum Focal Length 1.2mm
Memory
Memory Card Supported Yes
Network & Communication
Remote Management Yes
Others
Model Number Replaces 01731-004, 01732-001, 01732-004
Physical Characteristics
Color White
Height 2"
Weight 10.58oz
Form Factor Fisheye
Power Description
Maximum Power Consumption 5W
Power over Ethernet (PoE) Yes
Product Information
Diameter 4"
Mount Type Bracket Mount, Gang Box Mount, Junction Box Mount, Tripod Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 2D Noise Reduction, 3D Digital Noise Reduction, Day/Night, Human Detection, Mirror, Noise Reduction, Privacy Masking, Vehicle Detection, Video Management System, White Balance, Wide Dynamic Range
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Indoor
Package Contents M4328-P Panoramic Camera Installation guide Owner authentication key
Country of Origin KH
Environmentally Friendly Yes
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6
