AXIS Q4809-PVE 26MP Panoramic IP Camera, 30fps, 180° Horizontal Coverage and 45° Vertical Coverage

SKU: 02658-001 Axis Communications
Image of Z4-02658001

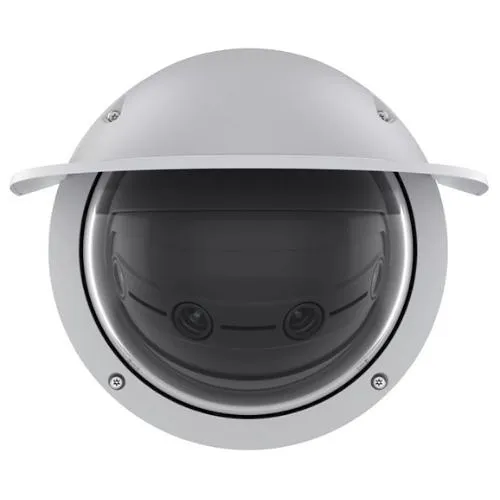

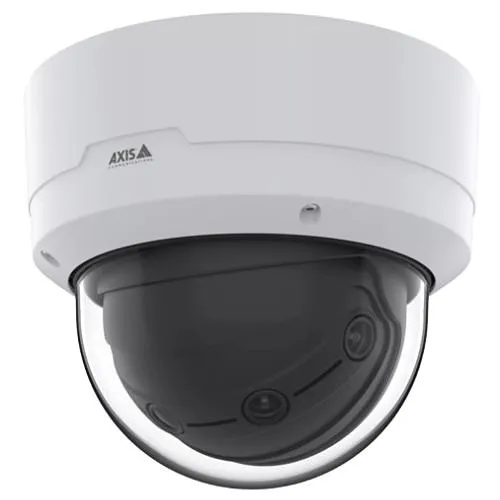

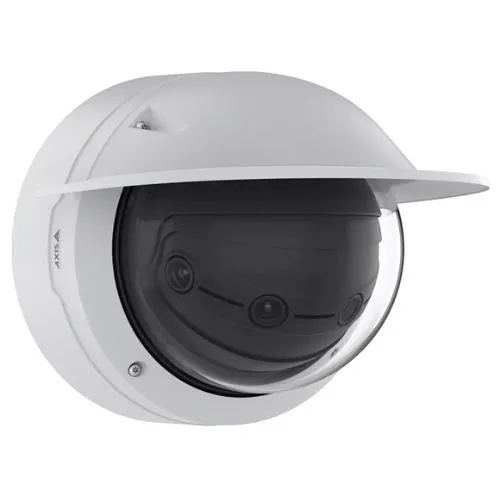

Product images for AXIS Q4809-PVE 26MP Panoramic IP Camera, 30fps, 180° Horizontal Coverage and 45° Vertical Coverage. 4 image(s) available. Click on image to view full size.

Key Features

  • Single-address 10K multisensor design simplifies installation and reduces infrastructure costs by delivering four stitched views through one IP.
  • 26MP at 30 fps with seamless stitching and lossless zoom provides crystal-clear 180° situational overviews so operators can identify details without additional cameras.
  • Built-in deep learning and on‑edge analytics (object detection, classification, tracking, counting) lower bandwidth needs and speed up event-driven responses.
  • Remote pan/tilt/roll and horizon correction accelerate commissioning and reduce on-site labor for faster, cost-efficient deployment.
  • Enterprise-grade security with Axis Edge Vault and FIPS 140-2 Level 2 key storage protects device integrity and ensures compliance for sensitive monitoring environments.

Quick Specifications

Product Model
Q4809-PVE
Brand Name
AXIS Communications
Product Line
Q
Product Series
Q48
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS Q4809-PVE 26MP Panoramic IP Camera, 30fps, 180° Horizontal Coverage and 45° Vertical Coverage

AXIS Q4809-PVE 26MP Panoramic IP Camera, 30fps, 180° Horizontal Coverage and 45° Vertical Coverage

$2,727.41

Frequently Bought Together (3 items)

4 items selected

Total: $3,814.59

Explore the details

Product information

02658-001

Overview

Achieve complete situational awareness across wide areas with the AXIS Q4809-PVE panoramic camera from Axis Communications. Designed for demanding security and surveillance applications, this panoramic camera delivers a single, seamless 180° horizontal and 45° vertical overview using a 26MP sensor at 30 fps, so you capture high-resolution detail across an entire scene without blind spots. Lossless zoom lets operators inspect critical areas without sacrificing image clarity, reducing the need for additional PTZ units.

Built on a dual Axis system-on-chip with a dedicated deep learning processing unit, the Q4809-PVE runs powerful on-edge analytics—object detection, classification, tracking, and counting—directly at the camera to minimize latency and network load. Remote pan/tilt/roll and horizon straightening simplify installation and calibration, lowering deployment time and ongoing maintenance. Robust cybersecurity features, including Axis Edge Vault with FIPS 140-2 Level 2 key storage, safeguard footage and device operations for enterprise monitoring and compliance.

Ideal for perimeter security, transportation hubs, campuses, and large retail environments—contact us to discuss deployment options or schedule a demo.

Features

  • Single-address 10K multisensor design simplifies installation and reduces infrastructure costs by delivering four stitched views through one IP.
  • 26MP at 30 fps with seamless stitching and lossless zoom provides crystal-clear 180° situational overviews so operators can identify details without additional cameras.
  • Built-in deep learning and on‑edge analytics (object detection, classification, tracking, counting) lower bandwidth needs and speed up event-driven responses.
  • Remote pan/tilt/roll and horizon correction accelerate commissioning and reduce on-site labor for faster, cost-efficient deployment.
  • Enterprise-grade security with Axis Edge Vault and FIPS 140-2 Level 2 key storage protects device integrity and ensures compliance for sensitive monitoring environments.
21 of 21 specifications
Technical specifications for AXIS Q4809-PVE 26MP Panoramic IP Camera, 30fps, 180° Horizontal Coverage and 45° Vertical Coverage
General Information
Brand Name AXIS Communications
Product Line Q
Product Model Q4809-PVE
Product Series Q48
Manufacturer Part Number 02658-001
Technical Information
PoE Yes
Aperture f/1.7
Video Formats H.264 / AVC, H.265 / HEVC
Wide Dynamic Range Yes
Camera
Image Sensor Type CMOS
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Image Sensor Size 1/2.3"
Environmental Conditions
Operating Temperature (T-T) -40-50°C
Lens
Focal Length 5.05mm
Memory
SD Card Slot Yes
Physical Characteristics
Durability Vandal Resistant
Power Description
Maximum Power Consumption 15.00W
Power over Ethernet (PoE) Yes
Product Replacements & Other Alternatives
Model Number Replaces 01819-001, Q3819-PVE
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
