AXIS 02734-001 2MP Outdoor IP Turret Camera, 2.8-13mm Fixed Lens

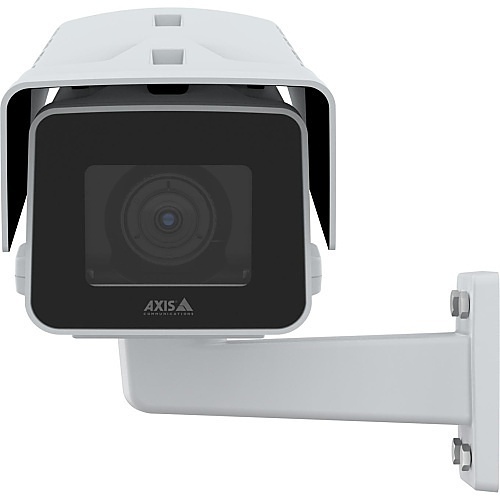

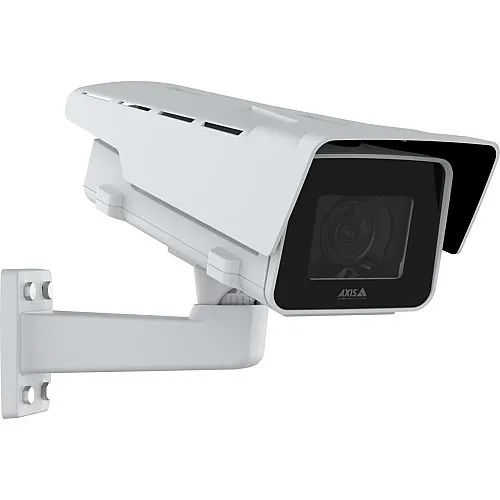

Image of 3
Key Features
- Delivers reliable 1080p clarity day and night so security teams can identify people and incidents with confidence
- Rugged all-weather design (IP66/IP67, IK10, NEMA 4X) and wide -40 °C to 60 °C range for uninterrupted outdoor surveillance
- Versatile 2.8–13 mm varifocal lens with i-CS support for fast field-of-view adjustment to match site-specific monitoring needs
- Simplified installation and uptime with PoE power, redundant DC input, onboard storage and Axis Edge Vault cybersecurity
- Enhanced image quality in challenging light using Lightfinder 2.0 and Forensic WDR for better detail recovery and forensic evidence
Quick Specifications
- Brand Name
- AXIS Communications
- Manufacturer
- Axis Communications
- Product Line
- P
- Product Name
- AXIS P1385-E
Product Information Tabs
Overview
Built for dependable outdoor surveillance, the AXIS 02734-001 provides clear, actionable 2MP (1080p) video that helps security teams detect, verify and respond faster. This Axis Communications outdoor IP turret/box camera combines Lightfinder 2.0 and Forensic WDR to preserve color and detail in low light and high-contrast scenes, while a 2.8–13 mm varifocal lens (i-CS) lets integrators tailor the field of view for perimeter, parking, transit or retail applications.
Designed to perform in harsh environments, the camera meets IP66/IP67 and IK10 standards and operates from -40 °C to 60 °C, reducing downtime in extreme climates. Power-over-Ethernet and redundant DC options simplify cabling and keep critical monitoring online; onboard memory and edge security features (Axis Edge Vault) protect recorded data and simplify compliance. With support for AI analytics and ONVIF interoperability, this Axis fixed camera integrates seamlessly into modern video management systems for smart detection, remote monitoring and forensic review. Backed by a 5-year warranty, it’s engineered for long-term installations. Contact your Axis reseller to specify lenses or accessories and deploy the AXIS 02734-001 for robust perimeter or facility surveillance.
Features
- Delivers reliable 1080p clarity day and night so security teams can identify people and incidents with confidence
- Rugged all-weather design (IP66/IP67, IK10, NEMA 4X) and wide -40 °C to 60 °C range for uninterrupted outdoor surveillance
- Versatile 2.8–13 mm varifocal lens with i-CS support for fast field-of-view adjustment to match site-specific monitoring needs
- Simplified installation and uptime with PoE power, redundant DC input, onboard storage and Axis Edge Vault cybersecurity
- Enhanced image quality in challenging light using Lightfinder 2.0 and Forensic WDR for better detail recovery and forensic evidence
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | P |
| Product Name | AXIS P1385-E |
| Product Type | Fixed cameras |
| Product Model | 02734-001 |
| Product Series | P13 |
| Manufacturer Part Number | 02734-001 |
| Supported Network Protocols | IPv6 USGv6, NIST SP500-267 |
| Technical Information | |
| Aperture | f/1.4 |
| Material | Aluminum, Plastic |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 4.6x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265 |
| Lens Mount Type | i-CS |
| Maximum Aperture | f/1.4 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Image Sensor Size | 1/2.8" |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 10-100% |
| Operating Temperature (T-T) | -40-104°F |
| Maximum Operating Temperature | 104°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 1/37000 s |
| Shortest Shutter Speed | 1/37000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8-13mm |
| Lens Included | Yes |
| Maximum Focal Length | 13mm |
| Memory | |
| Memory Card Supported | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | 01533-001, 01533-031, P1375-E |
| Physical Characteristics | |
| Color | White |
| Depth | 15.92" |
| Width | 6.25" |
| Height | 5.56" |
| Weight | 7lb |
| Durability | Durable, Dustproof, Impact Resistant, Waterproof |
| Form Factor | Box |
| Power Description | |
| Input Voltage | 10-28V DC |
| Maximum Power Consumption | 26W |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Mount Type | Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 2D Noise Reduction, 3D Noise Reduction, Audio Detection, Day/Night, Defog, Forensic WDR, Noise Reduction, Privacy Masking, White Balance, Wide Dynamic Range |
| Certifications | CISPR 32 Class A, CISPR 35, EN 50121-3-2, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Indoor/Outdoor | Outdoor |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Certifications & Standards | ONVIF G, ONVIF M, ONVIF S, ONVIF T |
| Environmental Certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
