AXIS P1388-LE 8MP Outdoor Box Camera

SKU: 02738-001 Axis Communications

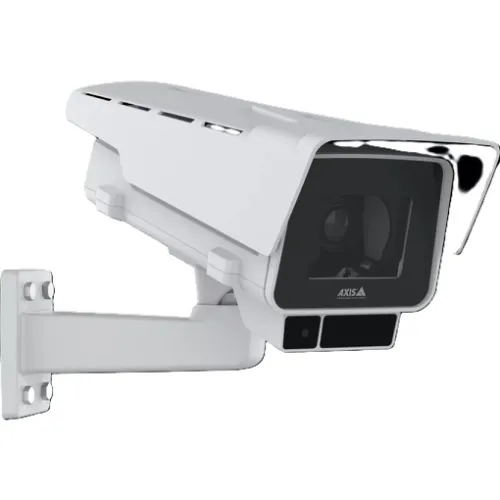

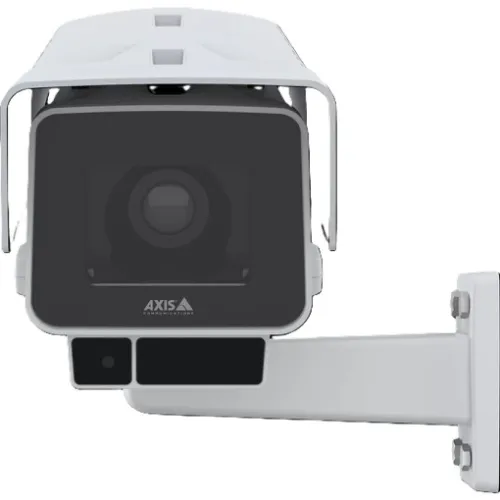

Image of Z4-02738001
Product images for AXIS P1388-LE 8MP Outdoor Box Camera. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Purpose-built for 24/7 perimeter security: reliable image quality and operation from -40 °C to 60 °C for critical outdoor monitoring
  • Superior evidence-grade imaging: 8 MP (3840 x 2160) resolution with Lightfinder 2.0 and Forensic WDR for clear color and detail in challenging light
  • Built-in edge analytics and DLPU support: run deep-learning analytics on the camera to reduce bandwidth and speed incident response
  • Hardened, all-weather design: IP66/IP67 and IK10-rated enclosure with front heater and OptimizedIR to prevent fogging and ice
  • Flexible, secure installations: PoE and redundant DC power options plus Axis Edge Vault cybersecurity to protect device and data

Quick Specifications

Product Model
P1388-LE
Brand Name
AXIS Communications
Product Line
P
Product Name
AXIS P1388-LE
View Full Technical Specifications

Explore the details

Product information

02738-001

Overview

Designed for demanding perimeter security and critical infrastructure monitoring, the AXIS P1388-LE 8MP Outdoor Box Camera delivers reliable, evidence-quality video around the clock. This Axis Communications box camera captures ultra-clear 8 MP (3840 x 2160) imagery and combines Lightfinder 2.0, Forensic WDR and OptimizedIR to preserve color and detail in low light, backlight and nighttime scenes. Built to perform in extreme environments, it operates from -40 °C to 60 °C and meets IP66/IP67 and IK10 ratings for dust, water and impact resistance—plus a front heater keeps the lens free of ice and fog. On-device DLPU and edge analytics reduce network load and accelerate detection, while PoE and redundant DC power give installation flexibility. Axis Edge Vault provides hardware-level cybersecurity to safeguard cameras and sensitive surveillance data. Ideal for outdoor security, campus monitoring, transportation hubs and industrial sites, the P1388-LE is built to protect what matters. Contact your Axis reseller to specify and deploy this camera in your next surveillance project.

Features

  • Purpose-built for 24/7 perimeter security: reliable image quality and operation from -40 °C to 60 °C for critical outdoor monitoring
  • Superior evidence-grade imaging: 8 MP (3840 x 2160) resolution with Lightfinder 2.0 and Forensic WDR for clear color and detail in challenging light
  • Built-in edge analytics and DLPU support: run deep-learning analytics on the camera to reduce bandwidth and speed incident response
  • Hardened, all-weather design: IP66/IP67 and IK10-rated enclosure with front heater and OptimizedIR to prevent fogging and ice
  • Flexible, secure installations: PoE and redundant DC power options plus Axis Edge Vault cybersecurity to protect device and data
68 of 68 specifications
Technical specifications for AXIS P1388-LE 8MP Outdoor Box Camera
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line P
Product Name AXIS P1388-LE
Product Type Fixed cameras
Product Model P1388-LE
Product Series P13
Manufacturer Part Number 02738-001
Supported Network Protocols IPv6 USGv6, NIST SP500-267
Technical Information
Aperture f/1.5
Lens Type Varifocal
Night Vision Yes
Optical Zoom 2.6x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Lens Mount Type i-CS
Maximum Aperture f/1.5
Video Resolution Yes
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 3.9mm
Connectivity Technology Wired
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 164.04 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Image Sensor Size 1/1.8"
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 1
Operating Temperature (T-T) -40-104°F
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Minimum Illumination 0.03 lux
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/66500 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.9-10mm
Lens Included Yes
Maximum Focal Length 10mm
Memory
Memory Card Supported Yes
Network & Communication
Remote Management Yes
Others
Model Number Replaces 01811-001, 01811-031, P1378-LE
Physical Characteristics
Color White
Depth 6.25"
Width 10.68"
Height 6.54"
Weight 5.42lb
Durability Dustproof, Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant, Waterproof
Form Factor Box
Package Type Box
Power Description
Input Voltage 10V DC, 28V DC
Maximum Power Consumption 26W
Power over Ethernet (PoE) Yes
Product Information
Mount Type Wall Mount
Storage
Storage Type Memory Card/Cloud
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Audio Detection, Built-in IR LED, Day/Night, Electronic Image Stabilization, Gain Control, Motion Detection, Multi-view Stream, PTZ, SD Card Local Storage, Video Management System, Wide Dynamic Range
Certifications CISPR 32 Class A, CISPR 35, EN 50121-3-2, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Indoor/Outdoor Outdoor
Package Contents AXIS TQ1003-E Wall Mount, Camera, Installation Guide, Owner authentication key, Terminal block connectors
Environmentally Friendly Yes
Impact Protection Rating IK10
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification EU RoHS, REACH, RoHS
