AXIS FA1105 FA Series 1080p Indoor WDR Sensor Unit, 2.8mm Pinhole Lens, Black

SKU: 0913-001 Axis Communications
Product images for AXIS FA1105 FA Series 1080p Indoor WDR Sensor Unit, 2.8mm Pinhole Lens, Black. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

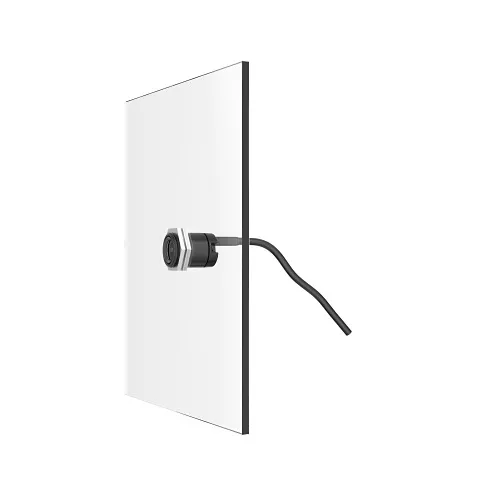

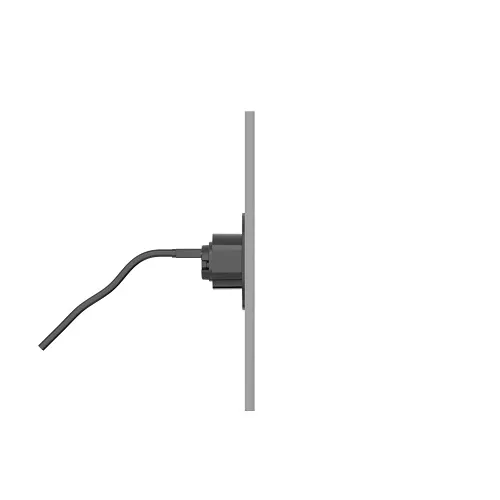

  • Ultra-discreet flush-mount design that hides installation for covert indoor security and loss-prevention monitoring
  • Forensic WDR and 1080p resolution capture usable evidence in challenging lighting for clearer investigations
  • 2.8mm pinhole lens with a wide 111° horizontal field of view to monitor wider areas from tight or confined spaces
  • Plugs into AXIS FA Main Units with an 8 m cable for simple integration into existing surveillance systems
  • NDAA-compliant, reliable indoor sensor unit built for retail, banking, ATM, and machine-integration surveillance applications

Quick Specifications

Brand Name
AXIS Communications
Manufacturer
Axis Communications
Product Line
F
Product Name
AXIS FA1105 SENSOR UNIT
View Full Technical Specifications

Frequently Bought Together

This Item
AXIS FA1105 FA Series 1080p Indoor WDR Sensor Unit, 2.8mm Pinhole Lens, Black

AXIS FA1105 FA Series 1080p Indoor WDR Sensor Unit, 2.8mm Pinhole Lens, Black

$163.70

Frequently Bought Together (2 items)

3 items selected

Total: $3,645.08

Product Information Tabs

Overview

Designed for discreet, high-quality indoor monitoring, the AXIS FA1105 FA Series sensor unit delivers concealed surveillance where traditional cameras can't go. This Axis Communications covert camera sensor unit provides 1080p resolution and Forensic WDR tuned for motion, so security teams capture usable footage in mixed lighting—critical for retail loss prevention, bank teller monitoring, and ATMs. The 2.8mm pinhole lens and wide 111° horizontal field of view let you cover more area while hiding the camera in walls, ceilings, or metal panels; only a small aperture is visible for maximum concealment. Built for integration, the FA1105 connects to AXIS FA Main Units via an included 8 m cable for quick installation and centralized monitoring. NDAA compliance and industrial certifications ensure the sensor meets enterprise security and deployment standards. Ideal for businesses that need covert, evidence-grade video without sacrificing image quality, the AXIS FA1105 offers a practical solution for sensitive surveillance and security monitoring. Add it to your security system or contact our sales team to discuss discreet installation options.

Features

  • Ultra-discreet flush-mount design that hides installation for covert indoor security and loss-prevention monitoring
  • Forensic WDR and 1080p resolution capture usable evidence in challenging lighting for clearer investigations
  • 2.8mm pinhole lens with a wide 111° horizontal field of view to monitor wider areas from tight or confined spaces
  • Plugs into AXIS FA Main Units with an 8 m cable for simple integration into existing surveillance systems
  • NDAA-compliant, reliable indoor sensor unit built for retail, banking, ATM, and machine-integration surveillance applications
General Information
Brand Name AXIS Communications
Manufacturer Axis Communications
Product Line F
Product Name AXIS FA1105 SENSOR UNIT
Product Type Sensor units
Product Model FA1105
Product Series FA11
Manufacturer Part Number 0913-001
Technical Information
Aperture f/2.0
Field of View Horizontal, Vertical
Lens Mount Type M12
Maximum Frame Rate 30fps
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Display & Graphics
Image Sensor Size 1/3"
Maximum Video Resolution 1920 x 1080
Exposure
Minimum Illumination 0.2 lux
Lens
Focal Length 2.8mm
Physical Characteristics
Color Black
Product Information
Mount Type Flush Mount
Miscellaneous
Compatibility Axis FA1105 Dome Sensor
Certifications EN 55024, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN32 Class B, KC KN35, RCM AS/NZS CISPR 32 Class B, VCCI Class B
Indoor/Outdoor Indoor
Country of Origin TH
Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
