Genesis 10025501 22/2 Stranded Zip Cable, General Purpose, CM, 500' (152.4 m) Pull Box, White

SKU: 10025501 Genesis

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Genesis 10025501 22/2 Stranded General Purpose Zip Cable, 500' (152.4m) REELEX Pull Box, White

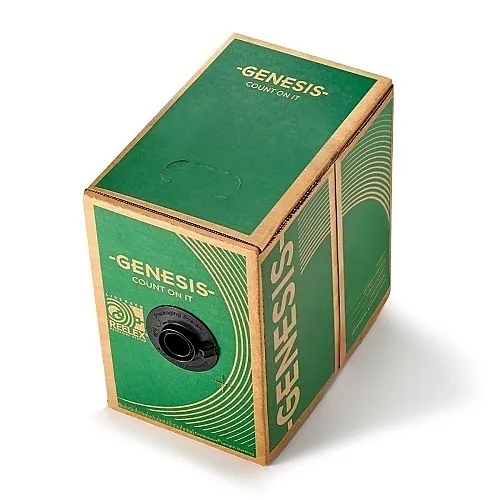

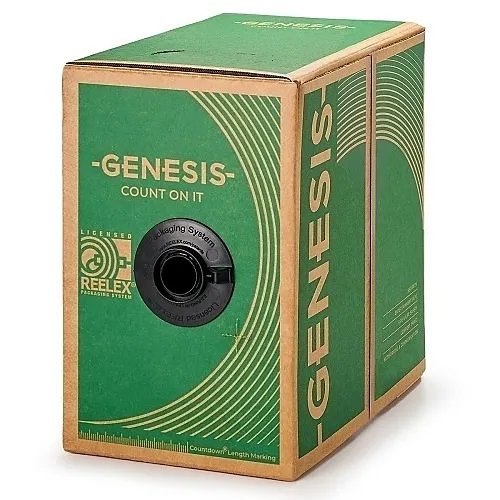

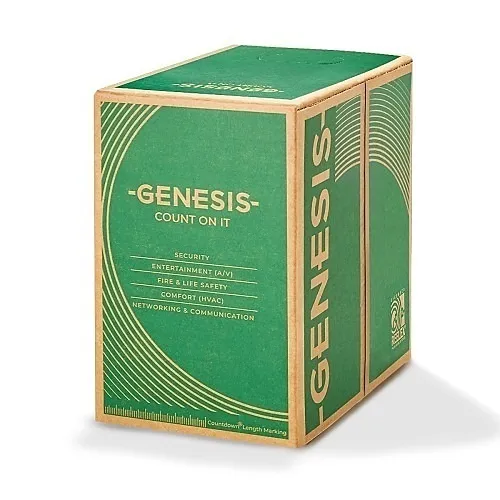

Product images for Genesis 10025501 22/2 Stranded Zip Cable, General Purpose, CM, 500' (152.4 m) Pull Box, White. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Quick pull-apart zip design speeds installations for large speaker, alarm or intercom runs
  • Stranded 22/2 bare copper conductors deliver reliable signal transfer and low-voltage drop for clear audio and monitoring
  • 500' pull-box with countdown markings reduces waste and keeps job sites organized
  • Flexible PVC insulation and stranded construction make routing through conduits and tight spaces easier
  • UV-resistant construction and wide temperature rating help maintain performance in varied indoor environments
  • RoHS/REACH and TAA compliance provide peace of mind for commercial and government projects

Quick Specifications

Product Model
10025501
Brand Name
Genesis
Product Name
10025501 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

For fast, dependable low-voltage installs, the Genesis 10025501 22/2 stranded zip cable is built to keep systems running cleanly and on schedule. This Genesis unjacketed zip cable is ideal for security, surveillance, speaker, intercom and monitoring applications where clear signal transmission matters. The 22/2 stranded bare copper conductors provide excellent conductivity and low-voltage drop, while PVC insulation and a general-purpose CM rating ensure consistent performance. Packaged in a 500' pull box with countdown length markings, it minimizes downtime and waste on the job site and speeds multi-run deployments. The cable’s flexible stranded build eases pulls through conduit and tight pathways, and its sunlight-resistant properties and -20 °C to 60 °C rating support durable indoor installations. TAA compliant and RoHS/REACH certified, this cable meets commercial procurement and environmental standards. Choose the Genesis 22/2 zip cable for cost-effective, professional low-voltage wiring — order a pull box for your next security, audio, or monitoring project and install with confidence.

Features

  • Quick pull-apart zip design speeds installations for large speaker, alarm or intercom runs
  • Stranded 22/2 bare copper conductors deliver reliable signal transfer and low-voltage drop for clear audio and monitoring
  • 500' pull-box with countdown markings reduces waste and keeps job sites organized
  • Flexible PVC insulation and stranded construction make routing through conduits and tight spaces easier
  • UV-resistant construction and wide temperature rating help maintain performance in varied indoor environments
  • RoHS/REACH and TAA compliance provide peace of mind for commercial and government projects
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 10025501 Control Cable
Product Type Access & Security Cable
Product Model 10025501
Packaged Quantity 1
Manufacturer Part Number 10025501
Technical Information
Material Bare Copper
Shielding No
Cable Type Zip
Jacket Type General Purpose
Cable Rating General Purpose
Conductor Count 1
Jacket Material PVC
Number of Pairs 1
Device Supported Burglar Alarm, Intercom, Speaker
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 22AWG
Number of Conductors 2
Connector on First End Bare Wire
Core/Cladding Diameter 22/2
Connector on Second End Bare Wire
Certifications
TAA Compliant Yes
Physical Characteristics
Color White
Weight 3.60 lb
Cable Length 500'
Package Type Pull Box
Insulation Material PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded, Zip Cord
Indoor/Outdoor Indoor
Country of Origin US
Environmentally Friendly Yes
Environmental Certification RoHS
