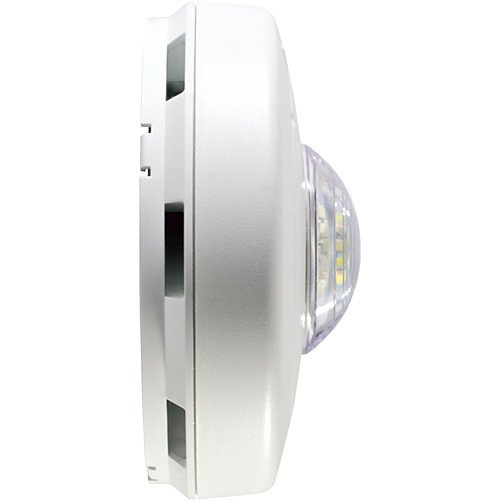

BRK SLED177 AC Hardwired Signaling Device with 177 Candela Strobe Light
Image of 3
Key Features
- Ensures ADA-compliant visual alerts with a powerful 177 candela LED strobe to wake and protect hearing-impaired occupants
- Reduces installation complexity with hardwired 120V AC power and a slim, bracket/ceiling/wall-mount form factor for versatile placement
- Maintains site-wide coordination using built-in strobe synchronization so multiple units flash in unison for clear, consistent notification
- Meets code and reliability expectations with 1Hz flash rate, UL 1638 listing and a 10-year end-of-life timer for predictable maintenance planning
- Distinguishes threats with Smart Strobe patterns (separate smoke vs CO signaling) and backed by a 10-year limited warranty for long-term peace of mind
Quick Specifications
- Product Model
- SLED177
- Brand Name
- BRK Electronics
- Product Name
- AC Hardwired Signaling Device With 177 Candela Strobe Light
- Product Type
- Security Strobe Light
Explore the details
Product information
1038510
Overview
When occupant safety and regulatory compliance are priorities, the BRK Electronics SLED177 AC Hardwired Signaling Device delivers dependable, ADA-compliant visual alarms tailored for institutional and residential environments. This 177 candela LED strobe is engineered to provide a highly visible, 1Hz flash that wakes and notifies hearing-impaired residents in hotels, hospitals, dormitories and multifamily dwellings. Hardwired to 120V AC, the SLED177 installs cleanly to ceiling or wall brackets and integrates with existing fire alarm and monitoring systems for streamlined deployment.
Designed for security and life-safety professionals, the SLED177 supports strobe signal synchronization across multiple units to ensure unified alerts in corridors and sleeping areas. The Smart Strobe function differentiates smoke and carbon monoxide events, improving situational awareness for first responders and facility managers. Listed to UL 1638 and backed by a 10-year limited warranty and end-of-life timer, this BRK Electronics strobe reduces maintenance uncertainty while meeting code requirements.
Specify the SLED177 for projects that require reliable visual notification—ideal for fire alarm, security and monitoring systems in healthcare, hospitality and multifamily installations. Contact sales or order now to include ADA-compliant strobes in your next safety upgrade.
Features
- Ensures ADA-compliant visual alerts with a powerful 177 candela LED strobe to wake and protect hearing-impaired occupants
- Reduces installation complexity with hardwired 120V AC power and a slim, bracket/ceiling/wall-mount form factor for versatile placement
- Maintains site-wide coordination using built-in strobe synchronization so multiple units flash in unison for clear, consistent notification
- Meets code and reliability expectations with 1Hz flash rate, UL 1638 listing and a 10-year end-of-life timer for predictable maintenance planning
- Distinguishes threats with Smart Strobe patterns (separate smoke vs CO signaling) and backed by a 10-year limited warranty for long-term peace of mind
| General Information | |
|---|---|
| Brand Name | BRK Electronics |
| Manufacturer | Resideo-BRK |
| Product Name | AC Hardwired Signaling Device With 177 Candela Strobe Light |
| Product Type | Security Strobe Light |
| Product Model | SLED177 |
| Application/Usage | Dorm, Dormitory, Fire Alarm, Heat Detector, Hospital, Hotel, Motel, Residential, Signaling, Sleeping Area, Smoke Detector, Synchronization Module |
| Country of Origin | MX |
| Manufacturer Part Number | 1038510 |
| Technical Information | |
| Alarm Type | Visual |
| Connectivity Technology | Wired |
| Certifications | |
| Certifications & Standards | Listed to UL 1638 Standard |
| Environmental Conditions | |
| Sound Emission | 85dB |
| Minimum Operating Temperature | 40°F |
| Physical Characteristics | |
| Color | White |
| Width | 5.30" |
| Height | 2.40" |
| Lens Color | Clear |
| Form Factor | Bracket Mount, Ceiling Mount, Wall Mount |
| Power Description | |
| Power Source | Hardwired |
| Input Voltage | 120V AC |
| Product Information | |
| Length | 5.30" |
| Mount Type | Bracket Mount |
| Bulb/Tube Type | LED |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | SL177 |
| Warranty | |
| Limited Warranty | 10-Year |
