HES 10620417 Electric Strike with Latch Bolt Strike Monitor, 12/24V DC
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 7
Key Features
- Heavy-duty protection: 3,000 lb holding strength and stainless steel construction deliver reliable perimeter security for high-traffic commercial doors.
- Continuous operation reliability: Factory-tested to over 1,000,000 cycles for long life and lower maintenance costs in access control systems.
- Real-time status monitoring: Built-in latch bolt/strike monitor provides feedback for security and surveillance integrations, improving incident response and auditability.
- Flexible power and compatibility: Dual 12/24V DC operation and compatibility with cylindrical and mortise locks simplify integration into existing access control hardware.
- Installer-friendly design: Non-handed, full keeper shims and plug-in connector reduce installation time and on-site adjustments.
- Code-ready and supported: UL listed with a 5-year limited warranty for commercial and institutional deployments.
Quick Specifications
- Product Model
- 10620417
- Brand Name
- HES by ASSA ABLOY
- Product Name
- HES SB:1006-12/24D-630-Lbsm 10620415 SB:1006-12/24D-630-Lbsm Strk Body,Fse,Ltchblt/Strk Monus32D 1006(10620415)
- Product Type
- Electric Strike
Product Information Tabs
Overview
Secure busy entrances with the HES by ASSA ABLOY 10620417 electric strike — engineered for critical access control where strength and monitoring matter. This HES 1006-series electric strike pairs heavy-duty stainless steel construction with a built-in latch bolt/strike monitor so security teams and access control systems receive real-time status for improved surveillance and incident response. Rated for 3,000 lb holding strength and factory-tested to more than 1,000,000 cycles, it delivers the durability required for commercial, healthcare, education and government facilities. Dual 12/24V DC operation and non-handed design simplify integration with cylindrical or mortise locks and existing door frames, while plug-in connectors and keeper shims speed installation. UL listed and backed by a 5-year limited warranty, the 10620417 balances rugged performance with professional-grade monitoring for modern security infrastructures. Ideal for perimeter doors, secure entries and retrofit projects — contact your rep or order now to add robust, monitored locking to your access control solution.
Features
- Heavy-duty protection: 3,000 lb holding strength and stainless steel construction deliver reliable perimeter security for high-traffic commercial doors.
- Continuous operation reliability: Factory-tested to over 1,000,000 cycles for long life and lower maintenance costs in access control systems.
- Real-time status monitoring: Built-in latch bolt/strike monitor provides feedback for security and surveillance integrations, improving incident response and auditability.
- Flexible power and compatibility: Dual 12/24V DC operation and compatibility with cylindrical and mortise locks simplify integration into existing access control hardware.
- Installer-friendly design: Non-handed, full keeper shims and plug-in connector reduce installation time and on-site adjustments.
- Code-ready and supported: UL listed with a 5-year limited warranty for commercial and institutional deployments.
| General Information | |
|---|---|
| Brand Name | HES by ASSA ABLOY |
| Product Name | HES SB:1006-12/24D-630-Lbsm 10620415 SB:1006-12/24D-630-Lbsm Strk Body,Fse,Ltchblt/Strk Monus32D 1006(10620415) |
| Product Type | Electric Strike |
| Manufacturer Part Number | 10620417 |
| Technical Information | |
| Material | Stainless Steel |
| Holding Strength | 3000 lb |
| Security Configuration | Fail Safe |
| Compatible Door Lock Type | Cylindrical, Mortise |
| Compatible Door Frame Type | Metal, Wood |

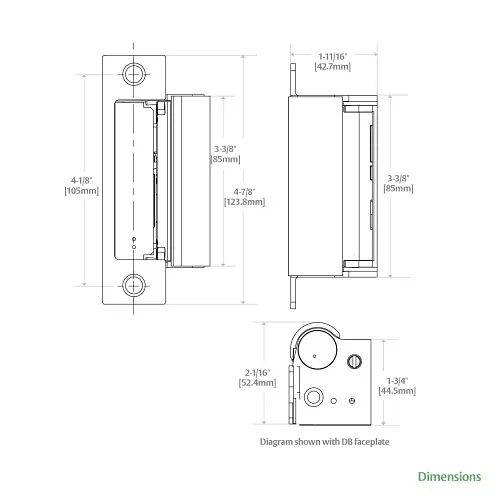

| Physical Characteristics | |
| Depth | 2.06" |
| Width | 1.68" |
| Height | 4.87" |
| Power Description | |
| Input Voltage | 12V DC, 24V DC |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Adjustable Keeper, Latchbolt Monitor |
| Country of Origin | United States |
| Certifications & Standards | UL Listed |
