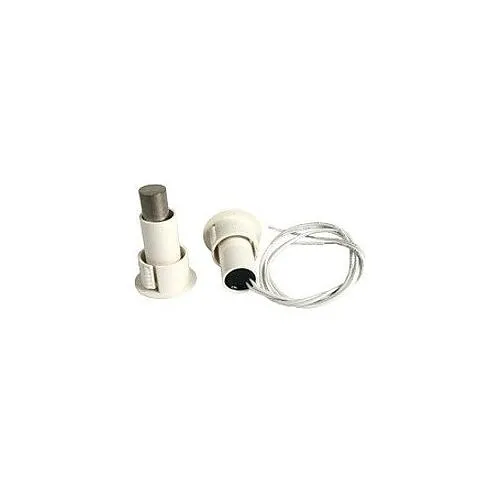

Edwards Signaling 1078C-M Recessed Steel Door Magnetic Contact with Wire Leads, 3/4" Diameter, Closed Loop, 3/8" Gap Size, Brown
Image of 2
Key Features
- Reliable steel-door protection engineered for commercial security: designed to isolate the magnet from surrounding steel for consistent make/break performance and fewer false alarms
- Fast, tamper-resistant installation: recessed unibody housing with ribbed sides and wire leads speeds retrofit and new-door installs without adhesives
- Durable, weather-ready design: IP67 protection and rugged ABS construction withstands harsh environments and reduces maintenance
- Industry-grade reliability: closed-loop (N.O.) contact and rare-earth magnet provide predictable gap performance (approx. 3/8") for secure monitoring
- UL/ULC listed and multi-voltage capable: supports AC/DC systems to integrate cleanly with access control, intrusion, and surveillance systems
Quick Specifications
- Product Model
- 1078C-M
- Brand Name
- Edwards Signaling
- Product Name
- 1078C Series 3/4" Diameter Steel Door Switch With Wire Leads
- Product Type
- Magnetic Contact
Frequently Bought Together
Edwards Signaling 1078C-M Recessed Steel Door Magnetic Contact with Wire Leads, 3/4" Diameter, Closed Loop, 3/8" Gap Size, Brown
$20.40
4 items selected
Total: $99.73
Explore the details
Product information
1078C-M
Overview
Keep commercial steel doors monitored and secure with the Edwards Signaling 1078C-M recessed magnetic contact. Purpose-built for high-traffic steel-door applications, this magnetic contact delivers consistent closed-loop (N.O.) monitoring and predictable 3/8" gap performance so security teams can rely on accurate intrusion detection and fewer false alarms. The compact 3/4" diameter recessed profile and ribbed, unibody housing enable a clean, tamper-resistant installation that fits top channels without gluing and accepts wire-lead termination for fast integration into wired access control and alarm panels.
Designed for demanding environments, the 1078C-M combines ABS/polyurethane construction with IP67-level protection and UL/ULC listings, minimizing downtime and maintenance for building security, surveillance, and monitoring programs. The magnet housing isolates the magnet from the surrounding steel to maximize make-and-break distances, ensuring dependable contact operation in commercial door frames.
Specify the Edwards Signaling 1078C-M for retrofit or new-build door monitoring on offices, retail, healthcare, and institutional sites. Contact us or add to cart to upgrade your intrusion detection and access-control installations today.
Features
- Reliable steel-door protection engineered for commercial security: designed to isolate the magnet from surrounding steel for consistent make/break performance and fewer false alarms
- Fast, tamper-resistant installation: recessed unibody housing with ribbed sides and wire leads speeds retrofit and new-door installs without adhesives
- Durable, weather-ready design: IP67 protection and rugged ABS construction withstands harsh environments and reduces maintenance
- Industry-grade reliability: closed-loop (N.O.) contact and rare-earth magnet provide predictable gap performance (approx. 3/8") for secure monitoring
- UL/ULC listed and multi-voltage capable: supports AC/DC systems to integrate cleanly with access control, intrusion, and surveillance systems
| General Information | |
|---|---|
| Brand Name | Edwards Signaling |
| Manufacturer | Carrier |
| Product Name | 1078C Series 3/4" Diameter Steel Door Switch With Wire Leads |
| Product Type | Magnetic Contact |
| Product Model | 1078C-M |
| Product Series | 1078C |
| Manufacturer Part Number | 1078C-M |
| Technical Information | |
| Material | ABS, Polyurethane |
| Standard Gap | 0.35" |
| Application/Usage | Commercial |
| Power Consumption | 7.50W |
| Termination Style | Wire Leads |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Color | Brown |
| Power Description | |
| Power Source | AC, DC |
| Input Current | 500mA |
| Input Voltage | 100V AC, 100V DC |
| Product Information | |
| Length | 12" |
| Diameter | 0.8" |
| Contact Type | Closed Loop, N.O. |
| Installation Type | Commercial |
| Miscellaneous | |
| Features | Durable |
| Country of Origin | CN |
| Certifications & Standards | UL Listed ULC Listed NEMA Ratings: 1, 2, 3, 4, 4X, 5, 6, 12 Protection Class: IP67 |
