ORION Images 10IPHPVM 10" Full HD IP Public View LED Monitor with Built-In 2.2MP CMOS Camera and Motion-Detection Sensor
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Visible deterrent and live monitoring: built-in HD camera and motion detection make the PVM an active theft-deterrent and awareness tool for retail and public spaces
- Network-ready with ONVIF and PoE: easily integrate to VMS/NVR systems and power the unit over Ethernet for streamlined installations
- Reliable 24/7 commercial design: FCC Class A, metal chassis and CCTV-grade electronics engineered for continuous surveillance operation
- Local recording and alerts: micro SD playback plus configurable motion-triggered recording and LED/message notifications for immediate response
- Compact, mountable and high-clarity display: 10-inch WXGA (1280 x 800) LED screen with wide viewing angles for clear public view monitoring
Quick Specifications
- Product Model
- 10IPHPVM
- Brand Name
- ORION Images
- Product Name
- 10IPHPVM Widescreen LCD Monitor
- Product Type
- LCD Monitor
Explore the details
Product information
10IPHPVM
Overview

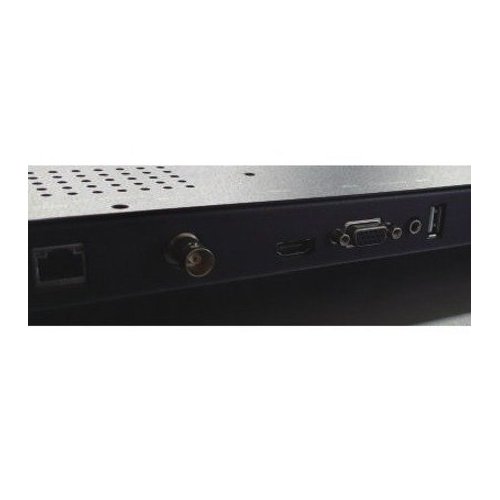

Deploy a compact, commercial-grade public view monitor that actively reduces theft and increases situational awareness. The ORION Images 10IPHPVM IP PVM monitor combines a 10-inch WXGA (1280 x 800) LED display with a built-in 2.2MP/720p CMOS camera, ONVIF IP output and motion-detection to deliver continuous, networked surveillance for retail, hospitality and transportation environments. Its PoE capability and RJ-45 network port simplify installation and integration with existing VMS/NVR systems, while the micro SD recorder stores local clips for fast evidence retrieval. Designed for 24/7 operation, the metal chassis and CCTV-grade circuitry ensure reliable monitoring in demanding commercial applications. Use the monitor’s message display, LED alerts and wide 170° viewing angle to convey security presence and guide customer behavior. Ideal as a visible surveillance station or supplemental monitoring point, the 10IPHPVM helps protect assets, deter incidents and streamline incident review. Add this ORION Images IP PVM to your security deployment for immediate on-site deterrence and networked video monitoring.
Features
- Visible deterrent and live monitoring: built-in HD camera and motion detection make the PVM an active theft-deterrent and awareness tool for retail and public spaces
- Network-ready with ONVIF and PoE: easily integrate to VMS/NVR systems and power the unit over Ethernet for streamlined installations
- Reliable 24/7 commercial design: FCC Class A, metal chassis and CCTV-grade electronics engineered for continuous surveillance operation
- Local recording and alerts: micro SD playback plus configurable motion-triggered recording and LED/message notifications for immediate response
- Compact, mountable and high-clarity display: 10-inch WXGA (1280 x 800) LED screen with wide viewing angles for clear public view monitoring
| General Information | |
|---|---|
| Brand Name | ORION Images |
| Manufacturer | ORION Images Corporation |
| Product Name | 10IPHPVM Widescreen LCD Monitor |
| Product Type | LCD Monitor |
| Product Model | 10IPHPVM |
| Country of Origin | KR |
| Manufacturer Part Number | 10IPHPVM |
| Technical Information | |
| Webcam | Yes |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Audio | |
| Speakers | No |
| Display & Graphics | |
| Pixel Pitch | 6.7mil |
| Screen Size | 10" |
| Number of Screens | 1 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 1.90" |
| Width | 10.30" |
| Height | 8.30" |
| VESA Mount Standard | 75 x 75 |
| VESA Mount Compatible | Yes |
| Product Information | |
| Mount Type | Ceiling Mount, Wall Mount |
| Display Screen Type | LED |
| Video | |
| Graphics Mode | Full HD |
| Brightness (Nit) | 350 |
| Maximum Resolution | 1280 x 800 |
| Native Contrast Ratio | 33.334027777777777 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 3D Comb Filter, Noise Reduction |
