Sentinel 111S08080090C34 CAT6 RJ45 Plug for Larger Size Conductors (.044-.048") with Patented Conductive NEXT Reduction System
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

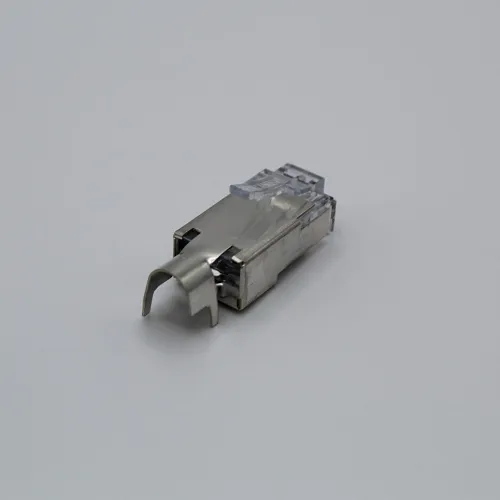

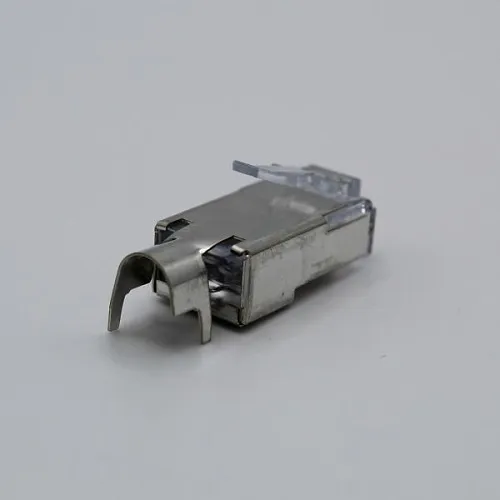

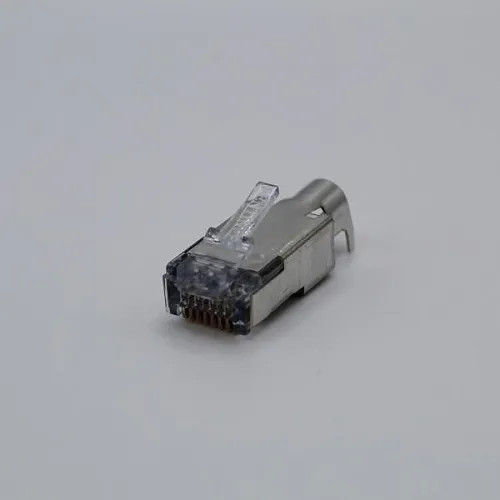

Image of 4
Key Features
- Supports larger insulated conductors (.044-.048") so installers can terminate thicker 24AWG stranded Cat6 cables reliably
- Patented Conductive NEXT Reduction System reduces crosstalk for clearer Ethernet signals in security and surveillance networks
- Shielded RJ45 design with integral C CRIMP improves shield continuity and provides enhanced strain relief in high-EMI environments
- 4-over-4 contact geometry isolates pairs to improve pair-to-pair separation and uphold Cat6 performance
- US-made, RoHS/REACH/FCC compliant construction for dependable, code-friendly installations in commercial monitoring and networking systems
Quick Specifications
- Product Model
- 111S08080090C34
- Brand Name
- Sentinel
- Country of Origin
- US
- Manufacturer Part Number
- 111S08080090C34
Explore the details
Product information
111S08080090C34
Overview
Optimize high-performance network runs with the Sentinel 111S08080090C34 — a shielded CAT6 RJ45 plug engineered for larger insulated conductors. Designed for use with 24AWG stranded patch cables (for example ABA Elite 1000X Cat6 .272" OD), this network cable connector accepts .044"–.048" conductor diameters to ensure secure terminations where thicker insulation is required. The patented Conductive NEXT Reduction System and 4-over-4 contact design work together to minimize near-end crosstalk and preserve signal integrity across Ethernet links — critical for security, surveillance, and monitoring applications. Integral C CRIMP shielding and added cable stress relief maintain superior shield continuity and mechanical strength in installations exposed to vibration or electrical noise. FCC-, RoHS- and REACH-compliant and manufactured in the US, this Sentinel connector delivers a durable, field-friendly solution for installers and integrators who demand reliable performance in CCTV, access control, and enterprise networking deployments. Specify the 111S08080090C34 for your next security or data project to reduce rework and improve uptime.
Features
- Supports larger insulated conductors (.044-.048") so installers can terminate thicker 24AWG stranded Cat6 cables reliably
- Patented Conductive NEXT Reduction System reduces crosstalk for clearer Ethernet signals in security and surveillance networks
- Shielded RJ45 design with integral C CRIMP improves shield continuity and provides enhanced strain relief in high-EMI environments
- 4-over-4 contact geometry isolates pairs to improve pair-to-pair separation and uphold Cat6 performance
- US-made, RoHS/REACH/FCC compliant construction for dependable, code-friendly installations in commercial monitoring and networking systems
| General Information | |
|---|---|
| Brand Name | Sentinel |
| Country of Origin | US |
| Manufacturer Part Number | 111S08080090C34 |
| Technical Information | |
| Shielding | Yes |
| Power Description | |
| Voltage Rating | 30V AC, 57V DC |
| Miscellaneous | |
| Features | For ABA Elite 1000X Cat 6 400 24AWG Stranded CM Patch Cables - .272" OD, Incorporates a PATENTED CONDUCTIVE NEXT Reduction System. In addition to providing precise conductor alignment, the composite carbon/graphite fiber conductor load bar greatly reduces NEXT and return loss by absorbing reflections and channel, Shielded RJ45 plug with integral "C CRIMP" for increased shield effectiveness, added cable stress relief and additional strength, The conductors are isolated by the Conductor Load Bar and through Plastic Isolation/Insulation Barriers where contact termination is made, thereby improving electrical performance, Utilizes a 4 over 4 contact design (4 LONG and 4 SHORT) that provides increased isolation and spatial dispersion within the plug to minimize crosstalk and accepts .044" - 048" insulated conductor OD |
| Environmentally Friendly | Yes |
| Environmental Certification | FCC, REACH, RoHS |
