GeoVision GV-QSD5730 5MP H.265 Outdoor Low Lux WDR Pro IP Speed Dome Camera, 33x Optical Zoom, Black/White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- Long-range 33x optical zoom for precise identification at distance, reducing the need for multiple cameras
- 5MP resolution with H.265 compression delivers clear detail while cutting bandwidth and storage costs
- Low-light sensitivity (0.002 lux) and WDR Pro ensure reliable surveillance day or night in challenging lighting
- IP66-rated, temperature-tolerant housing supports outdoor security and continuous monitoring in harsh environments
- Smooth, accurate PTZ control with fast pan/tilt and preset/patrol scheduling for automated area coverage and rapid response
- Electronic Image Stabilization and Servo Feedback maintain steady, true-to-position views when subject to vibration or interference
Quick Specifications
- Brand Name
- GeoVision
- Manufacturer
- GeoVision, Inc
- Product Name
- 33x 5MP H.265 Low Lux WDR Pro IP Speed Dome
- Product Type
- Network Camera
Frequently Bought Together
GeoVision GV-QSD5730 5MP H.265 Outdoor Low Lux WDR Pro IP Speed Dome Camera, 33x Optical Zoom, Black/White
$1,385.24
4 items selected
Total: $3,145.40
Product Information Tabs
Overview
Designed for mission-critical surveillance, the GeoVision GV-QSD5730 PTZ speed dome gives security teams high-confidence monitoring for large outdoor areas. This GeoVision PTZ security camera pairs 5MP resolution (up to 2592 × 1944 @30fps) with efficient H.265 encoding to deliver crisp video while minimizing network load and storage costs. The 33x optical zoom and 0.002 lux low-light sensitivity let operators identify faces and license plates at distance, while WDR Pro balances contrast in scenes with strong backlighting.
Built for continuous outdoor operation, the IP66-rated dome withstands temperature extremes and environmental exposure. Advanced PTZ capabilities—including fast/slow pan-tilt control, programmable presets, patrols and Auto Pan—enable automated coverage and rapid manual response. Servo Feedback and Electronic Image Stabilization reduce drift and vibration, keeping zoomed-in targets steady for reliable evidence capture.
Ideal for perimeter protection, parking lots, campuses, and critical infrastructure monitoring, the GV-QSD5730 brings scalable, high-performance surveillance to any security deployment. Contact us for volume pricing or add this GeoVision speed dome to your network for robust, long-range monitoring.
Features
- Long-range 33x optical zoom for precise identification at distance, reducing the need for multiple cameras
- 5MP resolution with H.265 compression delivers clear detail while cutting bandwidth and storage costs
- Low-light sensitivity (0.002 lux) and WDR Pro ensure reliable surveillance day or night in challenging lighting
- IP66-rated, temperature-tolerant housing supports outdoor security and continuous monitoring in harsh environments
- Smooth, accurate PTZ control with fast pan/tilt and preset/patrol scheduling for automated area coverage and rapid response
- Electronic Image Stabilization and Servo Feedback maintain steady, true-to-position views when subject to vibration or interference
| General Information | |
|---|---|
| Brand Name | GeoVision |
| Manufacturer | GeoVision, Inc |
| Product Name | 33x 5MP H.265 Low Lux WDR Pro IP Speed Dome |
| Product Type | Network Camera |
| Product Model | GV-QSD5730-Indoor |
| Product Series | GeoVision |
| Manufacturer Part Number | 125-QSD5730-000 |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 33x |
| Field of View | 55.4°~1.9° |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Video Signal Format | NTSC, PAL |
| Minimum Focal Length | 4.6mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -13°F (-25°C) |
| Exposure | |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.6-152mm |
| Lens Included | Yes |
| Maximum Focal Length | 152mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Black, White |

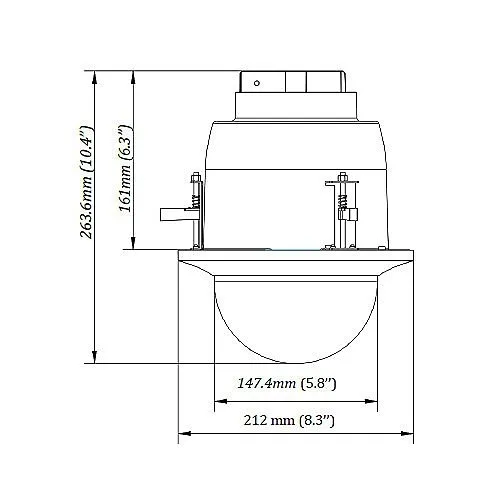

| Height | 10.4" |
| Weight | 6.39lb |
| Durability | Dustproof, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 24V AC, 30V DC |
| Product Information | |
| Diameter | 8.3" |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 24-Month |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Audio Compression, Automatic White Balance, Day/Night, Electronic Image Stabilization, Microphone In, Motion Detection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
