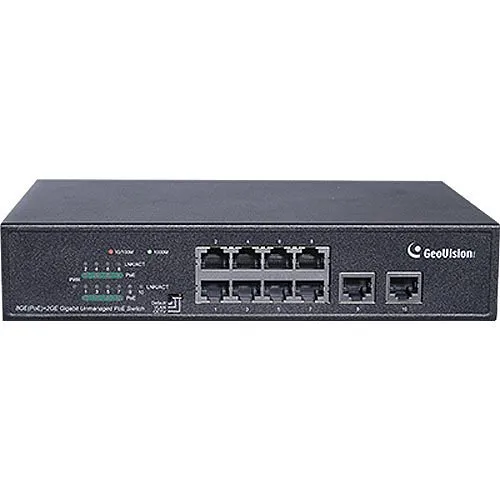

GeoVision GV-APOE0810 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE
Key Features
- Simplify surveillance deployments by powering up to 8 IP cameras or access points directly from the switch, eliminating separate power supplies and cable clutter.
- Reliable Gigabit uplinks and 10/100/1000M ports ensure smooth video streaming and low-latency monitoring for security and network devices.
- Up to 32W per PoE port with a 120W total budget supports high-power devices like PTZ cameras and intercoms for flexible system design.
- Extended cable support (up to 250 meters) lets you position cameras and wireless APs where coverage is needed most, reducing installation constraints.
- Unmanaged simplicity with VLAN mode offers plug-and-play operation for quick setup while providing basic traffic segregation for improved surveillance performance.
Quick Specifications
- Product Model
- GV-APOE0810
- Brand Name
- GeoVision
- Product Name
- 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE
- Product Type
- Ethernet Switch
Product Information Tabs
Overview
Power and simplify your security and surveillance network with the GeoVision GV-APOE0810 10-Port 10/100/1000M Unmanaged PoE Switch. Built for monitoring and small-to-medium business security deployments, this GeoVision PoE switch powers up to 8 IP devices directly at up to 32W per port and a 120W total PoE budget, removing the need for separate power runs and cutting installation time. Ten Gigabit-capable ports provide reliable bandwidth for high-definition video streams and networked access points, and extended cable support up to 250 meters gives you flexibility in camera placement. The unmanaged design delivers plug-and-play ease, while VLAN mode helps keep surveillance traffic segmented and stable without complex configuration. Compliant with IEEE 802.3at PoE standards and constructed in a compact metal housing, the GV-APOE0810 is ideal for CCTV, access control, and wireless bridging in retail, commercial, and institutional environments. Improve uptime and simplify deployment—add the GeoVision GV-APOE0810 to your security infrastructure today.
Features
- Simplify surveillance deployments by powering up to 8 IP cameras or access points directly from the switch, eliminating separate power supplies and cable clutter.
- Reliable Gigabit uplinks and 10/100/1000M ports ensure smooth video streaming and low-latency monitoring for security and network devices.
- Up to 32W per PoE port with a 120W total budget supports high-power devices like PTZ cameras and intercoms for flexible system design.
- Extended cable support (up to 250 meters) lets you position cameras and wireless APs where coverage is needed most, reducing installation constraints.
- Unmanaged simplicity with VLAN mode offers plug-and-play operation for quick setup while providing basic traffic segregation for improved surveillance performance.
| General Information | |
|---|---|
| Brand Name | GeoVision |
| Manufacturer | GeoVision, Inc |
| Product Name | 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE |
| Product Type | Ethernet Switch |
| Product Model | GV-APOE0810 |
| Product Series | GeoVision |
| Manufacturer Part Number | 140-APOE81W-V2 |
| Technical Information | |
| Material | Metal |
| Power Consumption | 125W |
| Network Switch Type | PoE, Unmanaged |
| Media Type Supported | Twisted Pair |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 10 |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100/1000Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Others | |
| Model Number Replaces | 140-APOE81W-000, 140-POE0810-G08 |
| Physical Characteristics | |
| Depth | 5.9" |
| Width | 8.7" |
| Height | 1.7" |
| Weight | 2.73lb |
| Compatible Rack Unit | 1U |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| PoE Budget | 120W |
| Power Source | Power Supply |
| Input Voltage | 120V AC, 230V AC |
| PoE (RJ-45) Port | Yes |
| Product Information | |
| Mount Type | Desktop Mount |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
