HPE JL685A#ABA Switch Series 1930 48-Port Gb Smart-Managed Layer 2+ Ethernet Switch, 48x 1G, 4x SFP+

Discount Aruba JL685A#ABA Instant On 1930 48G 4SFP/SFP+ Switch

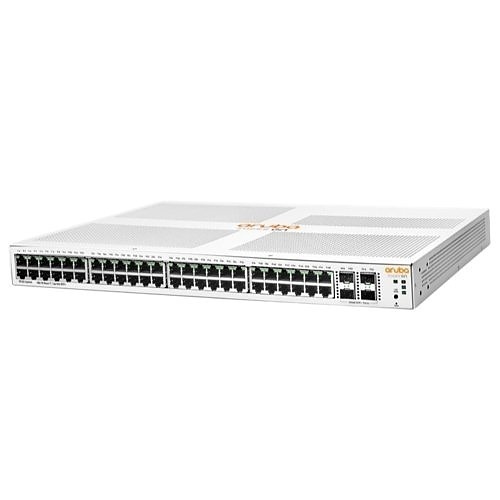

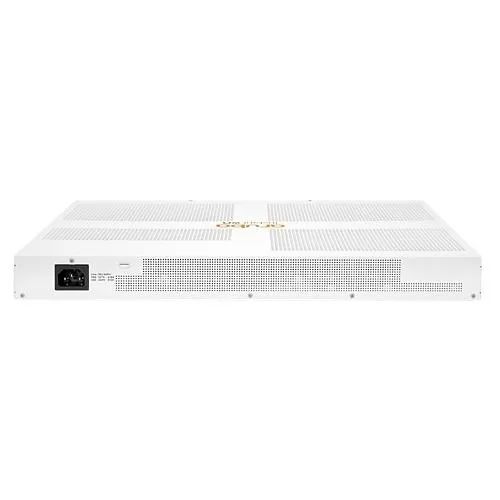

Product images for HPE JL685A#ABA Switch Series 1930 48-Port Gb Smart-Managed Layer 2+ Ethernet Switch, 48x 1G, 4x SFP+. 3 image(s) available. Click on image to view full size.
TAA Compliant Sale 7% OFF

Key Features

  • Rapid deployment and simple management via the Instant On mobile app or web UI — get networks, surveillance cameras and monitoring systems online fast with no subscription.
  • High-performance connectivity with 48x 1Gb ports and 4x SFP+ 10G uplinks to support heavy traffic, NVRs, VoIP and video surveillance streams.
  • Advanced Layer 2+ switching and security features (VLANs, ACLs, DDOS mitigation, TPM) to protect sensitive business and surveillance data.
  • Flexible 1U rack or desktop installation with front-facing ports and quiet fanless operation ideal for offices and edge racks.
  • Lifetime limited warranty and robust support for reliable, long-term deployments in branch offices and SMB networks.

Quick Specifications

Product Model
1930 48G 4SFP/SFP+
Brand Name
HPE Networking Instant On
Product Line
Instant On
Product Name
Instant On 1930 48G 4SFP/SFP+ Switch
View Full Technical Specifications

Explore the details

Product information

14171147

Overview

Scale and secure your small or medium business network with the HPE Networking Instant On 1930 48-Port Gb Smart-Managed Layer 2+ Ethernet Switch. This Instant On switch combines easy, guided setup through the mobile app or browser with enterprise-class security — including VLANs, ACLs, TPM protection and DDOS mitigation — to keep your data, surveillance feeds and monitoring systems safe. With 48x 1G RJ45 ports and 4x SFP+ 10G uplinks, the 1930 handles high-bandwidth tasks such as NVR/storage connectivity, VoIP and video surveillance without compromise. The compact 1U rack design and fanless silent operation make it suitable for office environments and edge racks, while Layer 2+ features and a full local web interface give IT teams advanced routing and SNMP monitoring when needed. No recurring licenses are required, and the product is backed by an industry-leading limited lifetime warranty. Ideal for business networks, security camera infrastructures and centralized monitoring deployments — order the HPE Instant On 1930 to simplify deployment and secure your network today.

Features

  • Rapid deployment and simple management via the Instant On mobile app or web UI — get networks, surveillance cameras and monitoring systems online fast with no subscription.
  • High-performance connectivity with 48x 1Gb ports and 4x SFP+ 10G uplinks to support heavy traffic, NVRs, VoIP and video surveillance streams.
  • Advanced Layer 2+ switching and security features (VLANs, ACLs, DDOS mitigation, TPM) to protect sensitive business and surveillance data.
  • Flexible 1U rack or desktop installation with front-facing ports and quiet fanless operation ideal for offices and edge racks.
  • Lifetime limited warranty and robust support for reliable, long-term deployments in branch offices and SMB networks.
36 of 36 specifications
Technical specifications for HPE JL685A#ABA Switch Series 1930 48-Port Gb Smart-Managed Layer 2+ Ethernet Switch, 48x 1G, 4x SFP+
General Information
Brand Name HPE Networking Instant On
Manufacturer Hewlett Packard Enterprise
Product Line Instant On
Product Name Instant On 1930 48G 4SFP/SFP+ Switch
Product Type Ethernet Switch
Product Model 1930 48G 4SFP/SFP+
Product Series 1930
Manufacturer Part Number 14171147
Technical Information
Power Consumption 36.90W
Media Type Supported Optical Fiber, Twisted Pair
Certifications
TAA Compliant Yes
I/O Expansions
Shared SFP Slot No
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Number of Total Expansion Slots 4
Interfaces/Ports
Modular Yes
Uplink Port Yes
Connector Type RJ45
Network (RJ-45) Yes
Total Number of Network Ports 48
Management & Protocols
Manageable Yes
Media & Performance
Network Technology 10/100/1000Base-T, 10GBase-X
Network & Communication
Layer Supported 3
Ethernet Technology 10 Gigabit Ethernet
Networking Standards IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth 11.1"
Width 17.4"
Height 1.7"
Weight 6.91lb
Compatible Rack Unit 1U
Power Description
Frequency 50 Hz, 60 Hz
Power Source Power Supply
Input Voltage 120V AC, 230V AC
Warranty
Limited Warranty Lifetime
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
