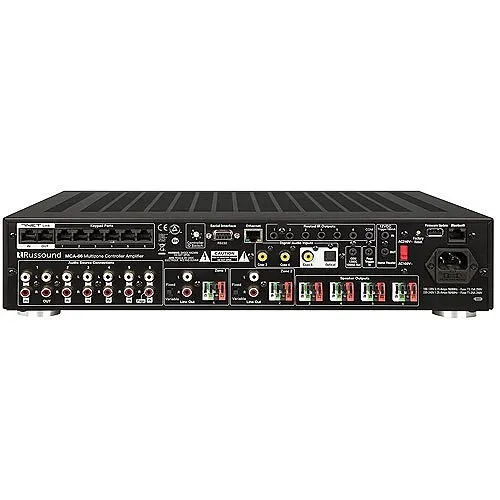

Russound MCA-66 6-Zone 6-Source Controller Amplifier
Image of 2
Key Features
- Delivers consistent multi-room audio with 6 amplified zones (20W per channel) for reliable background music and paging in commercial spaces
- IP-enabled control (RIO/Ethernet) and My Russound App support simplify integration, remote monitoring, and centralized management
- Flexible source handling: up to 6 stereo inputs, digital coax/optical, and a dedicated paging input for phone/paging system integration
- Integration-ready with RS-232, 12V triggers and routed IR for seamless connection to automation, security and surveillance systems
- Scalable design expands to larger installations (up to 36 zones) to grow with facility needs
- Installer-grade features and voice control compatibility (Amazon Alexa) reduce on-site configuration time and improve end-user control
Quick Specifications
- Product Model
- MCA-66
- Brand Name
- Russound
- Product Name
- MCA-66 6 Zone, 6 Source Controller Amplifier
- Product Type
- Multi-Zone Amplifier
Frequently Bought Together
Russound MCA-66 6-Zone 6-Source Controller Amplifier
$1,720.48
4 items selected
Total: $2,364.03
Explore the details
Product information
1550-536342
Overview
Designed for commercial and advanced residential installations, the Russound MCA-66 6-Zone 6-Source Controller Amplifier brings dependable, networked audio to retail, hospitality, corporate, and security monitoring environments. This multi-zone amplifier delivers 20 watts per channel across six zones and accepts up to six stereo sources—including digital coaxial and optical—so you can deploy background music, announcements, and paging from a single rack-mounted unit. Ethernet-enabled RIO control and the My Russound App provide IP-based management, monitoring and bi-directional communication for streamlined system oversight. Integration features like RS-232, routed IR, Home Theater triggers and a dedicated paging input make the MCA-66 easy to tie into automation, phone/paging systems and surveillance workflows. Expandability to up to 36 zones and global 12V triggers let you scale and automate power management as your facility grows. The MCA-66 is ideal when audio must coexist with security or monitoring systems—contact a Russound Certified Installer to specify and install this controller amplifier for reliable, centrally managed audio and paging.
Features
- Delivers consistent multi-room audio with 6 amplified zones (20W per channel) for reliable background music and paging in commercial spaces
- IP-enabled control (RIO/Ethernet) and My Russound App support simplify integration, remote monitoring, and centralized management
- Flexible source handling: up to 6 stereo inputs, digital coax/optical, and a dedicated paging input for phone/paging system integration
- Integration-ready with RS-232, 12V triggers and routed IR for seamless connection to automation, security and surveillance systems
- Scalable design expands to larger installations (up to 36 zones) to grow with facility needs
- Installer-grade features and voice control compatibility (Amazon Alexa) reduce on-site configuration time and improve end-user control
| General Information | |
|---|---|
| Brand Name | Russound |
| Manufacturer | Russound/FMP, Inc |
| Product Name | MCA-66 6 Zone, 6 Source Controller Amplifier |
| Product Type | Multi-Zone Amplifier |
| Product Model | MCA-66 |
| Product Series | MCA |
| Country of Origin | TW |
| Manufacturer Part Number | 1550-536342 |
| Technical Information | |
| Bluetooth | Yes |
| Impedance | 8Ohm |
| Audio Channels | 6 |
| Power Consumption | 600.0000W |
| Audio | |
| RMS Output Power | 120W |
| Maximum Frequency Response | 20kHz |
| Minimum Frequency Response | 20Hz |
| Environmental Conditions | |
| Operating Temperature (T-T) | 32-104°F |
| Interfaces/Ports | |
| Number of USB Ports | 1 |
| Number of Audio Inputs | 12 |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 1.50" |
| Width | 2.94" |
| Height | 3.80" |
| Material | Metal |
| Dimensions | 1.5" x 4.69" x 2.94" |
| Power Description | |
| Input Voltage | 120V AC, 12V DC |
| Product Information | |
| Mount Type | Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | MCA-C3 |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Package Contents | MCA-66 6 Zone, 6 Source Controller Amplifier Rackmountable with Rack Mount Ears |
| Environmentally Friendly | Yes |
