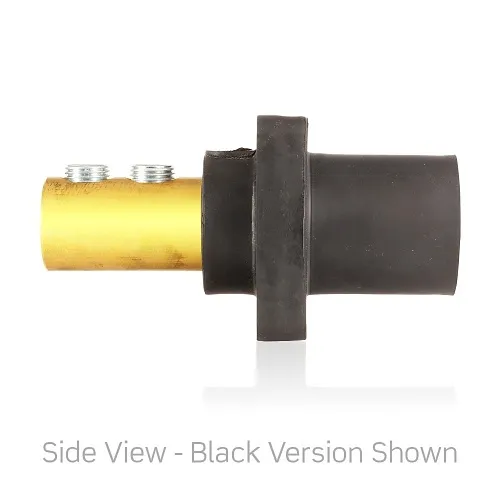

Leviton 16R21-UR Male Panel Receptacle, Taper Nose, 90°, 2/0-4/0AWG, Double Set Screw, Red
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Simplifies temporary power hookups with a 90-degree taper-nose design for tight panel mounting and cleaner cable routing
- Secure, high-capacity 400A/600V connection with double set-screw termination for reliable 2/0–4/0 AWG conductor retention, reducing downtime
- Rugged Rhino-Hide housing with NEMA 3R rating protects outdoor installations from weather and jobsite wear for long-lasting service
- Color-coded red body enables fast phase identification to speed installations for events, construction, and security/surveillance deployments
- UL-certified design and cylindrical profile reduce snap and ensure consistent mating for repeatable, safe power distribution
Quick Specifications
- Product Model
- 16R21-UR
- Brand Name
- Leviton
- Product Line
- Rhino-Hide
- Product Name
- Male Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination
Explore the details
Product information
16R21-UR
Overview
Deliver dependable, high-capacity temporary power in confined spaces with the Leviton 16R21-UR male panel receptacle. This 90-degree, taper-nose power connector is engineered for fast, tool-free assembly and secure double set-screw termination, supporting 2/0–4/0 AWG conductors and rated for 400A at 600V. The Rhino-Hide housing and NEMA 3R rating stand up to harsh outdoor conditions, making it ideal for construction sites, events, oil & gas, and mission-critical security or surveillance installations where reliable monitoring and power continuity matter.
Color-coding accelerates phase identification and minimizes wiring errors on busy job sites, while UL certification delivers confidence in safety and performance. The compact 90° profile improves cable routing in crowded panels and reduces strain on connections—helping crews install and remove temporary power faster and safer. Whether you're supplying distribution panels at a concert, powering remote surveillance systems, or temporary lighting for maintenance, the Leviton 16R21-UR provides a rugged, industry-trusted solution. Order today or contact our sales team to specify this connector for your next temporary power or security monitoring deployment.
Features
- Simplifies temporary power hookups with a 90-degree taper-nose design for tight panel mounting and cleaner cable routing
- Secure, high-capacity 400A/600V connection with double set-screw termination for reliable 2/0–4/0 AWG conductor retention, reducing downtime
- Rugged Rhino-Hide housing with NEMA 3R rating protects outdoor installations from weather and jobsite wear for long-lasting service
- Color-coded red body enables fast phase identification to speed installations for events, construction, and security/surveillance deployments
- UL-certified design and cylindrical profile reduce snap and ensure consistent mating for repeatable, safe power distribution
| General Information | |
|---|---|
| Brand Name | Leviton |
| Manufacturer | Leviton Mfg. Company, Inc |
| Product Line | Rhino-Hide |
| Product Name | Male Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination |
| Product Type | Power Socket |
| Product Series | 16 |
| Country of Origin | MX |
| Manufacturer Part Number | 16R21-UR |
| Certifications | |
| Certifications & Standards | CSA Standard : 1691UL : 1691 |
| Physical Characteristics | |
| Color | Red |
| Power Description | |
| Current Rating | 400.00A |
| Voltage Rating | 600V AC |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- 16R21-UR
- Manufacturer part:
- 16R21-UR
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsLeviton 16R21-UR Male Panel Receptacle, Taper Nose, 90°, 2/0-4/0AWG, Double Set Screw, Red
16R21-UR
