Leviton 16R24-1UG 16 Series Female Panel Receptacle, 90-Degree, Threaded Stud Termination, 1.125"
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Deliver dependable temporary power for demanding job sites and events with a 400A capacity that supports heavy equipment and power distribution
- Reduce installation time and wiring errors with color-coded Rhino-Hide design and a tapered cam-style nose for fast mating and phase identification
- Minimize downtime and maintenance with NEMA 3R outdoor protection and UL 1691/508 short-circuit rating for safe, rugged use in harsh environments

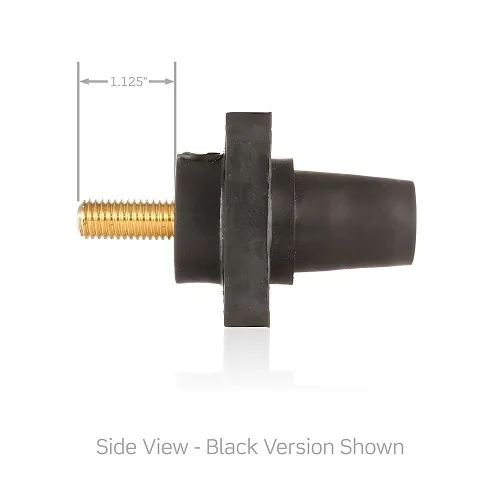

- Save labor on assembly/disassembly: cam-type termination and 1.125" threaded stud accommodate #2 to 4/0 AWG quickly without special tools
- Compact 90-degree panel configuration prevents cable strain and improves panel accessibility in confined racks and enclosures
Quick Specifications
- Product Model
- 16R24-1UG
- Brand Name
- Leviton
- Product Line
- Rhino-Hide
- Product Name
- Female Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125 L Threaded Stud Termination
Explore the details
Product information
16R24-1UG
Overview
For dependable temporary power on construction sites, entertainment rigs, or security and surveillance deployments, the Leviton 16R24-1UG female panel receptacle delivers rugged, contractor-grade performance. This 16 Series Rhino-Hide power connector provides a 400A maximum capacity and accepts #2 to 4/0 AWG conductors with a 1.125" threaded stud termination, giving you the high-current throughput required for generators, distribution panels and heavy-duty monitoring equipment. The 90-degree cam-type, taper-nose design simplifies mating in tight panels while the color-coded housing speeds phase identification and reduces wiring mistakes. NEMA 3R outdoor rating and UL 1691/508 short-circuit certification ensure reliable protection in harsh environments, making it ideal for temporary power, oil & gas, mining, and security installations. Compact cylindrical profile minimizes snagging and improves durability on the job. Specify the Leviton 16R24-1UG when you need a secure, fast-to-install power connector for surveillance, monitoring, or power distribution systems — contact sales or order now to keep your site powered and compliant.
Features
- Deliver dependable temporary power for demanding job sites and events with a 400A capacity that supports heavy equipment and power distribution
- Reduce installation time and wiring errors with color-coded Rhino-Hide design and a tapered cam-style nose for fast mating and phase identification
- Minimize downtime and maintenance with NEMA 3R outdoor protection and UL 1691/508 short-circuit rating for safe, rugged use in harsh environments
- Save labor on assembly/disassembly: cam-type termination and 1.125" threaded stud accommodate #2 to 4/0 AWG quickly without special tools
- Compact 90-degree panel configuration prevents cable strain and improves panel accessibility in confined racks and enclosures
| General Information | |
|---|---|
| Brand Name | Leviton |
| Manufacturer | Leviton Mfg. Company, Inc |
| Product Line | Rhino-Hide |
| Product Name | Female Receptacle, 90-Degree, #2 - 4/0 AWG, 1.125 L Threaded Stud Termination |
| Product Type | Power Socket |
| Product Series | 16 |
| Manufacturer Part Number | 16R241UG |
| Physical Characteristics | |
| Color | Green |
| Miscellaneous | |
| Country of Origin | MX |
