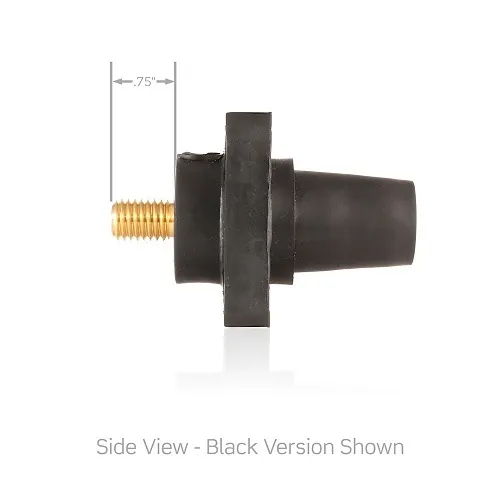

Leviton 16R24-UW Female Panel Receptacle, Taper Nose, 90°, 2-4/0AWG, .75" L Threaded Stud, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Durable, outdoor-ready connection that delivers dependable temporary power for construction, events, security and surveillance deployments
- Tool-free assembly and taper-nose design for fast, safe field hookup and rapid reconfiguration
- High-capacity 400A/600V rating with .75" threaded stud and #2–4/0 AWG cable range to handle heavy feeder feeds
- NEMA 3R and UL-listed construction reduces downtime and simplifies compliance for temporary power and monitoring systems
- White, color-coded housing and cylindrical profile for quick phase identification and reduced snap during mating
Quick Specifications
- Product Model
- 16R24-UW
- Brand Name
- Leviton
- Product Line
- Rhino-Hide
- Product Name
- Female Receptacle, 90-Degree, #2 - 4/0 AWG, .75 L Threaded Stud Termination
Explore the details
Product information
16R24-UW
Overview
Provide reliable temporary power where it matters most with the Leviton 16R24-UW female panel receptacle. Part of Leviton's Rhino-Hide line, this 90-degree cam-type power connector is engineered for fast field hookups on job sites, events, and security or surveillance installations. Its taper-nose, cylindrical profile and .75" threaded stud make assembly quick and secure — no special tools required — while supporting heavy feeders with a 400A current rating and 600V insulation. Built to withstand outdoor conditions, the NEMA 3R-rated housing and UL 1691/508 certifications help keep your power distribution, CCTV, access control and monitoring systems online and code-compliant. The white, color-coded body streamlines phase identification during complex temporary power setups. Choose the Leviton 16R24-UW for robust performance in construction, oil & gas, mining, and critical security deployments — order now to ensure dependable, easy-to-install temporary power on your next project.
Features
- Durable, outdoor-ready connection that delivers dependable temporary power for construction, events, security and surveillance deployments
- Tool-free assembly and taper-nose design for fast, safe field hookup and rapid reconfiguration
- High-capacity 400A/600V rating with .75" threaded stud and #2–4/0 AWG cable range to handle heavy feeder feeds
- NEMA 3R and UL-listed construction reduces downtime and simplifies compliance for temporary power and monitoring systems
- White, color-coded housing and cylindrical profile for quick phase identification and reduced snap during mating
| General Information | |
|---|---|
| Brand Name | Leviton |
| Manufacturer | Leviton Mfg. Company, Inc |
| Product Line | Rhino-Hide |
| Product Name | Female Receptacle, 90-Degree, #2 - 4/0 AWG, .75 L Threaded Stud Termination |
| Product Type | Power Socket |
| Product Series | 16 |
| Manufacturer Part Number | 16R24-UW |
| Physical Characteristics | |
| Color | White |
| Power Description | |
| Current Rating | 400 A |
| Voltage Rating | 600V AC |
| Miscellaneous | |
| Country of Origin | MX |
| Certifications & Standards | CSA Standard : 1691UL : 1691 |
