Genesis 21011101 22/2 Solid Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White

SKU: 21011101 Genesis

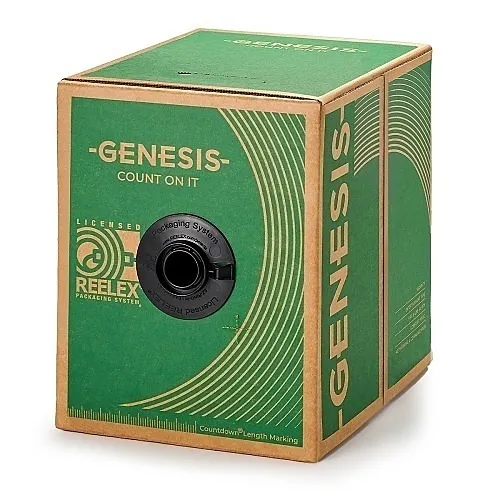

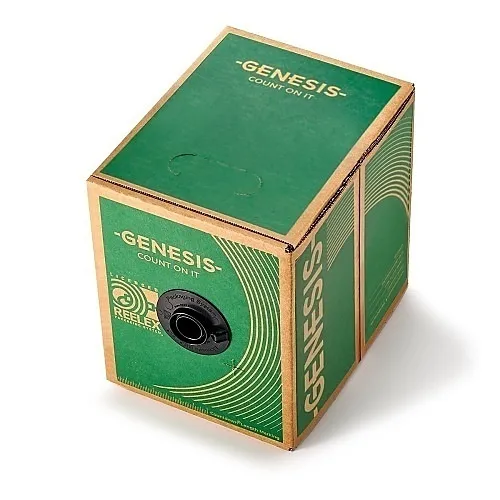

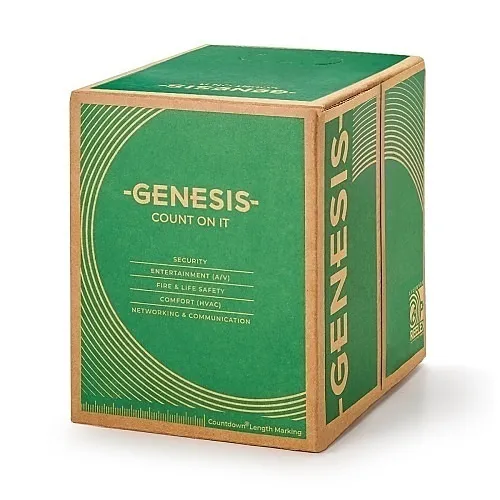

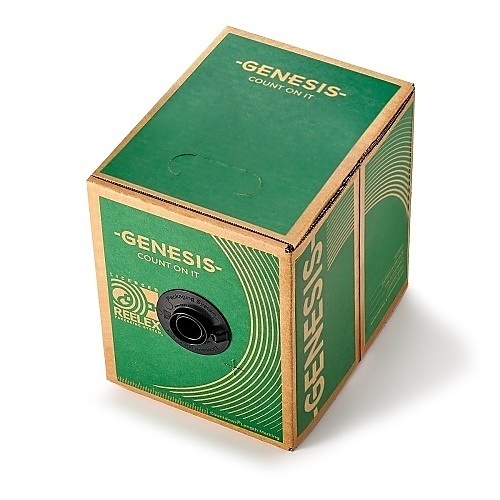

Image of WG-21011101
Product images for Genesis 21011101 22/2 Solid Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Reliable runs for security and access control: 22AWG solid bare copper conductors deliver consistent signal and low voltage drop for cameras, sensors and control devices.
  • Installer-friendly pull box: 1000' boxed packaging with countdown length markings and a durable rip cord speeds deployments and reduces waste.
  • Riser-rated durability: FT4/CMR PVC jacket and UV-resistant construction protect cable in indoor riser pathways and riser shafts.
  • Long-term performance: Polypropylene insulation and 300V rating support stable monitoring and surveillance feeds in commercial installations.
  • Code and compliance ready: RoHS/REACH and TAA compliant design with a 3-year limited warranty helps meet procurement and regulatory requirements.

Quick Specifications

Product Model
21011101
Brand Name
Genesis
Package Type
REELEX Pull Box
Product Name
Riser Rated Security & Control Cable
View Full Technical Specifications

Explore the details

Product information

21011101

Overview

Optimize security and monitoring installations with the Genesis 21011101 Riser Unshielded Cable — a dependable, installer-friendly solution for surveillance, access control and low-voltage signaling. This Genesis riser-rated security & control cable features 22AWG solid bare copper conductors in a 2-conductor configuration, providing reliable conductivity and minimal voltage drop across long runs. Packaged in a 1000' pull box with countdown length markings and a built-in rip cord, the cable reduces installation time and material loss on site.

Designed for commercial riser pathways, the PVC FT4 jacket and polypropylene insulation offer rugged protection and UV resistance for indoor applications. Rated to 300V and compliant with RoHS/REACH and TAA, the cable supports code-compliant security and monitoring deployments while delivering consistent signal integrity for cameras, sensors, alarms and access control devices. Backed by a 3-year limited warranty, the Genesis 22/2 riser cable is ideal for system integrators and low-voltage contractors who need dependable, easy-to-install cabling. Order the Genesis 21011101 today to streamline your next security or surveillance cabling project.

Features

  • Reliable runs for security and access control: 22AWG solid bare copper conductors deliver consistent signal and low voltage drop for cameras, sensors and control devices.
  • Installer-friendly pull box: 1000' boxed packaging with countdown length markings and a durable rip cord speeds deployments and reduces waste.
  • Riser-rated durability: FT4/CMR PVC jacket and UV-resistant construction protect cable in indoor riser pathways and riser shafts.
  • Long-term performance: Polypropylene insulation and 300V rating support stable monitoring and surveillance feeds in commercial installations.
  • Code and compliance ready: RoHS/REACH and TAA compliant design with a 3-year limited warranty helps meet procurement and regulatory requirements.
28 of 28 specifications
Technical specifications for Genesis 21011101 22/2 Solid Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Package Type REELEX Pull Box
Product Name Riser Rated Security & Control Cable
Product Type Security & Control Cables
Product Model 21011101
Country of Origin US
Packaged Quantity 1
Manufacturer Part Number 21011101
Technical Information
Armored No
Shielding No
Jacket Type FT4, TC
Cable Rating Riser
Conductor Count 2
Number of Pairs 1
Solid or Stranded Solid
Conductor Material Bare Copper
American Wire Gauge 22AWG
Number of Conductors 2
Certifications
TAA Compliant Yes
Physical Characteristics
Color White
Cable Length 1000'
Jacket Material PVC
Insulation Material PP
Product Replacements & Other Alternatives
Model Number Replaces 11011101
Warranty
Limited Warranty 1-Year
Miscellaneous
Indoor/Outdoor Indoor
Environmental Certification RoHS
