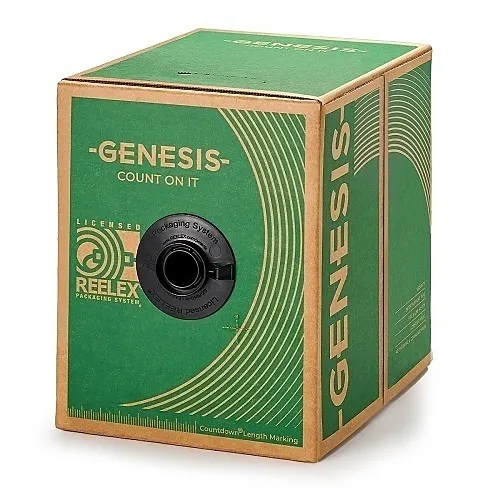

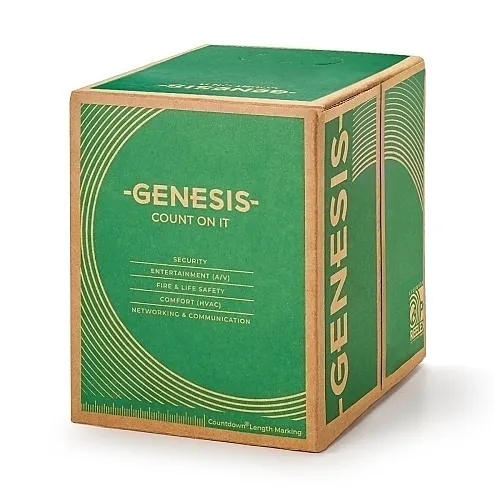

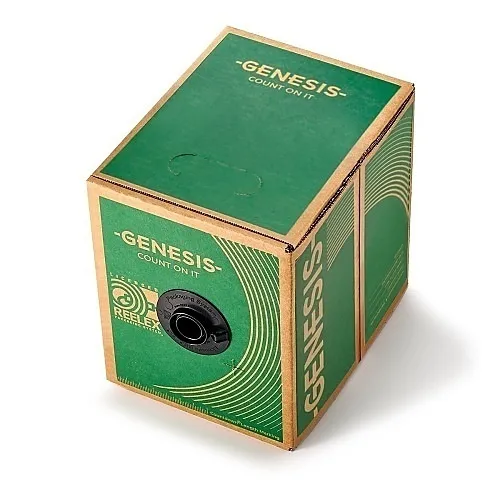

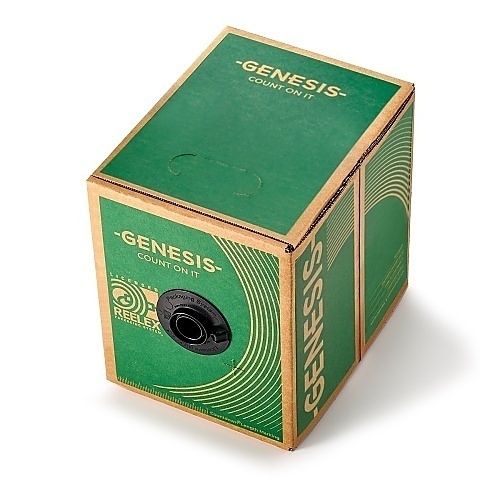

Genesis 21025501 22/2 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, White
Image of 4
Key Features
- Reliable low-voltage signal for security and surveillance systems thanks to 22AWG stranded bare copper conductors that minimize voltage drop
- Faster, neater installs with a 500' pull box, durable rip cord and countdown length markings to save time on the jobsite
- Riser-rated FT4 construction meets building-code requirements for vertical runs in commercial installations
- Flexible stranded construction eases routing in tight conduits and behind panels for access control and monitoring applications
- Durable PVC jacket with UV resistance and wide temperature rating helps protect cabling in varied indoor environments while meeting RoHS/REACH and TAA compliance
Quick Specifications
- Product Model
- 21025501
- Brand Name
- Genesis
- Product Name
- Genesis 21025501 22/2 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, White jacket
- Product Type
- Security & Control Cables
Explore the details
Product information
21025501
Overview
Built for reliable low-voltage transmission in security and access-control installations, the Genesis 21025501 22/2 Stranded Unshielded Riser Cable delivers consistent performance for CCTV, alarm and monitoring systems. This Genesis riser unshielded cable features 22AWG stranded bare copper conductors for improved conductivity and flexibility, and comes in a convenient 500' pull box to streamline large runs and reduce waste. The FT4 riser-rated PVC jacket ensures compliance for vertical building pathways while the polypropylene insulation and durable rip cord make jacket removal and termination quick and accurate. Countdown length markings keep installers informed of remaining cable, speeding inventory and pull planning. Sunlight-resistant and rated from -20 °C to 75 °C, this two-conductor cable is ideal for indoor security, surveillance, access control and low-voltage signal applications that demand dependable, code-compliant cabling. Backed by a 3-year limited warranty and TAA/RoHS compliance, the Genesis 22/2 riser cable is a practical choice for installers specifying reliable cabling for camera, sensor and control circuits. Order now to simplify your next security or monitoring deployment.
Features
- Reliable low-voltage signal for security and surveillance systems thanks to 22AWG stranded bare copper conductors that minimize voltage drop
- Faster, neater installs with a 500' pull box, durable rip cord and countdown length markings to save time on the jobsite
- Riser-rated FT4 construction meets building-code requirements for vertical runs in commercial installations
- Flexible stranded construction eases routing in tight conduits and behind panels for access control and monitoring applications
- Durable PVC jacket with UV resistance and wide temperature rating helps protect cabling in varied indoor environments while meeting RoHS/REACH and TAA compliance
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Genesis 21025501 22/2 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, White jacket |
| Product Type | Security & Control Cables |
| Product Model | 21025501 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 21025501 |
| Technical Information | |
| Armored | No |
| Shielding | No |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 2 |
| Jacket Material | PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 2 |
| Certifications | |
| TAA Compliant | Yes |
| Others | |
| Model Number Replaces | 11025501 |
| Physical Characteristics | |
| Color | White |
| Cable Length | 500' |
| Package Type | REELEX Pull Box |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
