Genesis 21031109 22/4 Solid Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Image of 4
Key Features
- Optimizes signal integrity for security and monitoring systems with 22 AWG solid bare copper conductors to minimize voltage drop
- Riser-rated CMR/FT4 jacket enables safe, code-compliant vertical runs between floors for surveillance, access control, and alarm installs

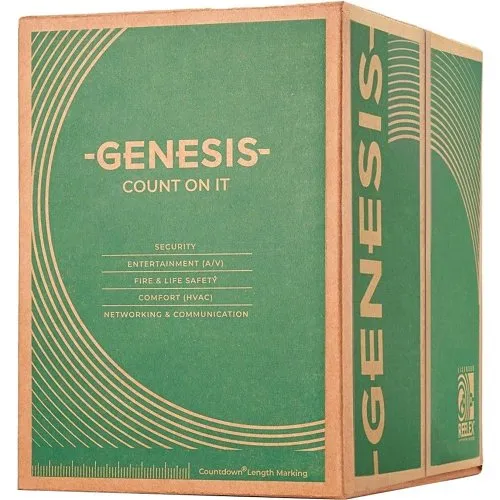

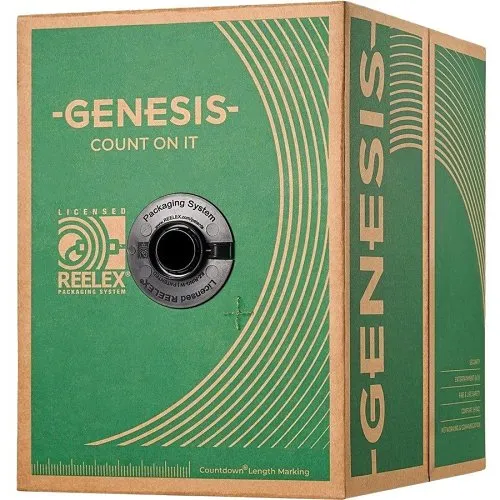

- 1000' pull box with countdown length markings and rip cord reduces install time, waste, and spool handling on site
- Durable PVC jacket with UV resistance and -20°C to 75°C operating range for dependable indoor deployments and temporary exposure during installation
- TAA and RoHS compliant, US-made with a 3-year limited warranty to support procurement and long-term project reliability
Quick Specifications
- Product Model
- 21031109
- Brand Name
- Genesis
- Product Name
- Riser Rated Security & Control Cable
- Product Type
- Access & Security Cable
Explore the details
Product information
21031109
Overview
Built for security, surveillance and access-control deployments, the Genesis 22/4 Solid Riser Cable delivers dependable low-voltage performance across long runs. This Genesis riser-rated cable features four 22 AWG solid bare copper conductors to ensure consistent signal transmission for cameras, sensors, alarm panels and monitoring devices while minimizing voltage drop. The CMR/FT4 PVC jacket meets riser fire-safety requirements for vertical building pathways and comes in a 1000' pull box with countdown length markings and a built-in rip cord to speed installation and reduce downtime.
Installers benefit from a cable designed for real-world jobs: solid conductors for reliable connections, a durable jacket that is UV-resistant for temporary exposure during routing, and a 300V rating with a -20°C to 75°C operating range for stable performance. TAA and RoHS compliance plus a 3-year limited warranty make this an easy choice for commercial security projects. Ideal for CCTV, access control, and monitoring system wiring—order the Genesis 22/4 riser cable to simplify installs and keep systems running smoothly.
Features
- Optimizes signal integrity for security and monitoring systems with 22 AWG solid bare copper conductors to minimize voltage drop
- Riser-rated CMR/FT4 jacket enables safe, code-compliant vertical runs between floors for surveillance, access control, and alarm installs
- 1000' pull box with countdown length markings and rip cord reduces install time, waste, and spool handling on site
- Durable PVC jacket with UV resistance and -20°C to 75°C operating range for dependable indoor deployments and temporary exposure during installation
- TAA and RoHS compliant, US-made with a 3-year limited warranty to support procurement and long-term project reliability
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Riser Rated Security & Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 21031109 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 21031109 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | No |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 1 |
| Jacket Material | PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 4 |
| Certifications | |
| TAA Compliant | Yes |
| Others | |
| Model Number Replaces | 11031109, 11035506, 11331109 |
| Physical Characteristics | |
| Color | Gray |
| Weight | 12.20 lb |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
