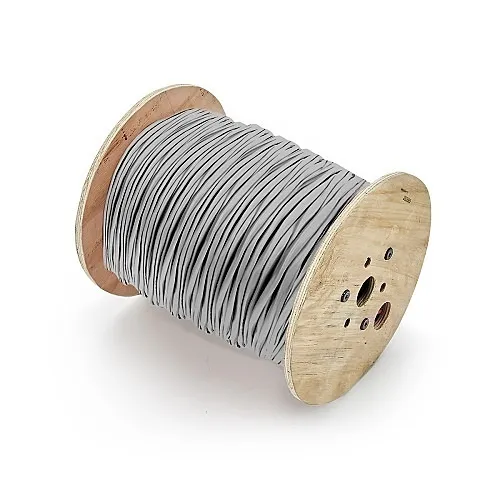

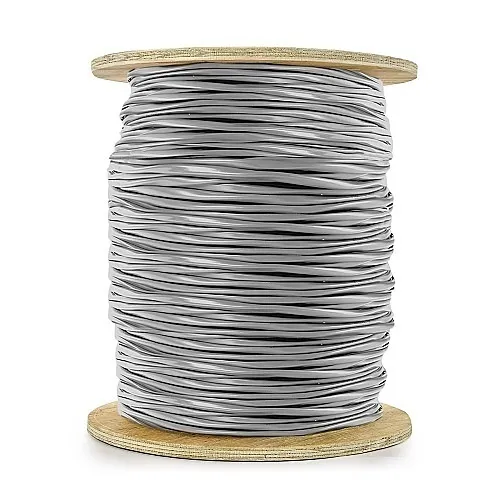

Genesis 21161009 18/6 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
Image of 3
Key Features
- Dependable signal and low-voltage power delivery with bare copper conductors for clearer monitoring and reduced voltage drop
- Riser (CMR) rated, sunlight-resistant PVC jacket ideal for indoor building runs and vertical riser installations
- Flexible 18 AWG stranded construction on a 1000' reel simplifies long pulls and reduces splice points for security and surveillance projects
- Convenient countdown length markings and durable rip cord speed installation and minimize labor time
- RoHS/REACH compliant and rated to 300V, supporting code-compliant access control, alarm and monitoring systems
Quick Specifications
- Product Model
- 21161009
- Brand Name
- Genesis
- Product Name
- Riser Rated Security & Control Cable
- Product Type
- Access & Security Cable
Explore the details
Product information
21161009
Overview
Built for dependable performance in security and access control installations, the Genesis 21161009 Riser Unshielded Cable delivers reliable signal and low-voltage power where it counts. This Genesis riser-rated (CMR) 18/6 stranded cable pairs bare copper conductors with polypropylene insulation and a sunlight-resistant PVC jacket to ensure consistent conductivity, minimal voltage drop and long service life across surveillance, alarm and monitoring systems. Supplied on a 1000' reel, the multi-conductor 18 AWG cable reduces the need for splices on long runs and features countdown length markings plus a rip cord to speed termination and lower installation labor. Rated for -20 °C to 75 °C and 300V, and compliant with RoHS/REACH standards, it meets the environmental and safety expectations of modern commercial projects. Choose this Genesis riser unshielded cable for reliable wiring of cameras, sensors, control panels and other security devices. Order now to streamline your next surveillance or access control deployment.
Features
- Dependable signal and low-voltage power delivery with bare copper conductors for clearer monitoring and reduced voltage drop
- Riser (CMR) rated, sunlight-resistant PVC jacket ideal for indoor building runs and vertical riser installations
- Flexible 18 AWG stranded construction on a 1000' reel simplifies long pulls and reduces splice points for security and surveillance projects
- Convenient countdown length markings and durable rip cord speed installation and minimize labor time
- RoHS/REACH compliant and rated to 300V, supporting code-compliant access control, alarm and monitoring systems
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Riser Rated Security & Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 21161009 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 21161009 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | No |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | Outdoor |
| Cable Rating | Outdoor, Riser |
| Conductor Count | 3 |
| Jacket Material | PVC |
| Number of Pairs | 3 |
| Device Supported | Security Device |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 6 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/6 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Others | |
| Model Number Replaces | 11201009 |
| Physical Characteristics | |
| Color | Gray |
| Cable Length | 1000' |
| Package Type | Reel |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
