Genesis 21165509 18/6 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray

SKU: 21165509 Genesis

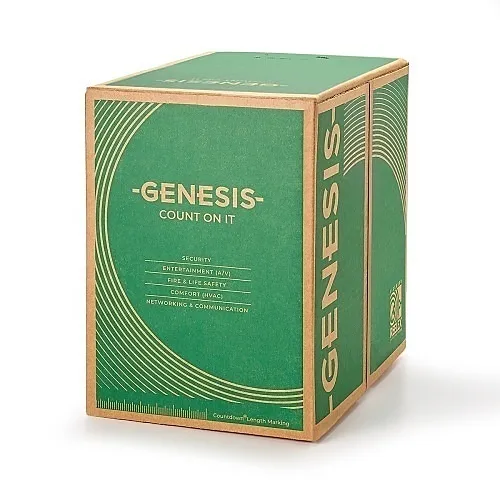

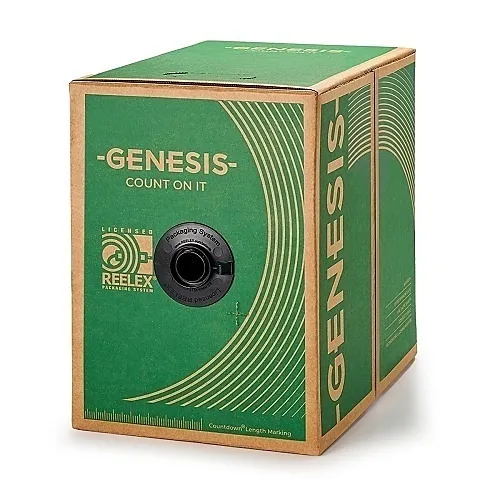

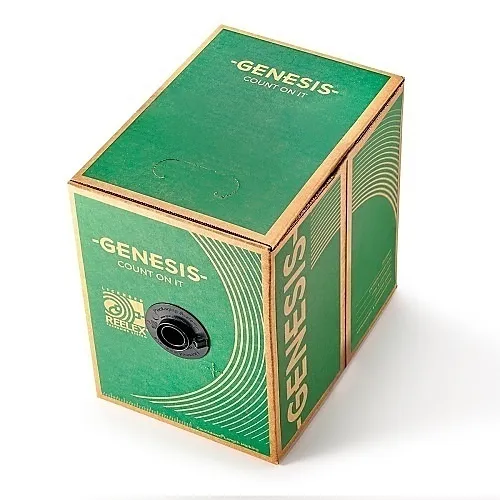

Image of WG-21165509
Product images for Genesis 21165509 18/6 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Ensures reliable signal and low voltage drop with stranded bare copper conductors—ideal for surveillance and access control systems
  • Riser-rated CMR/FT4 construction and PVC jacket provide code-compliant vertical runs and long-term durability
  • 500' pull box with countdown length markings speeds installs and reduces material waste on long cable runs
  • Flexible 18 AWG stranded design and built-in rip cord simplify routing and jacket removal for faster deployment
  • Sunlight resistant, RoHS/REACH and TAA compliant for dependable performance and regulatory confidence

Quick Specifications

Product Model
21165509
Brand Name
Genesis
Product Name
Genesis 21165509 18/6 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, Gray jacket
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, low-loss signal and limited-power transmission for security and monitoring installations with the Genesis 21165509 18/6 stranded unshielded riser cable. Purpose-built for access control, surveillance cameras, and alarm systems, this CMR/FT4-rated multi-conductor cable features stranded 18 AWG bare copper conductors for excellent conductivity and flexible routing. The 500' pull box and clear countdown length markings accelerate installs and help manage inventory on long runs. A durable PVC jacket with sunlight resistance and polypropylene insulation protects conductors while the integrated rip cord enables quick jacket stripping and termination. Rated to 300V and designed for indoor riser applications, this Genesis riser cable balances performance and code compliance for commercial and multi-story deployments. Backed by a 3-year limited warranty and TAA compliance, it’s a practical choice for contractors specifying reliable cabling for security, surveillance, monitoring, and access control projects. Order the Genesis 21165509 pull box to streamline your next installation and ensure dependable system performance.

Features

  • Ensures reliable signal and low voltage drop with stranded bare copper conductors—ideal for surveillance and access control systems
  • Riser-rated CMR/FT4 construction and PVC jacket provide code-compliant vertical runs and long-term durability
  • 500' pull box with countdown length markings speeds installs and reduces material waste on long cable runs
  • Flexible 18 AWG stranded design and built-in rip cord simplify routing and jacket removal for faster deployment
  • Sunlight resistant, RoHS/REACH and TAA compliant for dependable performance and regulatory confidence
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name Genesis 21165509 18/6 Stranded Unshielded Riser Rated Cable, 500' (152.4 m) Pull Box, Gray jacket
Product Type Access & Security Cable
Product Model 21165509
Packaged Quantity 1
Manufacturer Part Number 21165509
Technical Information
Material Bare Copper
Impedance 67 ohms
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type FT4, Riser
Cable Rating Riser
Conductor Count 1
Jacket Material PVC
Number of Pairs 1
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 6
Core/Cladding Diameter 18/6
Certifications
TAA Compliant Yes
Others
Model Number Replaces 11205509
Physical Characteristics
Color Gray
Cable Length 500'
Package Type Pull Box
Insulation Material PP
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
