Genesis 22025509 22/2 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
Image of 4
Key Features
- Protects sensitive security and surveillance signals with a full foil shield to minimize EMI and crosstalk
- Flexible 22 AWG stranded bare copper conductors deliver reliable low-voltage performance and easier routing in tight installations
- Riser-rated (CMR/FT4) PVC jacket in a 500' pull box enables code-compliant vertical runs and faster jobsite deployment

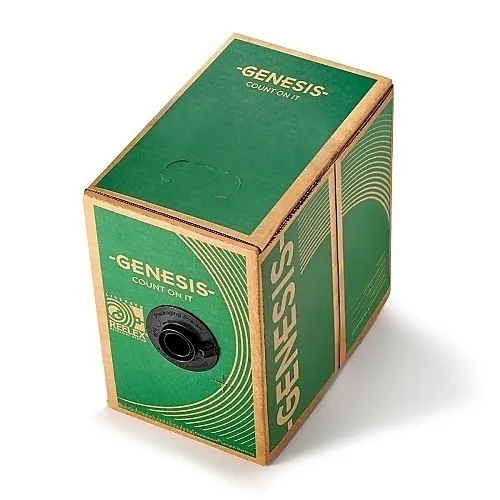

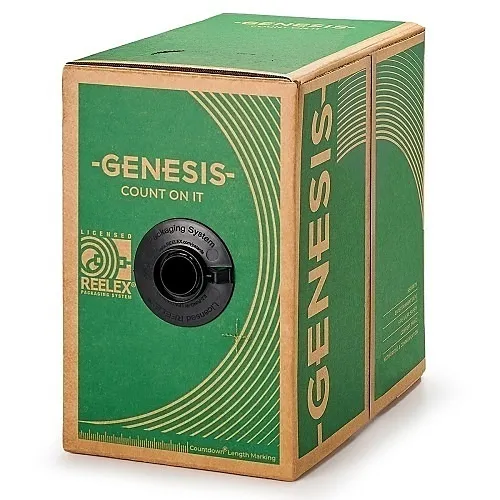

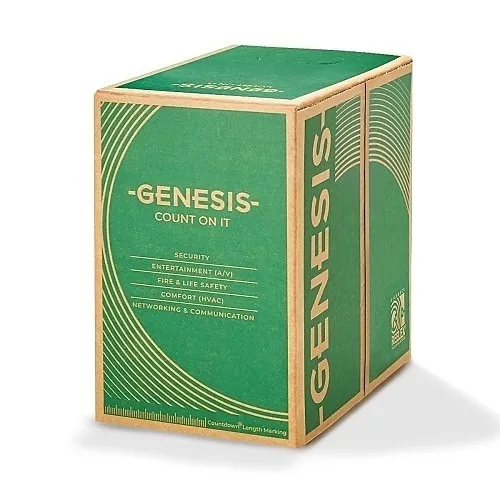

- Install-friendly design: rip cord, countdown length markings and pull box packaging reduce labor and waste on large projects
- Durable, sunlight-resistant construction and RoHS/REACH compliance for long service life in indoor security and monitoring systems
Quick Specifications
- Product Model
- 22025509
- Brand Name
- Genesis
- Package Type
- REELEX Pull Box
- Product Name
- 22025509 - 22 AWG 2C STR Shielded Riser, Gray, 500 FT. Pull Box
Explore the details
Product information
22025509
Overview
When reliable signal integrity matters, the Genesis 22025509 22/2 Stranded Shielded Cable delivers consistent performance for security, surveillance and monitoring systems. This Genesis riser shielded cable combines stranded 22 AWG bare copper conductors with a continuous foil shield and PVC FT4 jacket to reduce electromagnetic interference (EMI) and protect sensitive camera, access control and sensor lines. Packaged in a 500' pull box with countdown length markings and an integrated rip cord, the cable speeds installations and minimizes rework on long vertical riser runs. Rated CMR/FT4 and sunlight resistant, it meets building-code requirements for indoor riser applications while providing mechanical durability and low voltage drop for dependable signal and power delivery. TAA compliant and RoHS/REACH certified, the cable is a practical choice for enterprise security projects and large-scale surveillance deployments. Specify the Genesis 22/2 shielded riser cable for cleaner video, fewer false alarms and simplified installs — ideal for CCTV, access control, intrusion monitoring and other professional security systems. Order now to streamline your next installation.
Features
- Protects sensitive security and surveillance signals with a full foil shield to minimize EMI and crosstalk
- Flexible 22 AWG stranded bare copper conductors deliver reliable low-voltage performance and easier routing in tight installations
- Riser-rated (CMR/FT4) PVC jacket in a 500' pull box enables code-compliant vertical runs and faster jobsite deployment
- Install-friendly design: rip cord, countdown length markings and pull box packaging reduce labor and waste on large projects
- Durable, sunlight-resistant construction and RoHS/REACH compliance for long service life in indoor security and monitoring systems
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | REELEX Pull Box |
| Product Name | 22025509 - 22 AWG 2C STR Shielded Riser, Gray, 500 FT. Pull Box |
| Product Type | Security & Control Cables |
| Product Model | 22025509 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22025509 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | FT4, TC |
| Cable Rating | Riser |
| Conductor Count | 1 |
| Number of Pairs | 1 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 22/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Cable Length | 500.00' |
| Jacket Material | PVC |
| Insulation Material | PP |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 12025509 |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
