Genesis 22061109 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Image of 4
Key Features
- Delivers interference-free signal to protect security, surveillance and monitoring devices
- 22 AWG, 6-conductor stranded design with foil shield for consistent, low-noise performance

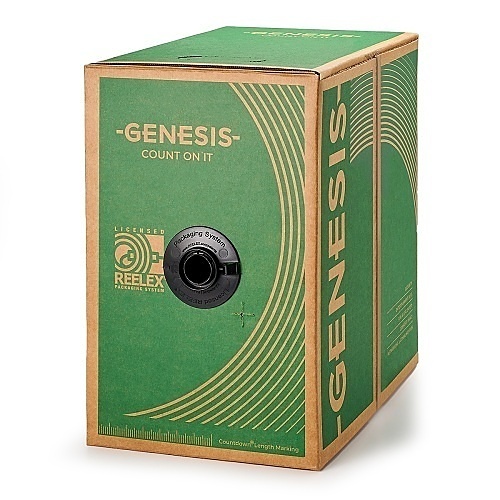

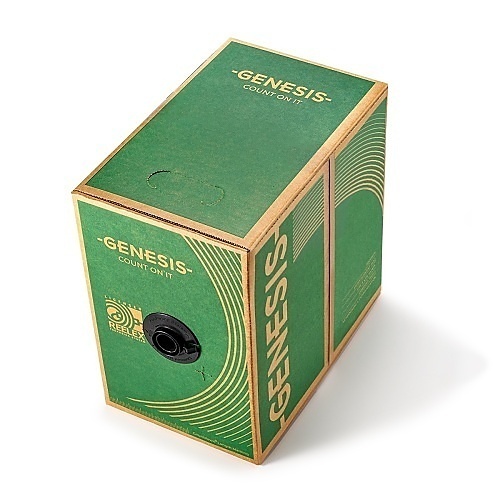

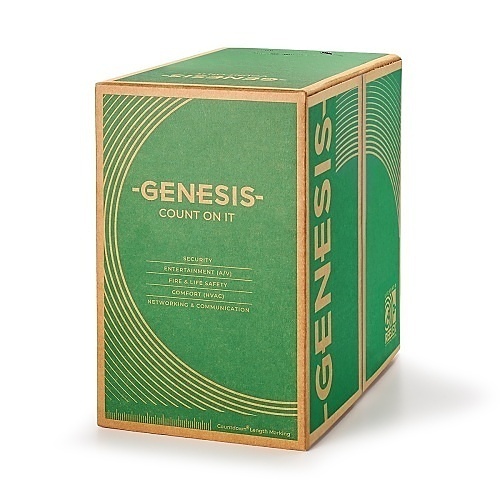

- 1000' pull box reduces installs downtime and limits splices on large projects
- Durable PVC jacket (FT4 riser) with rip cord and countdown markings for faster terminations
- TAA/RoHS compliant and US-made with a 3-year limited warranty for procurement confidence
Quick Specifications
- Product Model
- 22061109
- Brand Name
- Genesis
- Package Type
- REELEX Pull Box
- Product Name
- 22061109 - 22 AWG 6C STR Shielded Riser, Gray, 1000 FT. Pull Box
Explore the details
Product information
22061109
Overview
Keep security and monitoring systems running clean and reliable with the Genesis 22061109 riser shielded cable. Purpose-built for access control, alarm, phone and surveillance installations, this multi-conductor cable minimizes electrical noise with a foil shield and stranded 22 AWG bare copper conductors to preserve signal integrity. Supplied in a 1000' pull box, the 6-conductor (3-pair) 22/6 configuration speeds long runs and reduces the need for intermediate splices on large deployments. The PVC jacket with FT4 riser rating and UV resistance withstands indoor riser pathways while the built-in rip cord and countdown length markings cut termination time on-site. Rated for 300V and a broad temperature range, Genesis shielded cable meets common compliance needs (TAA, RoHS) and includes a 3-year limited warranty for peace of mind. Ideal for integrators specifying dependable cable for security, surveillance and monitoring projects, the Genesis 22061109 offers practical installation features and industry-grade shielding — order a 1000' pull box for your next installation or contact us for volume purchasing.
Features
- Delivers interference-free signal to protect security, surveillance and monitoring devices
- 22 AWG, 6-conductor stranded design with foil shield for consistent, low-noise performance
- 1000' pull box reduces installs downtime and limits splices on large projects
- Durable PVC jacket (FT4 riser) with rip cord and countdown markings for faster terminations
- TAA/RoHS compliant and US-made with a 3-year limited warranty for procurement confidence
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | REELEX Pull Box |
| Product Name | 22061109 - 22 AWG 6C STR Shielded Riser, Gray, 1000 FT. Pull Box |
| Product Type | Security & Control Cables |
| Product Model | 22061109 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22061109 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | FT4, TC |
| Cable Rating | Riser |
| Conductor Count | 3 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 6 |
| Core/Cladding Diameter | 22/6 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 21.40lb |
| Cable Length | 1000.00' |
| Jacket Material | PVC |
| Insulation Material | PP |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 12061109 |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
