Genesis 22141109 18/2 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Image of 4
Key Features
- Reduces electrical noise and interference to protect sensitive security and surveillance signals for reliable system performance
- Stranded 18 AWG bare copper conductors deliver low voltage drop and consistent connectivity for alarms, speakers and intercoms
- Foil shield plus PVC FT4 riser jacket provides code-compliant protection in vertical riser runs and improves signal integrity

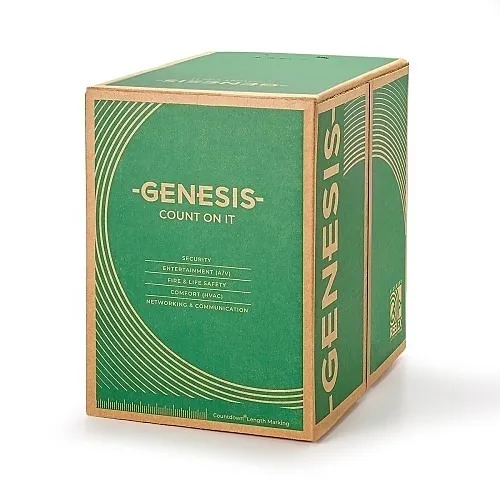

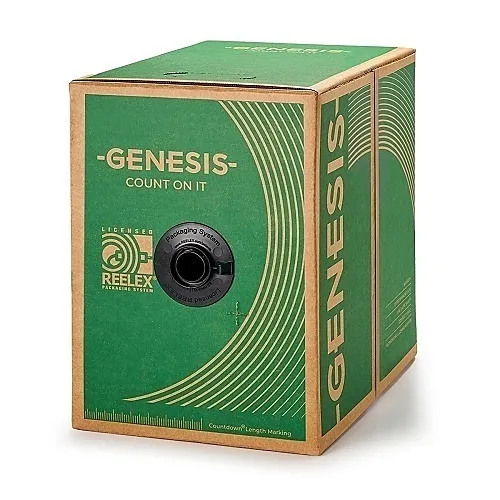

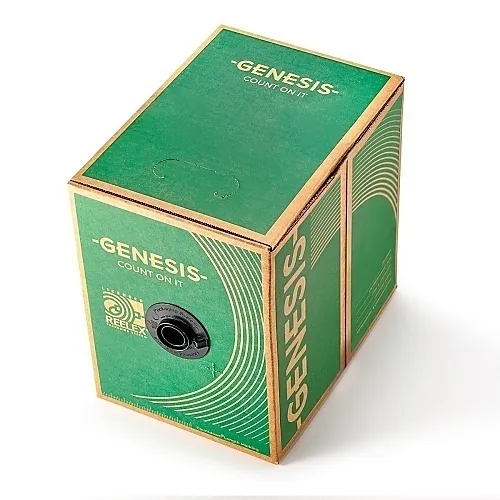

- 1000' pull box with countdown length markings and durable rip cord speeds installation and keeps projects on schedule
- TAA and RoHS compliant, sunlight resistant, and backed by a 3-year limited warranty for long-term peace of mind
Quick Specifications
- Product Model
- 22141109
- Brand Name
- Genesis
- Product Name
- 22141109 - 18 AWG 2C STR Shielded Riser, Gray, 1000 FT. Pull Box
- Product Type
- Access & Security Cable
Explore the details
Product information
22141109
Overview
Ensure clean, dependable signal delivery for security, surveillance and monitoring installations with the Genesis 22141109 riser shielded cable. This Genesis riser shielded cable is engineered to minimize EMI/RFI with a full-coverage foil shield while stranded 18 AWG bare copper conductors provide consistent conductivity and low voltage drop for devices such as burglar alarms, intercoms and speakers. Packaged in a 1000' pull box, the cable includes countdown length markings and a durable rip cord for fast jacket removal and efficient runs through riser pathways. The PVC FT4-rated riser jacket meets vertical shaft requirements and is UV resistant for indoor installations exposed to incidental sunlight. Contractors and integrators will appreciate the combination of performance and installability—shielding to protect sensitive signals, a flexible stranded core for easier pulls, and compliance with TAA and RoHS standards. Ideal for commercial security and AV applications that demand reliable monitoring and audio transmission. Add the Genesis 22141109 18/2 shielded riser cable to your next project to reduce troubleshooting time and keep installations on schedule.
Features
- Reduces electrical noise and interference to protect sensitive security and surveillance signals for reliable system performance
- Stranded 18 AWG bare copper conductors deliver low voltage drop and consistent connectivity for alarms, speakers and intercoms
- Foil shield plus PVC FT4 riser jacket provides code-compliant protection in vertical riser runs and improves signal integrity
- 1000' pull box with countdown length markings and durable rip cord speeds installation and keeps projects on schedule
- TAA and RoHS compliant, sunlight resistant, and backed by a 3-year limited warranty for long-term peace of mind
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 22141109 - 18 AWG 2C STR Shielded Riser, Gray, 1000 FT. Pull Box |
| Product Type | Access & Security Cable |
| Product Model | 22141109 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22141109 |
| Technical Information | |
| Material | Bare Copper |
| Impedance | 36 ohms |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 1 |
| Jacket Material | PVC |
| Number of Pairs | 1 |
| Device Supported | Burglar Alarm, Intercom, Speaker |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/2 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 18.30 lb |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
