Genesis 22151109 18/4 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Image of 4
Key Features
- Minimize signal interference with foil shielding and 18 AWG stranded bare copper to ensure reliable alarm and surveillance performance

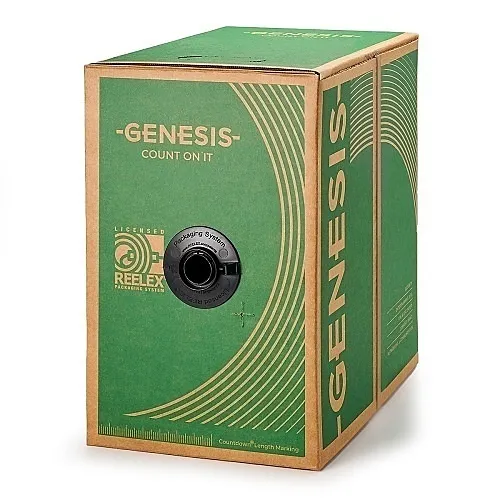

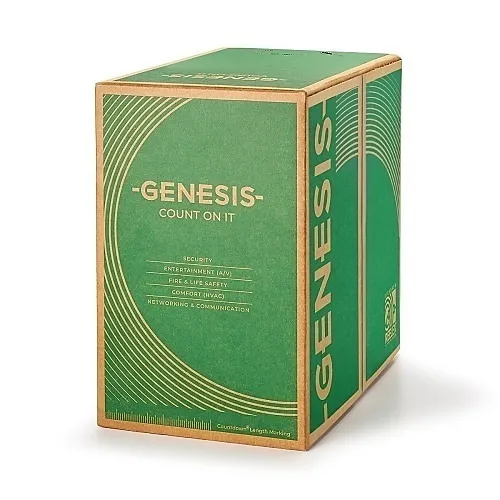

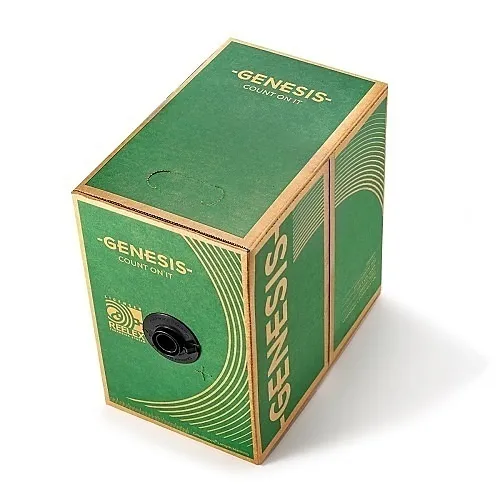

- Built for easy installs: 1000' pull box, durable rip cord and countdown length markings speed deployments in riser pathways
- Riser-rated CMR/FT4 jacket for safe vertical runs between floors in commercial buildings and security closets
- UV- and temperature-resistant construction for consistent monitoring and phone connectivity in varied indoor environments
- Compliance ready: RoHS, REACH and TAA compliance plus a 3-year limited warranty for peace of mind on long-term projects
Quick Specifications
- Product Model
- 22151109
- Brand Name
- Genesis
- Product Name
- 22151109 - 18 AWG 4C STR Shielded Riser, Gray, 1000 FT. Pull Box
- Product Type
- Access & Security Cable
Explore the details
Product information
22151109
Overview
Keep mission-critical security and surveillance signals clean and dependable with the Genesis 22151109 18/4 stranded shielded riser cable. Designed for access control, alarm and monitoring installations, this shielded multi-conductor cable reduces electrical noise to preserve signal integrity over long runs. The cable features stranded 18 AWG bare copper conductors (4 conductors / 2 pairs) with a foil shield and PVC jacket rated CMR/FT4 for riser applications, making it ideal for vertical runs between floors in commercial environments. Supplied in a 1000' pull box with countdown length markings and a durable rip cord, technicians benefit from faster, neater installs and less waste. Rated for 300V and operating from -20 °C to 75 °C, the Genesis cable is RoHS/REACH and TAA compliant for government and enterprise projects. Use it to connect alarm panels, phone systems, surveillance heads and access control devices where interference-free performance matters. Order the Genesis 18/4 shielded riser cable to streamline installations and protect signal quality across your security, surveillance and monitoring networks.
Features
- Minimize signal interference with foil shielding and 18 AWG stranded bare copper to ensure reliable alarm and surveillance performance
- Built for easy installs: 1000' pull box, durable rip cord and countdown length markings speed deployments in riser pathways
- Riser-rated CMR/FT4 jacket for safe vertical runs between floors in commercial buildings and security closets
- UV- and temperature-resistant construction for consistent monitoring and phone connectivity in varied indoor environments
- Compliance ready: RoHS, REACH and TAA compliance plus a 3-year limited warranty for peace of mind on long-term projects
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 22151109 - 18 AWG 4C STR Shielded Riser, Gray, 1000 FT. Pull Box |
| Product Type | Access & Security Cable |
| Product Model | 22151109 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22151109 |
| Technical Information | |
| Material | Bare Copper |
| Impedance | 41 ohms |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 2 |
| Jacket Material | PVC |
| Number of Pairs | 2 |
| Device Supported | Alarm, Phone |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 4 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/4 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Others | |
| Model Number Replaces | 12151109 |
| Physical Characteristics | |
| Color | Gray |
| Weight | 30.80 lb |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
