Genesis 22161009 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
Image of 3
Key Features
- Reduces electrical noise and crosstalk to protect sensitive security and surveillance signals for reliable monitoring

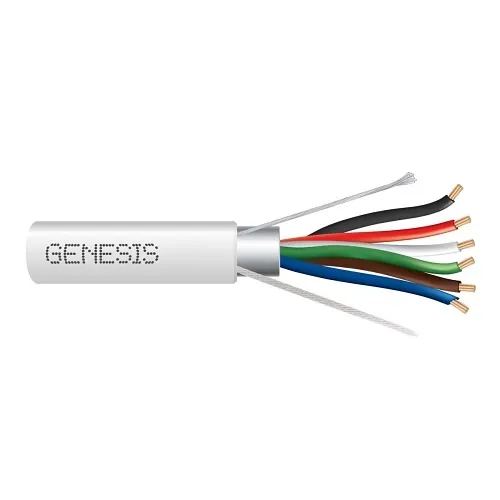

- Stranded 18 AWG bare copper conductors with foil shielding provide consistent conductivity and interference rejection across 6 conductors
- FT4 riser-rated PVC jacket and UV-resistant construction for safe, code-compliant indoor runs and long-term durability
- Installer-friendly features: durable rip cord for fast jacket removal and countdown length markings for efficient jobsite management

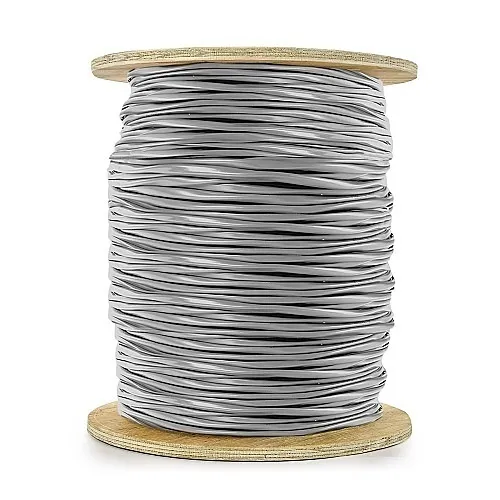

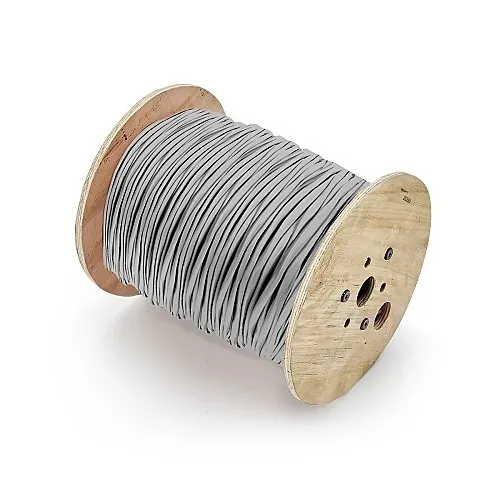

- 1000' reel minimizes splices and downtime for large installations in access control, alarm and phone systems
Quick Specifications
- Product Model
- 22161009
- Brand Name
- Genesis
- Package Type
- Reel/Spool
- Product Name
- 22161009 - 18 AWG 6C STR Shielded Riser, Gray, 1000 FT. Reel
Explore the details
Product information
22161009
Overview
Built for dependable signal integrity in commercial security and low-voltage systems, the Genesis 22161009 18/6 stranded shielded riser cable delivers consistent performance for surveillance, monitoring and access control installations. The stranded bare copper 18 AWG conductors and full foil shield reduce electrical noise and EMI, helping cameras, alarms and phone circuits maintain clear, uninterrupted signals. Supplied on a 1000' reel, this Genesis riser shielded cable simplifies large runs and reduces the need for splicing.
Designed to meet building code and installer needs, the cable features an FT4 riser-rated PVC jacket, sunlight-resistant construction and a durable rip cord for fast jacket stripping. Countdown length markings let technicians quickly track remaining footage on the reel. Rated for 300 V and RoHS-compliant, it supports reliable performance across commercial indoor environments.
Choose the Genesis 22161009 for cleaner signal paths and faster deployments in security, surveillance and monitoring projects. Order now to streamline installations and protect sensitive low-voltage systems.
Features
- Reduces electrical noise and crosstalk to protect sensitive security and surveillance signals for reliable monitoring
- Stranded 18 AWG bare copper conductors with foil shielding provide consistent conductivity and interference rejection across 6 conductors
- FT4 riser-rated PVC jacket and UV-resistant construction for safe, code-compliant indoor runs and long-term durability
- Installer-friendly features: durable rip cord for fast jacket removal and countdown length markings for efficient jobsite management
- 1000' reel minimizes splices and downtime for large installations in access control, alarm and phone systems
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | Reel/Spool |
| Product Name | 22161009 - 18 AWG 6C STR Shielded Riser, Gray, 1000 FT. Reel |
| Product Type | Security & Control Cables |
| Product Model | 22161009 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22161009 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | FT4, TC |
| Cable Rating | Riser |
| Conductor Count | 3 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 6 |
| Core/Cladding Diameter | 18/6 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 41.10lb |
| Cable Length | 1000.00' |
| Jacket Material | PVC |
| Insulation Material | PP |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | 12161009 |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
